TP-Link EAP653 AX3000 Wireless Dual-Band Access Point

TP-Link EAP653 AX3000 Wireless Dual-Band Access Point

Regular price $148.99 USD
Regular price Sale price $148.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

TP-Link EAP653 AX3000 Wireless Dual-Band Access Point

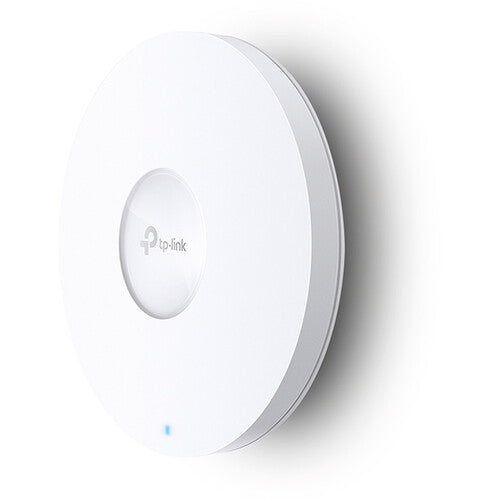

AX3000 Ceiling Mount WiFi 6 Access Point

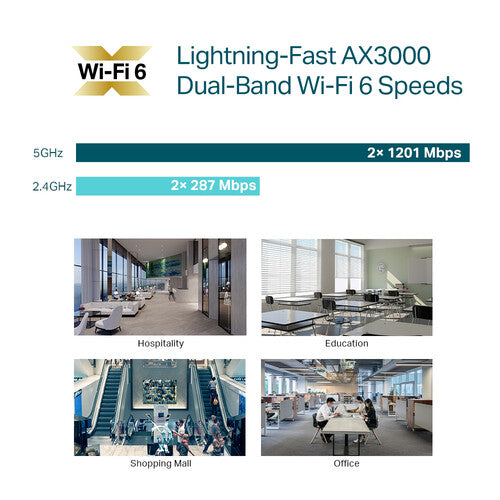

Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.†

High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

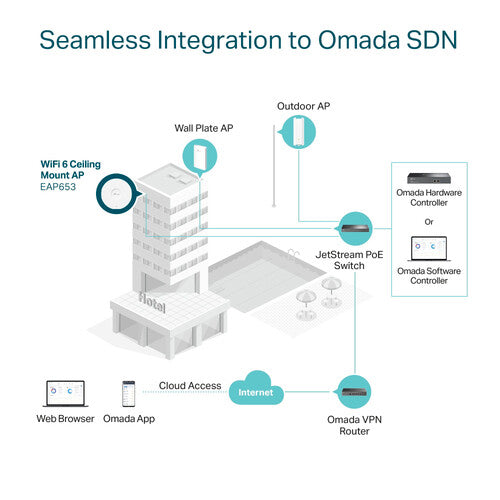

Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.

160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.‡

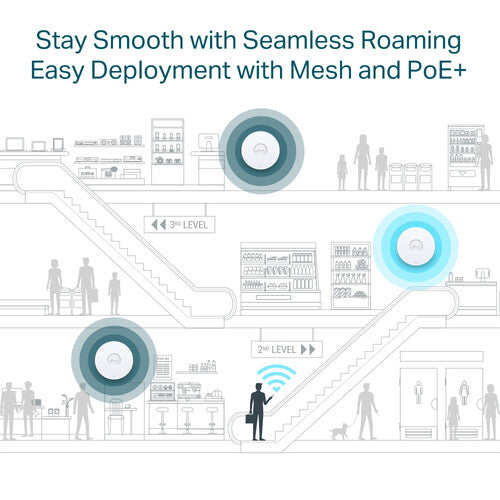

Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.§


Note:
†Maximum wireless signal rates are the physical rates derived from IEEE Standard 802.11 specifications. Actual wireless data throughput and wireless coverage are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead, and 3) client limitations, including rated performance, location, connection, quality, and client condition.

‡Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, require clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band. It may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.

§Omada Mesh, Seamless Roaming, Captive Portal, and Cloud Access require the use of Omada SDN controllers. Go to https://www.tp-link.com/en/omada-mesh/product-list/ to find all the models supported by Omada mesh technology to find all the models supported by Omada mesh technology, and refer to the User Guides of Omada SDN controllers for configuration methods.


HARDWARE FEATURES

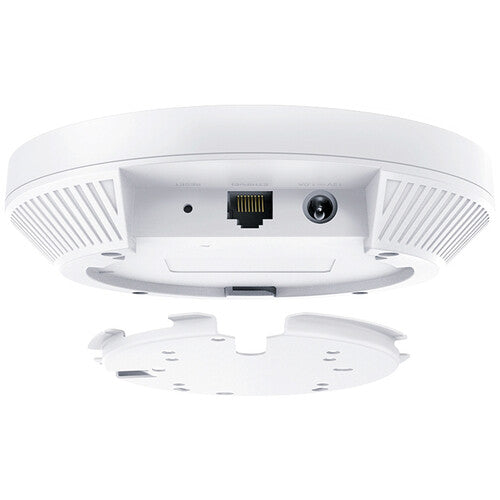

Interface
1x Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE)
Button
Reset
Power Supply
802.3at PoE
12V DC
(EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC).
Note: DC adapter is not included in the package, and is sold separately.
Power Consumption
EU: 13.5 W
US: 14.7 W
Antenna Type
Internal Omni
2.4 GHz: 2x 4 dBi
5 GHz: 2x 5 dBi

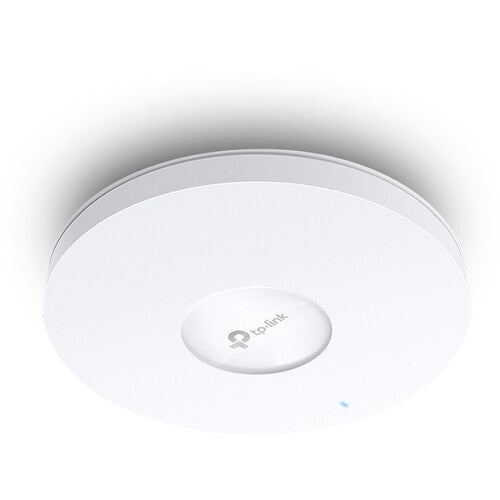

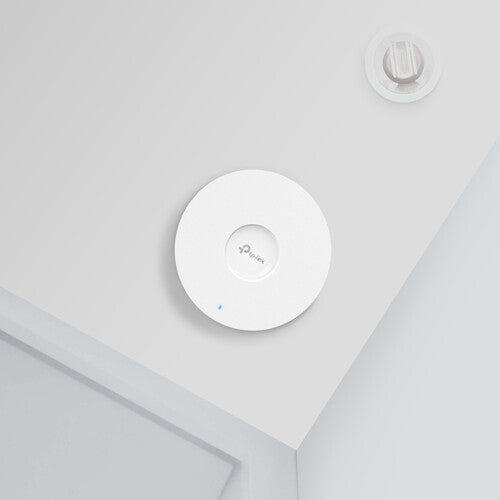

Mounting
Ceiling /Wall Mounting (Kits included)
Junction Box Mounting
WIRELESS FEATURES
Wireless Standards
IEEE 802.11ax/ac/n/g/b/a
Frequency
2.4 GHz and 5 GHz
Signal Rate
5 GHz: Up to 2402 Mbps
2.4 GHz: Up to 574 Mbps
Wireless Functions
1024-QAM
4x Longer OFDM Symbol
OFDMA
Multiple SSIDs (Up to 16 SSIDs, 8 for each band)
Enable/Disable Wireless Radio
Automatic Channel Assignment
Transmit Power Control (Adjust Transmit Power on dBm)
QoS(WMM)
MU-MIMO
HE160 (160 MHz Bandwidth)
Seamless Roaming
Omada Mesh
Band Steering
Load Balance
Airtime Fairness
Beamforming
Rate Limit
Reboot Schedule
Wireless Schedule
Wireless Statistics based on SSID/AP/Client
Wireless Security
Captive Portal Authentication
Access Control
Wireless Mac Address Filtering
Wireless Isolation Between Clients
SSID to VLAN Mapping
Rogue AP Detection
802.1X Support
WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise
Transmission Power
CE:
less than 20 dBm(2.4 GHz, EIRP)
less than 23 dBm(5 GHz, Band1 and Band2, EIRP)
less than 30 dBm(5 GHz, Band3, EIRP)
FCC:
less than 25 dBm (2.4 GHz)
less than 25 dBm (5 GHz)
MANAGEMENT
Omada App
Yes
Centralized Management
Omada Hardware Controller (OC300)
Omada Hardware Controller (OC200)
Omada Software Controller
Omada Cloud-Based Controller
Cloud Access
Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller)
Email Alerts
Yes
LED ON/OFF Control
Yes
Management MAC Access Control
Yes
SNMP
v1, v2c, v3
System Logging Local/Remote Syslog
Local/Remote Syslog
