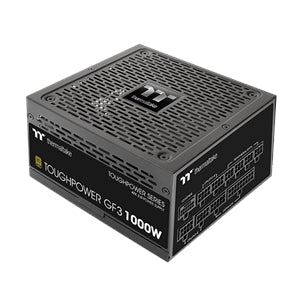

Thermaltake Toughpower GF3 1000W Power Supply

Thermaltake Toughpower GF3 1000W Power Supply

Toughpower GF3 1000W Gold - TT Premium Edition

PCIe Gen 5.0 Ready! Designed with a native PCIe 12+4pin modular connector, the Toughpower GF3 series is built for the next-gen PCIe 5.0 graphics cards and is compatible with Intel ATX 3.0 specifications. The fully modular Toughpower GF3 series comes in 1650W, 1350W, 1200W, 1000W, 850W and 750W and is built to deliver 80 PLUS Gold efficiency. Aimed at providing the best performance, the Toughpower GF3 1000W includes all the critical features such as < 30mV low ripple noise design, extremely strict voltage regulation < +/-2%, hold up time> 17 milliseconds and comes with 100% high quality Japanese capacitors, and other premium components to help deliver continuous and stable power.

Fully Compatible With Intel PSDG ATX 3.0 Specifications

Toughpower GF3 series is fully compatible with Intel ATX 3.0 Specifications which supports up to 200% power excursion, reaches 70% low load efficiency and complies with required power supply timing standards. The GF3 series can sustain up to 3x GPU power excursion and 2x total power excursion.

Made to Comply with the Latest Graphics Cards

As the power consumption of graphics cards has increased, so has their demand for power. The GF3 series is designed to support NVIDIA and AMD graphics cards, ready to supply the graphics card according to their different ways of connections.

PCIe Gen 5.0 Ready

Toughpower GF3 1000W Gold comes with a 16pin connector to offer powerful and stable performance allowing the PSU to run next-generation GPUs naturally.

Please follow the recommended power requirements from the GPU manufactures before using the 12VHPWR cable.

Ultra Quiet Smart Zero Fan

Designed with our Smart Zero Fan, the fan will not spin until the load exceeds 30% of the power supply, minimizing the fan noise.

WATTS
1000W
MODEL
TPD-1000AH3FCG
MAX. OUTPUT CAPACITY
1000W
COLOR
Black
PFC (POWER FACTOR CORRECTION)
Active PFC
POWER GOOD SIGNAL
100-150 msec
HOLD UP TIME
More than 17msec at 100% of full load
INPUT CURRENT
13.0A / 6.5A
INPUT FREQUENCY RANGE
50/60Hz
INPUT VOLTAGE
100V - 240V
OPERATING TEMPERATURE
0^oC to + 40^oC
OPERATING HUMIDITY
20% to 90%,non-condensing
STORAGE TEMPERATURE
-20^oC to + 70^oC
STORAGE HUMIDITY
5% to 95%, non-condensing
COOLING SYSTEM
13.5cm fluid bearing fan
EFFICIENCY
Meet 80 PLUSGold at 115Vac input.
MTBF
100,000 hrs minimum
SAFETY APPROVAL
CE/UKCA/cTUVus/TV/FCC/IC/BSMI/EAC/CB/CCC
PCI-E 6+2PIN
PCIe 6+2Pin X 4
PCIe 12+4Pin X 1
PROTECTION
OCP, OVP, UVP, OPP, SCP, OTP
