SIIG USB-C Triple Video MST Docking Station with PD

SIIG USB-C Triple Video MST Docking Station with PD

Regular price $202.99 USD
Regular price Sale price $202.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

SIIG USB-C Triple Video MST Docking Station with PD


Advanced USB-C docking station adds Triple monitors of DisplayPort & HDMI, one USB-A 3.1 Gen-1 5Gbps with 5V/1.5A fast charging, three USB-A 3.1 Gen-1 5Gbps, one SD 3.0 & Micro SD (TF) 3.0 memory card slots, one Gigabit Ethernet port, a 3.5 mm headset jack for 2-Ch. stereo audio & MIC, and PD up to 65W to Windows computers


Features

Triple displays (DisplayPort/HDMI) with MST technology, 65W PD, and multiple connections by a single USB-C with DP 1.4 Alt mode input to build a productivity workstation


Video Resolution

Supports single 4K (3840x2160, 4:2:0) @60Hz Ultra HD video resolution or Dual 2K (2560x1440) @60Hz or triple 1080p (1920x1080) @60Hz displays with DP 1.4 alt mode and 5.1-ch. surround sound


3 Display Modes

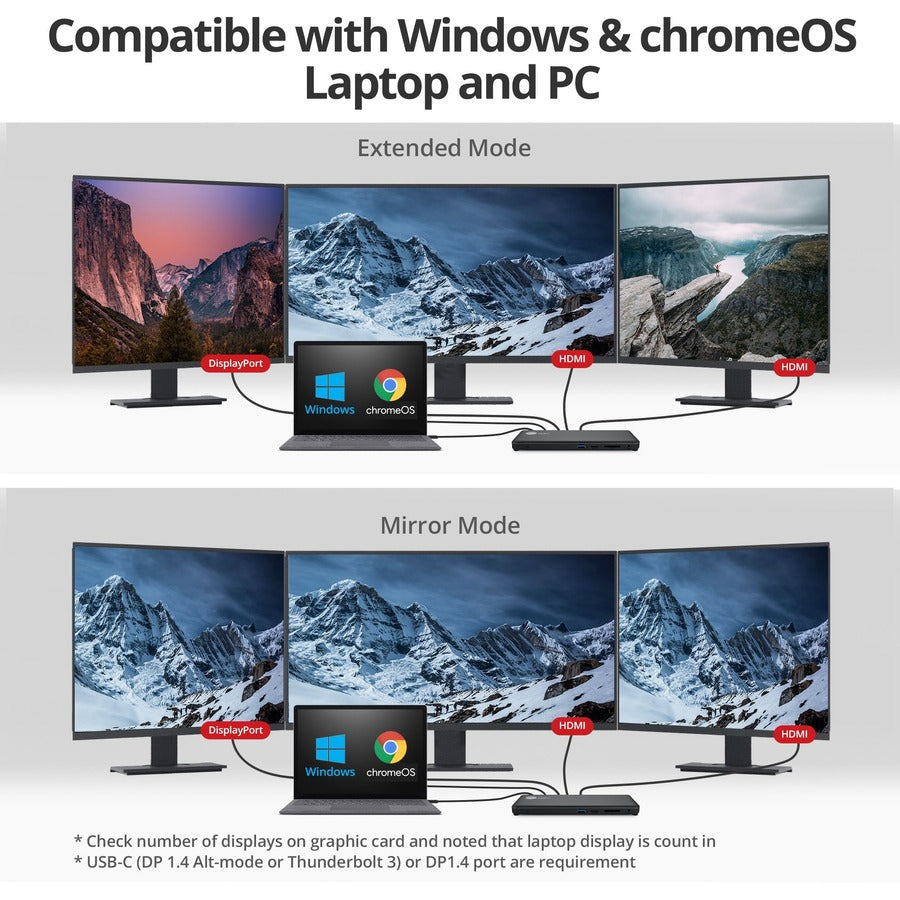

Allows the use of Multi-Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode, to HDTV or projector for perfect visual displays

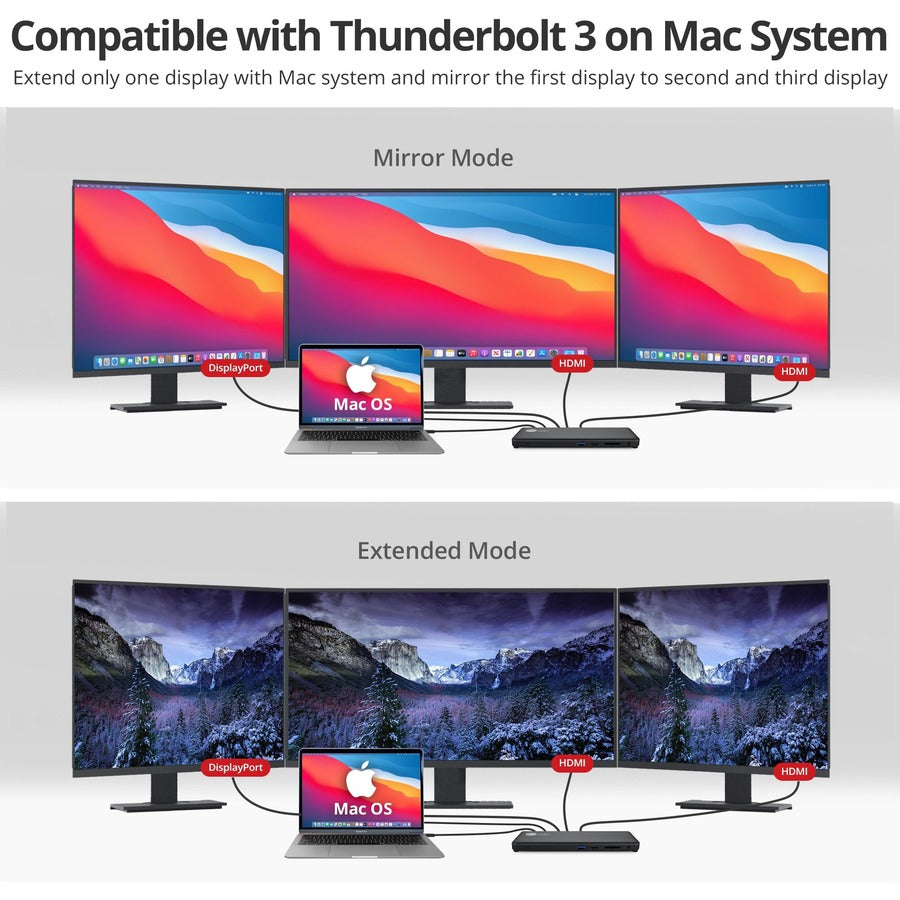

* Note: macOS® only supports Mirror mode


Multiple Connectivity Ports

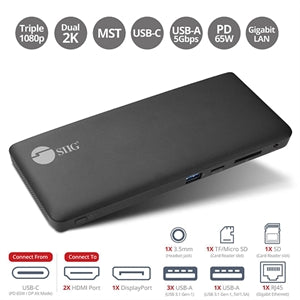

Adds one USB-C port with DP 1.4 Alt mode and PD 65W (Host), one DisplayPort video output port with MST technology, two HDMI video output ports with MST technology, one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging port, three USB-A 3.2 Gen 1 5Gpbs, one Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 3.0 memory card slot, one Micro SD (TF) 3.0 memory card slot, one DC 20V/5A power jack, and one power on/off button.


USB-A 3.2 Data Transfer

Provides one USB-A 3.2 Gen 1 5Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices

Hardware
Chipset
VMM5310 + RTL8153
Compliant with Universal Serial Bus 3.1, 3.0, and 2.0 specifications
Software
OS Compatibility
Windows 11, mac OS 12, or new
Note: macOS 10.13.4 to 10.13.6 is not supported
Video
DisplayPort
x1, with MST technology, 4K at 60Hz
HDMI
x2, with MST technology, 4K at 60Hz
Display Mode
Mirror, Extended, and Primary video modes (Note: MacOS only supports Mirror mode)
USB
USB-A 3.2 Gen 1
x1, data transfer rate up to 5Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x3, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
5.1 channel surround sound from DisplayPort/HDMI output
2-channel stereo audio and microphone from a 3.5mm headset jack
Memory Card Reader
SD 3.0 (UHS-I) slot
data transfer rate up to 104 MB/s
Micro SD/TF 3.0 (UHS-I) slot
data transfer rate up to 104 MB/s
Power Adapter
Power Delivery 3.0
up to 65W via USB-C port (Host)
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 20V/5A, UL listed: E132068/ Level: VI
Ethernet
Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps
Supports IEEE 802.3x Full Duplex flow operation, crossover detection, and auto-correction
Compatible with IEEE 802.3, 802.3u
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS 2.0, REACH

Country of Origin
China
