SIIG USB-C Quad Hybrid 4K Video Docking Station with 100W PD

SIIG USB-C Quad Hybrid 4K Video Docking Station with 100W PD

Regular price $364.99 USD
Regular price Sale price $364.99 USD
Sale Sold out
Shipping calculated at checkout.

SIIG USB-C Quad Hybrid 4K Video Docking Station with 100W PD


Advanced Hybrid USB C docking station Quad monitor with 4x HDMI or 4x DisplayPort, one USB-A 10Gbps, three USB-A 5Gbps, one USB-C PD 30W, one 2.5G Ethernet, one SD 4.0 card slot, one Micro SD (TF) 4.0 card slot, one stereo audio/microphone, and PD up to 100W for Windows and Mac

Features
Make the powerful visual solution with 4 Hybrid displays (DisplayPort/HDMI) or 5K displays (2x DisplayPort) and multiple connections for increased productivity.

5K/4K Video Resolution

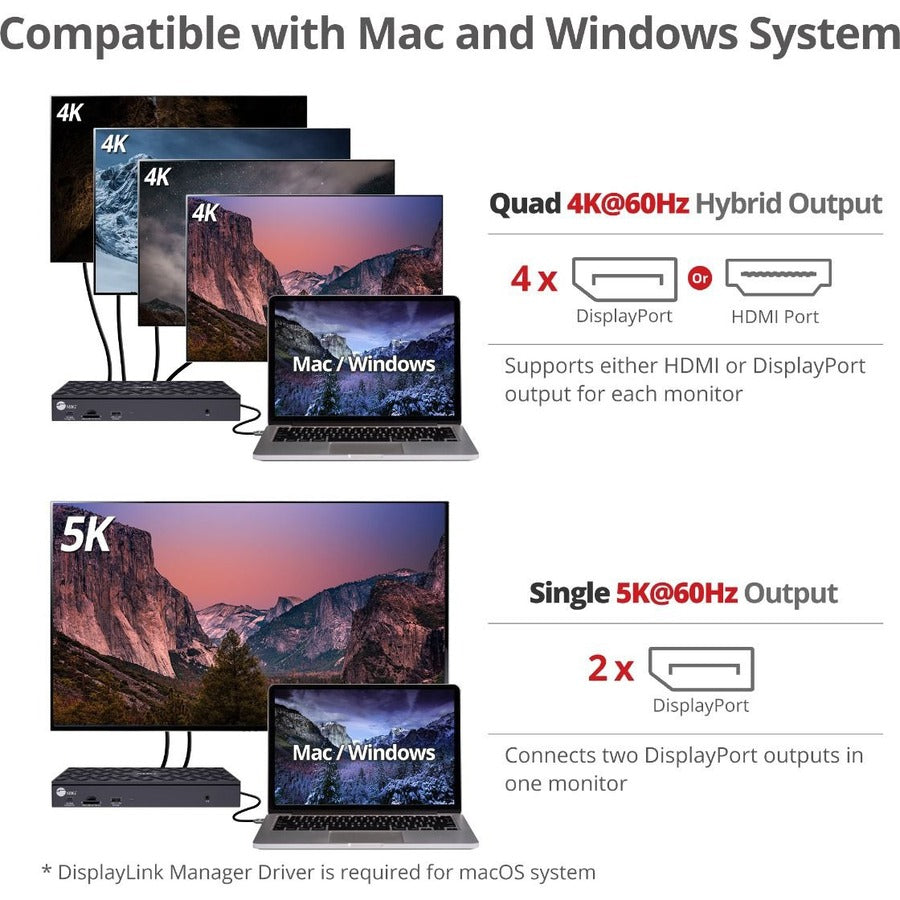

Supports one single 5K (5120x2880) @60Hz display via 2 DisplayPort ports, quad 4K (3840x2160) @60Hz Ultra HD displays via DP/HDMI or DP/DP or HDMI/HDMI with DisplayLink IC, and 5.1-ch surround sound.

Multiple Connectivity Ports
Adds one USB-C port with DP Alt mode and PD 100W (Host)*, four DisplayPort video output ports (with DisplayLink controlled), four HDMI video output ports (with DisplayLink controlled), one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging port, one USB-A 3.2 Gen 1 5Gpbs, one USB-C PD 30W charging, one 2.5G Gigabit Ethernet, one 3.5mm headset jack (stereo audio and microphone), one SD 4.0 UHS-II memory card slot, one Micro SD (TF) 4.0 UHS-II memory card slot, one security lock, one power on/off button, and one DC 20V/9A power jack

* Note: PD charging will not work if you connect a USB-A laptop/notebook

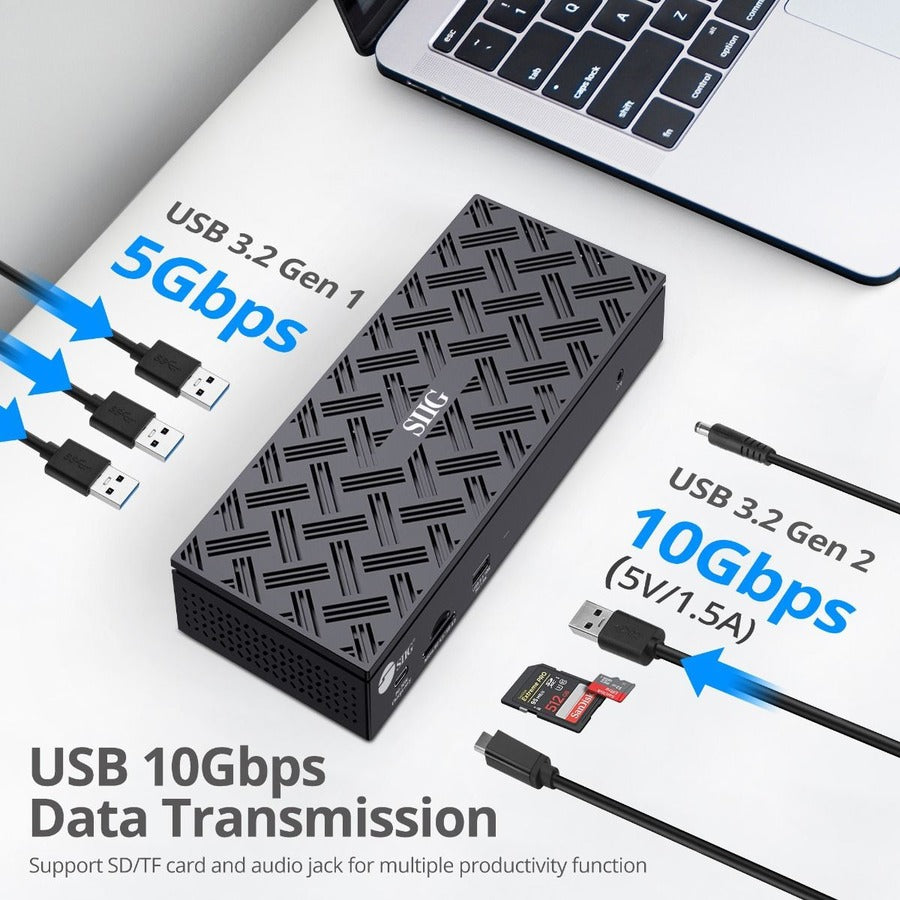

USB-A 3.2 Data Transfer
Provides one USB-A 3.2 Gen 2 10Gbps with 5V/1.5A charging and three USB-A 3.2 Gen 1 5Gbps ports to enhance the performance and transfer capability of USB devices

Memory Card Slots
Compatible with SD 4.0 UHS-II and Micro SD (TF) 4.0 UHS-II memory card and data transfer rate up to 312MB

Hardware
Chipset
DL-6910
Compliant with Universal Serial Bus 3.2, 3.1, 3.0, and 2.0 specification
Software
OS Compatibility
Windows 11, mac OS 12, or new
Note: macOS 10.13.4 to 10.13.6 is not supported
Video
HDMI with DisplayLink IC
x4, 4K at 60Hz
DisplayPort with DisplayLink IC
x4, 4K at 60Hz
Note: Connect 2 DisplayPort output ports to a single 5K TV/monitor
USB
USB-A 3.2 Gen 2
x1, data transfer rate up to 10Gbps, 5V/1.5A charging
USB-A 3.2 Gen 1
x3, data transfer rate up to 5Gbps, 5V/900mA
Fast Charging Port
Yes
Audio
5.1 channel surround sound from DisplayPort/HDMI output
2-channel stereo audio from a 3.5mm audio jack and microphone
Power
Power Delivery 3.0
up to 100W via USB-C port (Host) and up to 30W via USB-C port (source)
Power Adapter
Input: AC 100-240V/50-60Hz, Output: DC 20V/9A, UL Listed: E355343 / Level: VI
Ethernet
Data transfer rate: up to 2.5G (2500Mbps), backward compatible with 10/100/1000Mbps
Environmental conditions
Operating temperature
32 to 104 degrees F
Storage temperature
-4 to 140 degrees F
Relative humidity:
10% to 90% RH (non-condensing)
Product Info
Color
Black
Housing material
ABS
Certifications/Standards
FCC, CE, RoHS 2.0, REACH

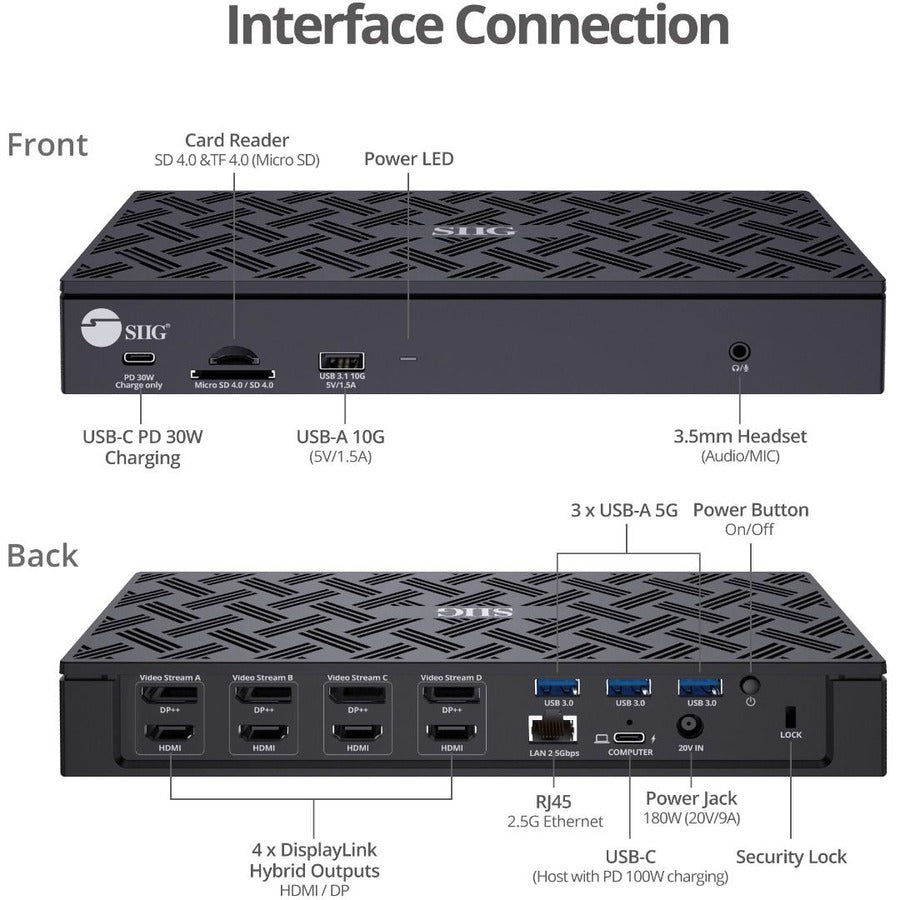

Interface
Input:
1x 24-pin, USB-C with PD 100W, Female (Host)
1x DC power jack, 20V/9A
1x Power button, on/off
Output:
4x 19-pin, HDMI with DisplayLink IC, Female
4x 20-pin, DisplayPort with DisplayLink IC, Female
3x 9-pin, USB-A 3.2 Gen-1, 5Gbps, Female
1x 9-pin, USB-A 3.2 Gen-2, 10Gbps, 5V/1.5A, Female
1x 24-pin, USB-C charging, PD only (30W)
1x 8-pin, 2.5G Ethernet, RJ45
1x SD 4.0 memory card reader slot, UHS-II, up to 312MB
1x Micro SD/TF 4.0 memory card reader slot, UHS-II, up to 312MB
1x 3.5mm, Headset jack, stereo audio, and mic
1x Security lock
System Requirements
Desktop or Laptop with an available USB-C/A or Thunderbolt 3 port
Windows 11 (32-/64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit)
macOS 12 / 11 / 10.13 to 10.15
Note:
- macOS 10.13.4 to 10.13.6 is not supported, its recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- PD charging doesn't work if you use a USB-A laptop/ notebook

Country of Origin
China
