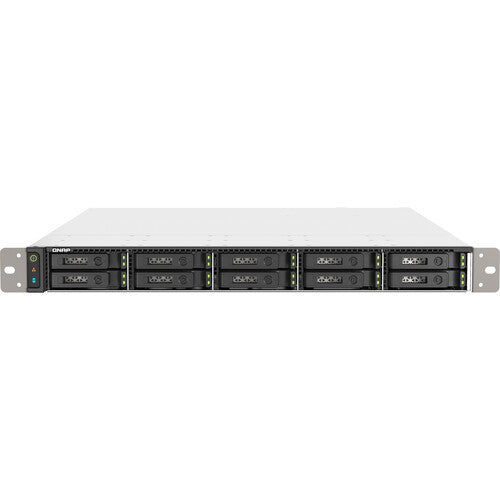

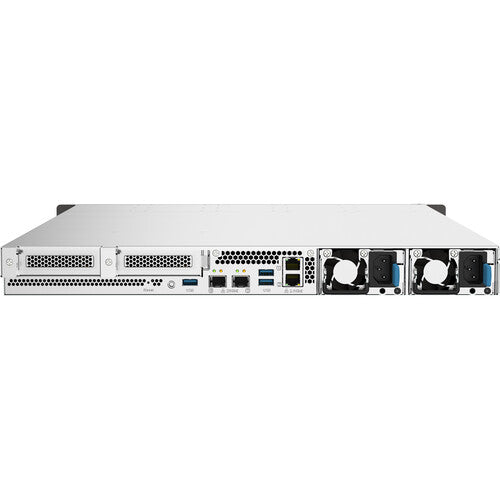

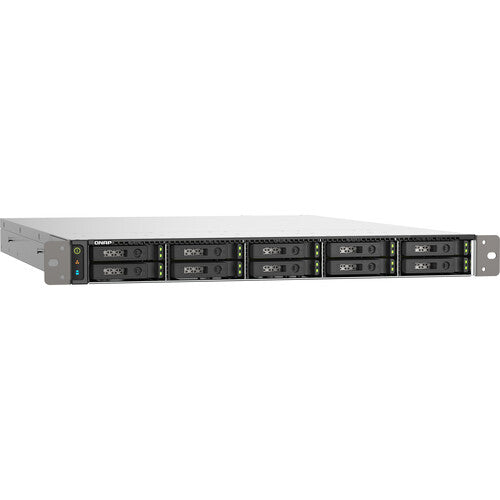

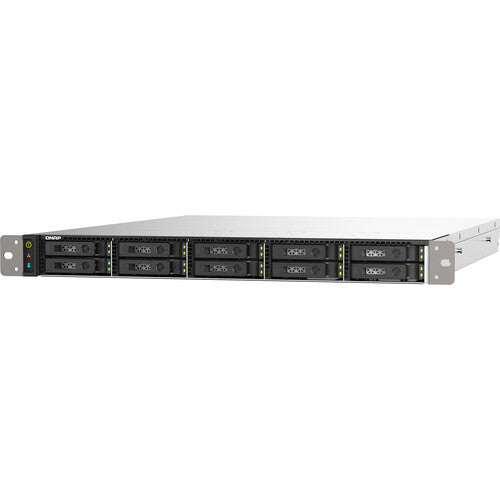

QNAP TS-h1090FU-7302P-128G-US 10-Bay 1U NAS System w/o Rail Kit

QNAP Network Attached Storage TS-h1090FU-7302P-128G-US 1U 10 Bay EPYC7302P 128GB without Rail Kit

The TS-h1090FU high-density NVMe all-flash storage is designed for providing extreme performance with high cost-efficiency. Featuring ten U.2 NVMe Gen 4 x4 SSD bays, the TS-h1090FU delivers remarkable random read/write IOPS with ultra-low latency. The ZFS-based QuTS hero operating system supports inline data deduplication and compression for reducing I/O and SSD storage consumption, which significantly extends SSD lifespan with a higher price-performance ratio for all-flash storage arrays. Ideal for I/O-intensive and latency-sensitive applications, the TS-h1090FU eliminates productivity bottlenecks in virtualization, modern data centers, multimedia storage, and mission-critical backup/restore tasks－suitable for Tier 2 storage workloads with an ideal low cost-per-GB.


High-density all flash storage
Space-efficient with only 58cm depth compared to 80+cm depth in a 1U rackmount server; accommodates ten U.2 NVMe PCIe Gen 4 or SATA 6Gb/s SSD drive bays.

Optimized SSD performance and lifespan
Inline data deduplication and compression, Pool Over-provisioning, and TRIM maximize SSD performance and lifespan.

25GbE future-proof connectivity
Accelerates virtualization, intensive file access, media transfer, and large backup/restoration tasks.

High-speed PCIe Gen 4 slots
Allows installing 10/25/40/100GbE adapters, QM2 cards, or Fibre Channel cards to increase application performance.

Virtualization applications
Supports virtualization storage, virtual machines with SR-IOV support, and containerized apps.

Flexible storage expansion
Scalable design to grow with your business by connecting QNAP’s economical expansion enclosures.

SPECIFICATIONS

CPU
AMD EPYC^TM 7302P 16-core/32-thread processor, up to 3.3 GHz
CPU Architecture
64-bit x86
Encryption Engine
Yes (AES-NI)
System Memory
128 GB RDIMM DDR4 ECC (8 x 16 GB)
Maximum Memory
1 TB+ (12 x 128 GB)
Memory Slot
12 x RDIMM DDR4
Flash Memory
5GB (Dual boot OS protection)
Drive Bay
10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps
Drive Compatibility
2.5-inch U.2 NVMe Gen 4 x4 solid state drives
2.5-inch SATA solid state drives
Hot-swappable
Yes
SSD Cache Acceleration Support
Yes
SR-IOV
Yes
2.5 Gigabit Ethernet Port (2.5G/1G/100M)
2 (2.5G/1G/100M/10M)
25 Gigabit Ethernet Port
2 x 25GbE SFP28 SmartNIC port
Wake on LAN (WOL)
Yes
Jumbo Frame
Yes
PCIe Slot
2
Slot 1: PCIe Gen4 x16
Slot 2: PCIe Gen4 x16
USB 3.2 Gen 1 port
3
Form Factor
Rackmount
LED Indicators
Disk, Status, LAN, storage expansion port status
