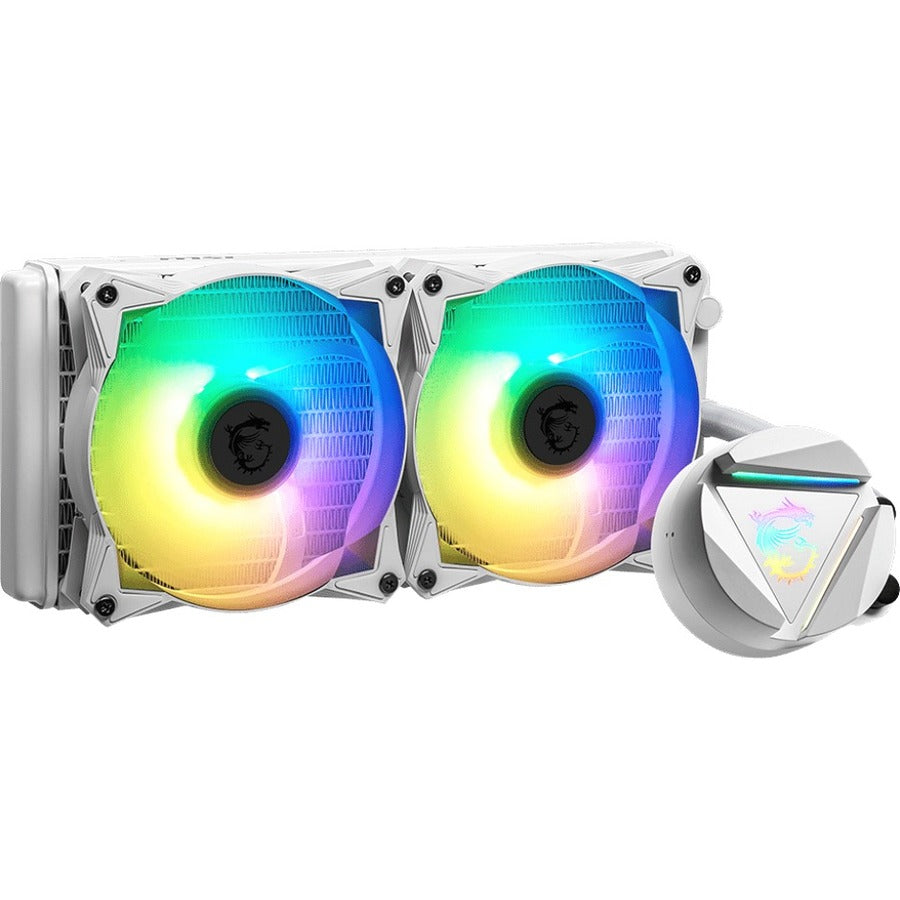

MSI MAG Core Liquid 240R V2 White

MSI MAG Core Liquid 240R V2 White

Regular price $146.99 USD
Regular price Sale price $146.99 USD
Sale Sold out
Shipping calculated at checkout.

MSI MAG Core Liquid 240R V2 White

AIO Liquid CPU Cooler, 240mm Radiator, Dual 120mm PWN Fans, ARGB lighting controled by software


NEXT-GEN AMD SOCKET AM5 SUPPORT

AMD Socket AM5 (LGA 1718) is the next-generation socket designed to support next-generation AMD Ryzen™ 7000 desktop processors (Zen 4). AMD Socket AM5 uses the same liquid cooler bracket as Socket AM4. This allows you to upgrade to and enjoy AM5 without buying a new liquid cooler.


POWERED BY MSI

Create and establish the most powerful setup with Powered by MSI products, including PC case, motherboard, liquid cooler, graphics card, and power supply unit.

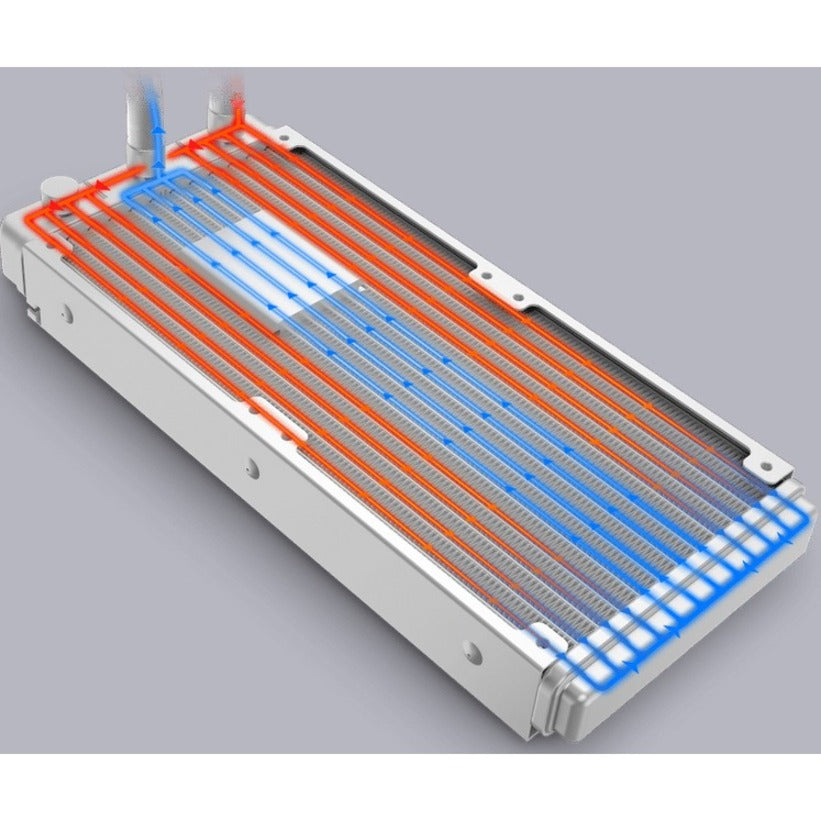

HIGH THERMAL DISSIPATION

A split pathway through the radiator rapidly dissipates heat, cooled liquid is then pumped back into the loop.


LGA 1700 COMPATIBLE

The MAG CORELIQUID V2 Series liquid cooler provides out of box support for LGA 1700.


MORE SILENCE THAN EXPECTED

MAG CORELIQUID 240R V2 WHITE's noise level is significantly lower than that of competitor's by 10%


PUMP MOTOR RESONANCE ELIMINATION

A durable three phase motor at the core of the pump generates minimal vibrations for long-lasting operation.

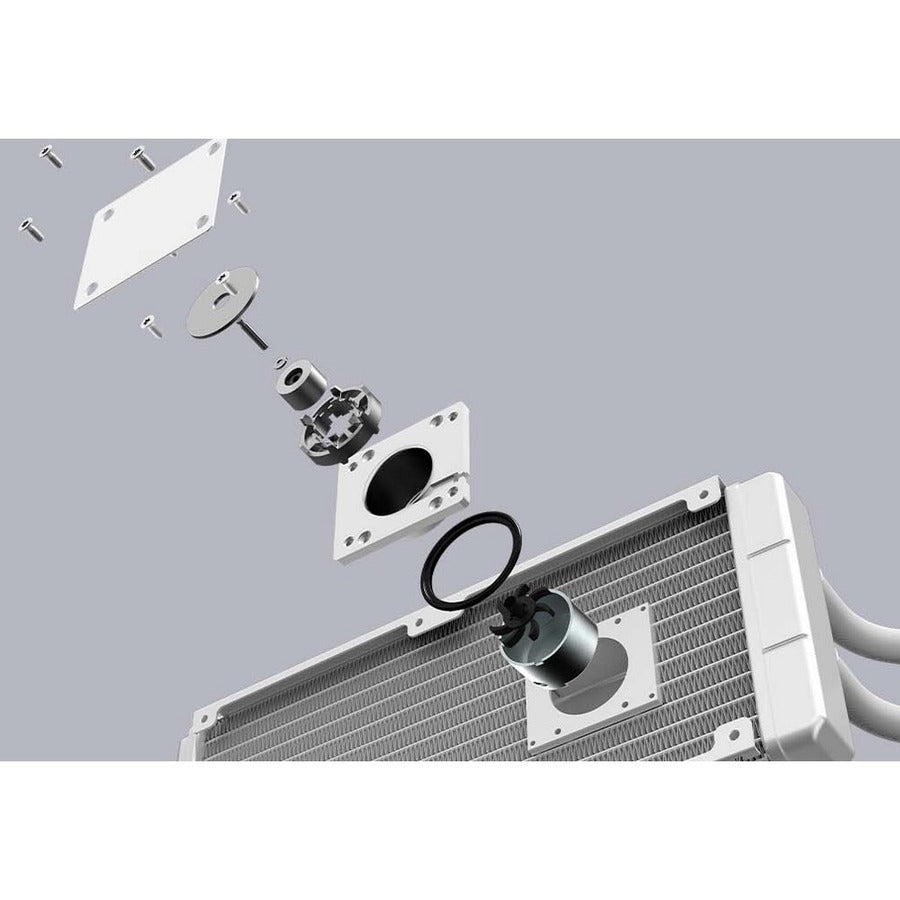

RADIATOR PUMP DESIGN

The pump has been integrated into the radiator for sound dampening and noise reduction. Additionally, placing the pump into the radiator also increases the pump's life expectancy by moving it away from the heat source.


EXTENSIVE COMPATIBILITY

Robust yet built for flexibility, MAG CORELIQUID has been designed with a secure installation bundle with compatibility on a number of Intel and AMD motherboards.

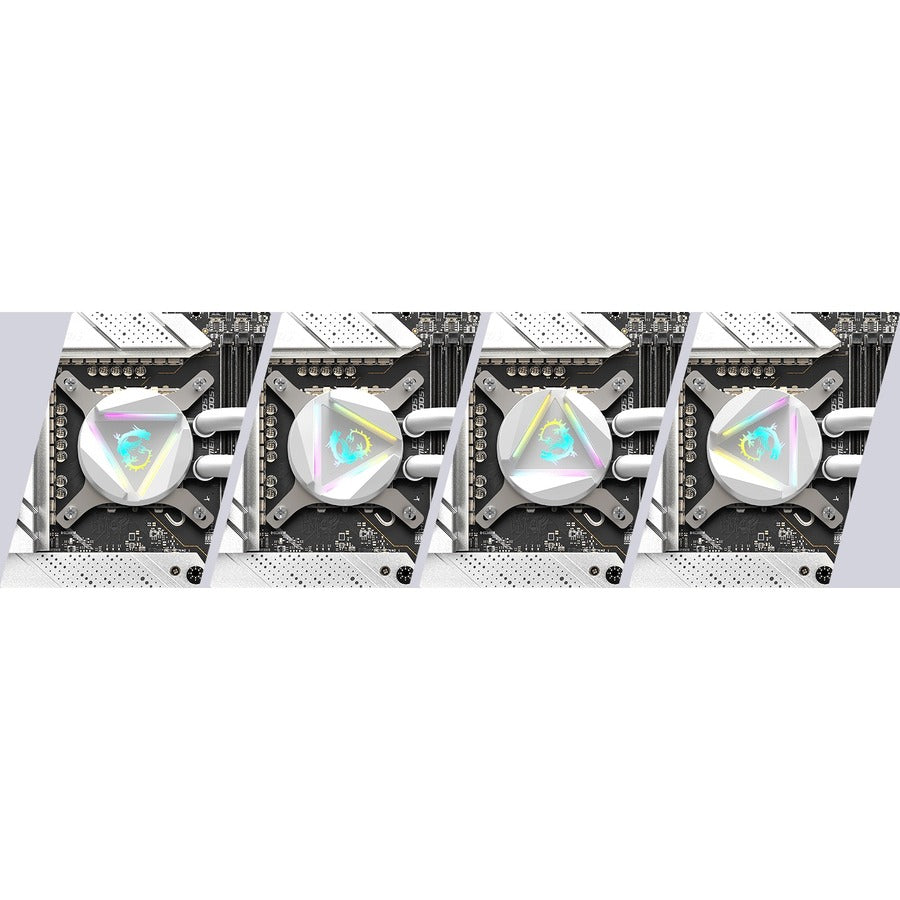

ROTATABLE BLOCKHEAD

Mount the cold plate at any orientation, turn the blockhead up to 270 degrees, and keep it upright.


Product Type:   Cooling Fan/Radiator/Water Block/Pump


Product Overview

UPC Code: 824142273661
Manufacturer Warranty: 3 Year
Returns Allowed: yes
Return Period (Days): 14
Add'l Return Info: Past Exch-Call MSI 626-913-0828 x159
Country of Origin: CHINA

General Information

Manufacturer:   MSI
Manufacturer Part Number:   CL240RV2WT
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Line:   MAG CORELIQUID
Product Name:   MAG CORELIQUID 240R V2 WHITE

Fan Information

Number of Fans:   2
Fan Bearing Type:   Dual Ball Bearing
Fan Speed (Min):   500 rpm
Fan Speed (Max):   2000 rpm
Minimum Airflow:   161.8 gal/min
Maximum Airflow:   588.9 gal/min
Noise Levels (A-Weighted):   34.3 dB(A)
Fan Life:   8.0 Year
LED Color:   ARGB
Maximum Air Pressure:   2.39mmH2O

Heatsink Information

Cooler Type:   Liquid Cooler
Compatible Intel Socket:   B LGA-1366
Compatible Intel Socket:   H LGA-1156
Compatible Intel Socket:   H3 LGA-1150
Compatible Intel Socket:   H2 LGA-1155
Compatible Intel Socket:   H4 LGA-1151
Compatible Intel Socket:   LGA 2011-v3
Compatible Intel Socket:   LGA-1200
Compatible Intel Socket:   LGA-1700
Compatible Intel Socket:   R LGA-2011
Compatible Intel Socket:   R4 LGA-2066
Compatible AMD Socket:   AM2 PGA-940
Compatible AMD Socket:   AM2+ PGA-940
Compatible AMD Socket:   AM3 PGA-941
Compatible AMD Socket:   AM3+
Compatible AMD Socket:   AM4
Compatible AMD Socket:   AM5
Compatible AMD Socket:   FM1
Compatible AMD Socket:   FM2
Compatible AMD Socket:   FM2+

Power Description

Rated Current:   150 mA

Physical Characteristics

Product Color:   White
Product Material:   Aluminum
Material Details:   Cold Plate Material : Copper
Maximum Fan Diameter:   4.72"
Radiator Height:   10.79"
Radiator Width:   4.72"
Radiator Depth:   1.06"
Fan Height:   4.72"
Fan Width:   4.72"
Fan Depth:   0.98"
Water Block Height:   3.17"
Water Block Width:   2.63"
Water Block Depth:   1.91"

Miscellaneous

Package Contents:
  • MAG CORELIQUID 240R V2 WHITE
  • 1 x 1 to 2 Fan PWM Cable
  • 1 x PSU Molex 4-Pin to 4-Pin(2 Pin Wired) Cable

Application/Usage:   Processor
