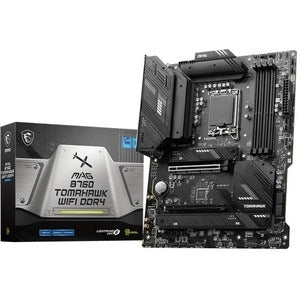

MSI MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard

UPC Code: 824142305980
Manufacturer Warranty: 3 Year
Returns Allowed: yes
Return Period (Days): 14
Add'l Return Info: Past Exch-Call MSI 626-913-0828 x159
Country of Origin: CHINA

General Information

Manufacturer:   MSI
Manufacturer Part Number:   B760TAMAWIFID4
Manufacturer Website Address:   www.msi.com
Brand Name:   MSI
Product Line:   MAG
Product Type:   Gaming Desktop Motherboard

Processor & Chipset

Chipset Manufacturer:   Intel
Chipset Model:   B760
Total Processor Supported:   1
Processor Socket:   Socket LGA-1700
Processor Generation Supported:   13th Gen
Processor Generation Supported:   12th Gen
Processor Supported:   Pentium Gold
Processor Supported:   Celeron
Processor Supported:   Core

Memory

Number of Memory Slots:   4
Memory Form Factor:   DIMM
Memory Form Factor:   UDIMM
Maximum Memory Supported:   128 GB
Memory Technology:   DDR4 SDRAM
Memory Speed Supported:   2933 MHz
Memory Speed Supported:   3200 MHz
Memory Speed Supported:   3333 MHz
Memory Speed Supported:   3400 MHz
Memory Speed Supported:   3600 MHz
Memory Speed Supported:   4000 MHz
Memory Speed Supported:   4200 MHz
Memory Speed Supported:   4266 MHz
Memory Speed Supported:   4800 MHz
Memory Speed Supported:   5000 MHz
Memory Speed Supported:   5066 MHz
Memory Speed Supported:   5200 MHz
Memory Speed Supported:   5333 MHz
Memory Speed Supported:   2133 MHz
Memory Speed Supported:   2400 MHz
Memory Speed Supported:   2666 MHz
Memory Speed Supported:   3466 MHz
Memory Speed Supported:   3733 MHz
Memory Speed Supported:   3800 MHz
Memory Speed Supported:   4400 MHz
Memory Speed Supported:   4600 MHz

I/O Controller

Controller Type:   Serial ATA/600
RAID Supported:   Yes
RAID Levels:   10
RAID Levels:   5
RAID Levels:   0
RAID Levels:   1

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes
Bluetooth Standard:   Bluetooth 5.3
Gigabit Ethernet:   Yes
2.5Gigabit Ethernet:   Yes
Wireless LAN:   Yes
Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3
PCI Express Standard:   PCI Express 3.0
PCI Express Standard:   PCI Express 4.0
PCI Express Standard:   PCI Express 5.0
Total Number of PCI Express Slots:   3
Number of PCI Express x1 Slots:   1
Number of PCI Express x16 Slots:   2

Interfaces/Ports

Total Number of USB Ports:   9
Number of USB 2.0 Ports:   4
Number of USB 3.2 Gen 2 Type-A Ports:   4
S/PDIF:   Yes
HDMI:   Yes
HDMI Version:   2.1
DisplayPort:   Yes
Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   4
Number of M.2 Interfaces:   3
Total Number of Onboard USB Ports:   7
Number of Onboard USB 2.0 Ports:   4

Physical Characteristics

Form Factor:   ATX
Width:   12"
Depth:   9.6"

Miscellaneous

Package Contents:

• MAG B760 TOMAHAWK WIFI DDR4 Gaming Desktop Motherboard
• Quick Installation Guide
• SATA Cable
• EZ M.2 Clip
• Cable Stickers
• Wi-Fi Antenna
• European Union Regulatory Notice

Brand Compatibility:   Intel
Country of Origin:   China

Warranty

Limited Warranty:   3 Year
