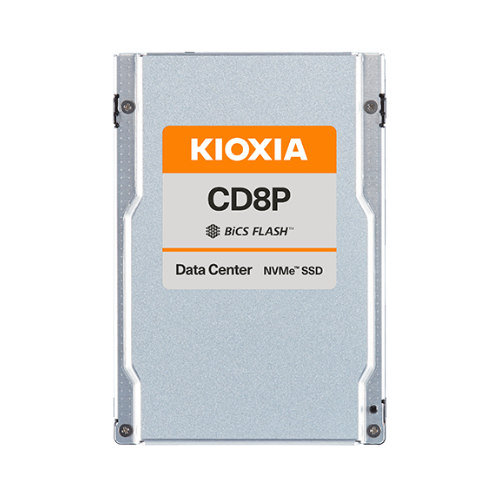

The KIOXIA CD8P-R 7.68 TB is a read-intensive data center SSD in the 2.5-inch (15 mm) form factor with a PCIe 5.0 x4, NVMe 2.0 interface (self-encrypting drive (SED) model). It is rated for 1 DWPD (drive writes per day) and carries a 5-year warranty.

KIOXIA rates this 7.68 TB model at up to 12,000 MB/s sustained sequential read and 5,500 MB/s sequential write (128 KiB), with up to 2,000K IOPS sustained 4 KiB random read and 200K IOPS random write.

Specifications

• Series: KIOXIA CD8P-R (read-intensive)
• Capacity: 7,680 GB (7.68 TB)
• Form factor: 2.5-inch (15 mm)
• Interface: PCIe 5.0 x4, NVMe 2.0
• Sustained sequential read / write (128 KiB, up to): 12,000 / 5,500 MB/s
• Sustained random read / write (4 KiB, up to): 2,000K / 200K IOPS
• Endurance: 1 DWPD
• MTTF: 2,500,000 hours
• Warranty: 5 years
• Power (active, typical): 21 W
• Power (ready, typical): 5 W
• Security option: SED

Source: KIOXIA dSSD-CD8P-R-U2-product-brief. Capacity uses decimal units (1 TB = 1,000,000,000,000 bytes); an operating system reports less. Performance figures are KIOXIA's maximum ratings. Specifications are subject to change.
