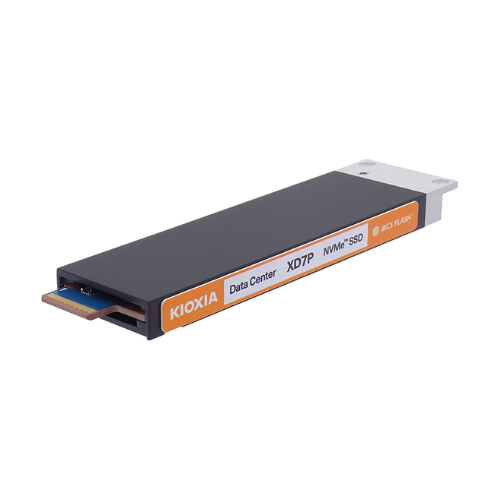

Kioxia XD7P 1.92TB E1.S 9.5mm PCIe 5.0 KXDZ1RJJ1T92 Base Non-SED SSD

Kioxia XD7P 1.92TB E1.S 9.5mm  PCIe 5.0 KXDZ1RJJ1T92 Base Non-SED SSD

Data Center NVMe™ SSD

KIOXIA XD7P Series E1.S SSDs are designed to the Enterprise and Datacenter Standard Form Factor (EDSFF) E1.S specification to address the specific requirements of hyperscale applications, including the performance, power and thermal requirements of the Open Compute Project (OCP) Datacenter NVMe™ SSD Specification.

In addition to 9.5 mm thickness E1.S, 15 mm thickness E1.S with the heatsink is also supported. Designed to optimize system density and efficiency, the XD7P Series SSDs represent the future of flash storage for servers and storage systems in cloud and hyperscale data centers, and support storage capacities up to 7.68 TB.

Base Non-SED Model

Manufacturer Part Number

KXDZ1RJJ1T92

Capacity

1,920 GB

Basic Specifications
Form Factor
E1.S 9.5mm

Interface
PCIe® 5.0, NVMe™ 2.0

Maximum Interface Speed
64 GT/s (PCIe Gen5 x4)

Flash Memory Type
BiCS FLASH TLC

Performance (Up to)
Sustained 128 KiB Sequential Read
7,200 MB/s

Sustained 128 KiB Sequential Write
3,100 MB/s

Sustained 4 KiB Random Read
1,500K IOPS

Sustained 4 KiB Random Write
95K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
16 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,000,000 hours

DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 75 ^oC

Temperature(Non-operating)
-40 ^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )

Item Dimension (L" x W" x H")
4.5 x 1.5 x 0.5

Weight
1 lb

Warranty Information
5 Years
