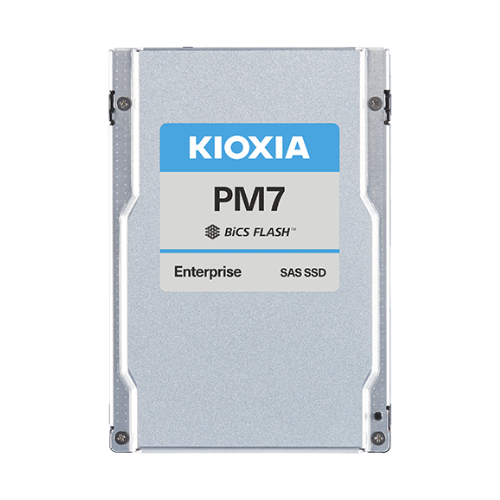

Kioxia PM7-V 6.4TB 2.5" SAS 24G SDFUY73GFB FIPS SED SSD

Kioxia PM7-V 6.4TB 2.5" SAS 24G SDFUY73GFB FIPS SED SSD

Enterprise SAS Mixed Use Optimized SSD

KIOXIA PM7-V Series 24G SAS Enterprise SSD is optimized for mixed use applications, including relational database, streaming media, data warehousing and web services. The series is designed to deliver balanced levels of performance, reliability, capacity and endurance for mixed use and read intensive environments.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-V offers 3 DWPD (Drive Writes Per Day) with capacities up to 12.8 TB.

FIPS SED Model

Manufacturer Part Number

KPM7WVUG6T40
Capacity
6,400 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness
lnterface
SAS-4
Interface Speed
22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory Type
BiCS FLASH^TM TLC

Performance (in dual-port mode)
Sustained 128 KiB Sequential Read
4,200 MB/s

Sustained 128 KiB Sequential Write
4,100 MB/s

Sustained 4 KiB Random Read
720K IOPS

Sustained 4 KiB Random Write
355K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 5 V + 10 % / -7%

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours
DWPD
3

Environmental
Temperature (Operating)
0 ^oC to 70 ^oC
Temperature (Non-operating)
-40 ^oC to 80 ^oC
Humidity (Operating)
5 % to 95 % R.H.
Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )
Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
