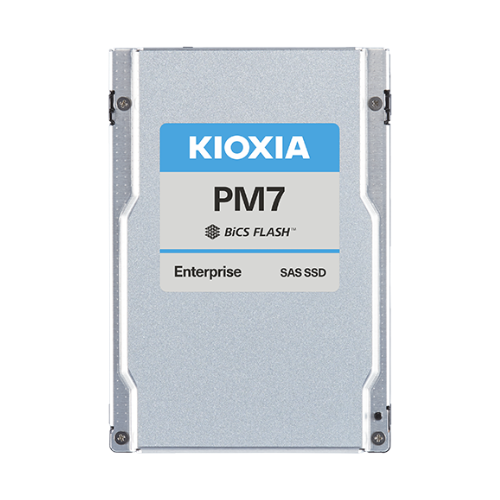

Kioxia PM7-R 1.92TB 2.5" SAS 24G SDFU085GFB SIE SSD

Enterprise SAS Read Intensive SSD

KIOXIA PM7-R Series 24G SAS Enterprise SSD is optimized for read intensive applications, including web services, data warehousing, streaming media and video on demand. The series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.

Featuring KIOXIA 112-layer BiCS FLASH™ 3D flash memory, this 7th generation enterprise SAS SSD PM7-R Series offers 1 DWPD (Drive Writes Per Day) with capacities up to 30.72 TB.

SIE Model

Manufacturer Part Number

KPM7XRUG1T92
Capacity
1,920 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness
lnterface
SAS-4
Interface Speed
22.5 Gbit/s , 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s, 1.5 Gbit/s
Flash Memory Type
BiCS FLASH^TM TLC

Performance (in dual-port mode)
Sustained 128 KiB Sequential Read
4,200 MB/s

Sustained 128 KiB Sequential Write
3,400 MB/s

Sustained 4 KiB Random Read
720K IOPS

Sustained 4 KiB Random Write
155 K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 5 V + 10 % / -7%

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours
DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 70 ^oC
Temperature (Non-operating)
-40 ^oC to 80 ^oC
Humidity (Operating)
5 % to 95 % R.H.
Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )
Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )
Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
