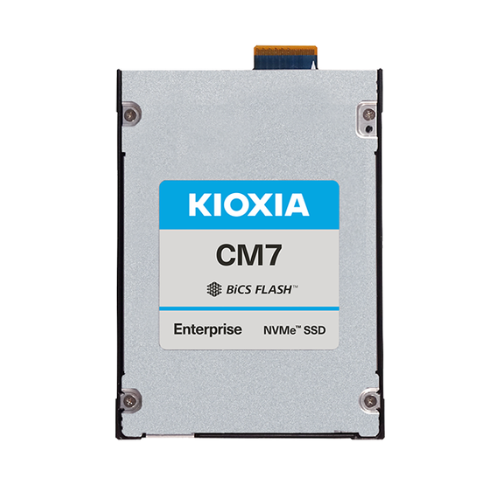

The KIOXIA CM7-V 12.8 TB is a mixed-use data center SSD in the E3.S form factor with a PCIe 5.0, NVMe 2.0 interface (self-encrypting drive (SED) model). It is rated for 3 DWPD (drive writes per day) and carries a 5-year warranty.

KIOXIA rates this 12.8 TB model at up to 13,000 MB/s sustained sequential read and 5,300 MB/s sequential write (128 KiB), with up to 2,000K IOPS sustained 4 KiB random read and 470K IOPS random write.

Specifications

• Model: SDF4Y41GEB
• Series: KIOXIA CM7-V (mixed-use)
• Capacity: 12,800 GB (12.8 TB)
• Form factor: E3.S
• Interface: PCIe 5.0, NVMe 2.0
• Sustained sequential read / write (128 KiB, up to): 13,000 / 5,300 MB/s
• Sustained random read / write (4 KiB, up to): 2,000K / 470K IOPS
• Endurance: 3 DWPD
• MTTF: 2,500,000 hours
• Warranty: 5 years
• Power (active, typical): 25 W
• Power (ready, typical): 5 W
• Security option: SED

Source: KIOXIA eSSD-CM7-V-E3.S-product-brief. Capacity uses decimal units (1 TB = 1,000,000,000,000 bytes); an operating system reports less. Performance figures are KIOXIA's maximum ratings. Specifications are subject to change.
