Kioxia

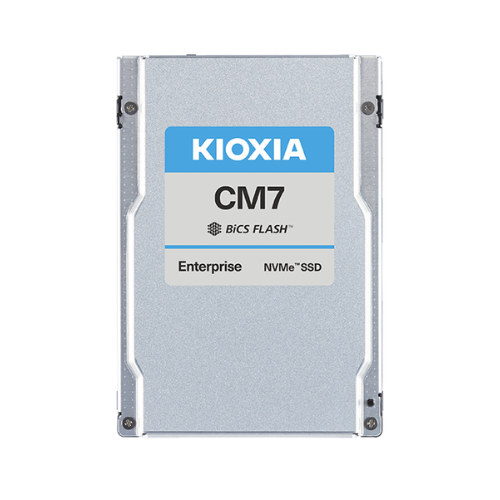

Kioxia CM7-V 12.8TB 2.5" PCIe 5.0 SDF7Y81GEB SIE SSD

Kioxia CM7-V 12.8TB 2.5" PCIe 5.0 SDF7Y81GEB SIE SSD

Regular price $2,749.99 USD
Regular price Sale price $2,749.99 USD
Sale Sold out
Shipping calculated at checkout.

Kioxia CM7-V 12.8TB 2.5" PCIe 5.0 SDF7Y81GEB SIE SSD

Enterprise NVMe™ Mixed-Use SSD


KIOXIA CM7-V Series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 600K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-V Series of enterprise NVMe™ SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 12.8 TB, making them ideally suited for read and write mixed use enterprise applications.


SIE Model

Manufacturer Part Number
KCMYXVUG12T8
Capacity
12,800 GB


Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 5.0, NVMeTM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASHTM TLC


Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
14,000 MB/s

Sustained 128 KiB Sequential Write
7,000 MB/s

Sustained 4 KiB Random Read
2,400K IOPS

Sustained 4 KiB Random Write
550K IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
25 W typ.

Power Consumption (Ready)
5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
3


Environmental
Temperature (Operating)
oC to 73 oC

Temperature (Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 ( 1,000 G ) ( 0.5 ms )


Item Dimensions
Thickness

7.5 mm +0.2 / -0.5 mm

Width

76 mm ± 0.25 mm

Length

112.75 mm ± 0.4 mm

Weight
110g Max

Warranty Information
5 Years
