Kioxia

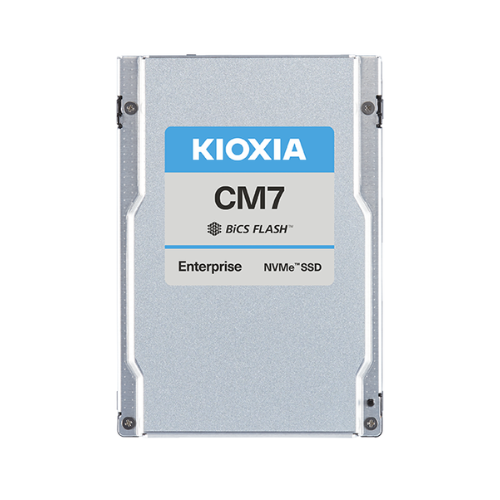

Kioxia CM7-V 1.6TB 2.5" PCIe 5.0 SDF7Y05GEA Base Non-SED SSD

Kioxia CM7-V 1.6TB 2.5" PCIe 5.0 SDF7Y05GEA Base Non-SED SSD

Regular price $676.99 USD
Regular price Sale price $676.99 USD
Sale Sold out
Shipping calculated at checkout.

Kioxia CM7-V 1.6TB 2.5" PCIe 5.0 SDF7Y05GEA Base Non-SED SSD

Enterprise NVMe™ Mixed-Use SSD


KIOXIA CM7-V Series is a mixed use SSD that is optimized to support a broad range of enterprise applications and associated workloads, including high performance computing, online transaction processing, IoT and edge computing, media streaming. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 600K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-V Series of enterprise NVMe™ SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 12.8 TB, making them ideally suited for read and write mixed use enterprise applications.


Base Non-SED Model

Manufacturer Part Number
KCMY1VUG1T60
Capacity
1,600 GB


Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 5.0, NVMeTM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASHTM TLC


Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
14,000 MB/s

Sustained 128 KiB Sequential Write
3,500 MB/s

Sustained 4 KiB Random Read
2,000K IOPS

Sustained 4 KiB Random Write
310K IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
22 W typ.

Power Consumption (Ready)
5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
3


Environmental
Temperature (Operating)
oC to 76 oC

Temperature (Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 ( 1,000 G ) ( 0.5 ms )


Item Dimensions
Thickness

7.5 mm +0.2 / -0.5 mm

Width

76 mm ± 0.25 mm

Length

112.75 mm ± 0.4 mm

Weight
110g Max

Warranty Information
5 Years

Proposition 65 Warning for California Consumers

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
