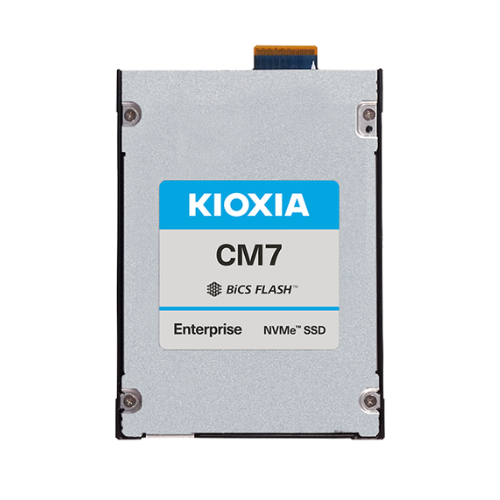

Kioxia CM7-R 15.36TB E3.S PCIe 5.0 SDF4061GEB FIPS SED SSD

Enterprise NVMe™ Read Intensive SSD


KIOXIA CM7-R Series is a read intensive SSD that is optimized to support a broad range of enterprise applications and associated workloads, including business intelligence, online transaction processing, and software defined storage and virtualization. Built on PCIe® 5.0 and NVMe™ 2.0 technology, the CM7 Series SSDs deliver excellent performance up to 2,700K IOPS (random read) and 310K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CM7-R Series of enterprise NVMe™ SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 15.36 TB, making them ideally suited for read intensive enterprise applications.

FIPS SED Model

Manufacturer Part Number
KCM7FRJE15T3
Capacity
15,360 GB

Basic Specifications
Form Factor
E3.S, 7.5mm thickness

lnterface
PCIe 5.0, NVMe^TM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 single x4, dual x2)

Flash Memory Type
BiCS FLASH^TM TLC

Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
13,000 MB/s

Sustained 128 KiB Sequential Write
5,300 MB/s

Sustained 4 KiB Random Read
2,000K IOPS

Sustained 4 KiB Random Write
260K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
25 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours

DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 73 ^oC

Temperature (Non-operating)
-40 ^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )

Item Dimensions
Thickness

7.5 mm +0.2 / -0.5 mm

Width

76 mm ± 0.25 mm

Length

112.75 mm ± 0.4 mm

Weight
110g Max

Warranty Information
5 Years
