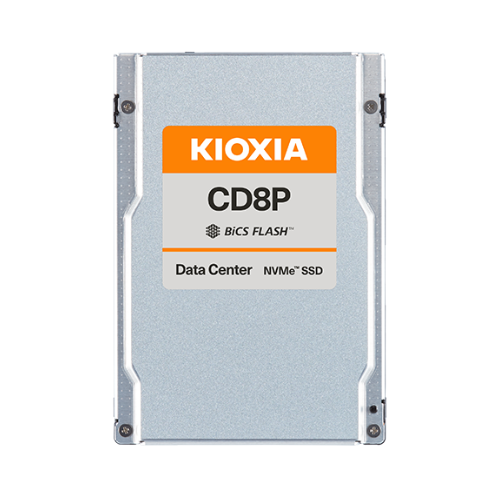

Kioxia CD8P-R 1.92T 2.5" PCIe 5.0 SDF7285GEB SIE SSD

Kioxia CD8P-R 1.92TB 2.5" PCIe 5.0 SDF7285GEB SIE SSD

Data Center NVMe™ Read Intensive SSD

KIOXIA CD8P-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 5.0 (32 GT/s x4) interface, the CD8P-R Series SSDs deliver consistent performance up to 2,000K IOPS (random read) and 200K IOPS (random write), and realize 60 % to 80 % increase in sequential read performance when compared to previous generation PCIe® 4.0 SSDs (KIOXIA CD8-R Series).

Featuring KIOXIA BiCS FLASH™ generation 5 TLC flash memory, CD8P-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 30.72 TB, making them well-suited for hyperscale data center applications.


Key Applications

•Hyperscale

•IoT and big data analytics

•Online transaction processing (OLTP)

(transactional and relational databases)

•Virtualized environments

•Streaming media and content delivery networks

SIE Model

Manufacturer Part Number
KCD8XPUG1T92
Capacity
1,920 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 5.0, NVMe^TM 2.0

Maximum Interface Speed
128 GT/s (PCIe Gen5 x4)

Flash Memory Type
BiCS FLASH^TM TLC

Performance (Up to)
Sustained 128 KiB Sequential Read
12,000 MB/s

Sustained 128 KiB Sequential Write
3,500 MB/s

Sustained 4 KiB Random Read
1,600K IOPS

Sustained 4 KiB Random Write
150K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
18 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours

DWPD
1

Environmental
Temperature (Operating)
0 ^oC to 76 ^oC

Temperature (Non-operating)
-40 ^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s² ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s² ( 1,000 G ) ( 0.5 ms )

Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
