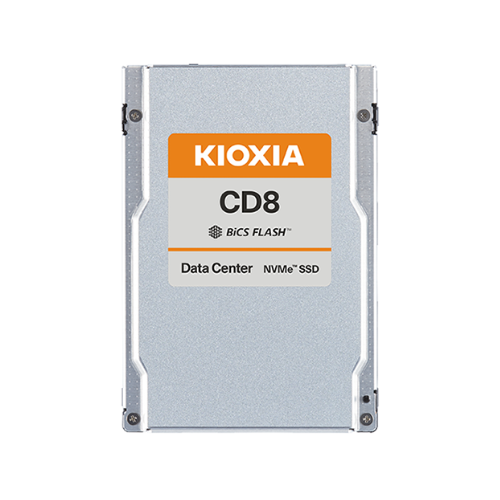

Kioxia CD8-V 6.4TB 2.5" PCIe 4.0 SDF1D83GEB SIE SSD

Kioxia CD8-V 6.4TB 2.5" PCIe 4.0 SDF1D83GEB SIE SSD

Regular price $1,239.99 USD
Regular price Sale price $1,239.99 USD
Sale Sold out
Shipping calculated at checkout.

Kioxia CD8-V 6.4TB 2.5" PCIe 4.0 SDF1D83GEB SIE SSD

Data Center NVMe™ Mixed-Use SSD


KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).


Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.


SIE Model

Manufacturer Part Number

KCD8XVUG6T40

Capacity

6,400 GB


Basic Specifications
Form Factor
2.5-inch, 15mm thickness

Interface
PCIe 4.0, NVMe 1.4

Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)

Flash Memory Type
BiCS FLASH TLC


Performance (Up to)
Sustained 128 KiB Sequential Read
7,100 MB/s

Sustained 128 KiB Sequential Write
6,000 MB/s

Sustained 4 KiB Random Read
1,150K IOPS

Sustained 4 KiB Random Write
380K IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
19 W typ.

Power Consumption (Ready)
5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
3


Environmental
Temperature (Operating)
oC to 75 oC

Temperature(Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )

Item Dimension (L" x W" x H")
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
