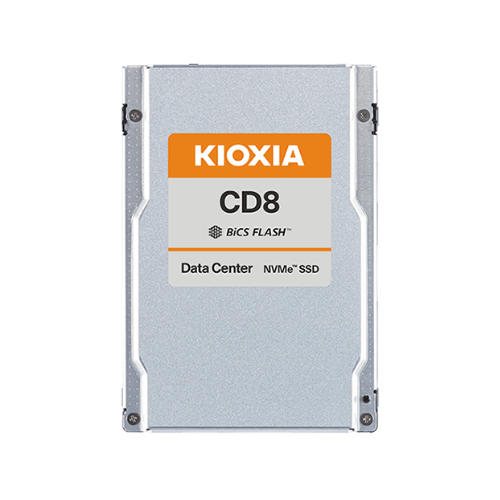

Kioxia CD8-V 1.6TB 2.5" PCIe 4.0 SDF1D45GEB SED SSD

Data Center NVMe™ Mixed-Use SSD

KIOXIA CD8-V Series is a mixed use data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-V Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 380K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-V 2.5-inch form factor SSDs deliver 3 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 12.8 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

SED Model

Manufacturer Part Number

KCD8DVUG1T60

Capacity

1,600 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness

Interface
PCIe 4.0, NVMe 1.4

Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)

Flash Memory Type
BiCS FLASH TLC

Performance (Up to)
Sustained 128 KiB Sequential Read
7,200 MB/s

Sustained 128 KiB Sequential Write
3,500 MB/s

Sustained 4 KiB Random Read
1,250K IOPS

Sustained 4 KiB Random Write
310K IOPS

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
13 W typ.

Power Consumption (Ready)
5 W typ.

Reliability
MTTF
2,500,000 hours

DWPD
3

Environmental
Temperature (Operating)
0 ^oC to 75 ^oC

Temperature(Non-operating)
-40 ^oC to 85 ^oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )

Item Dimension (L" x W" x H")
4 x 3 x 1

Weight
1 lb

Warranty Information
5 Years
