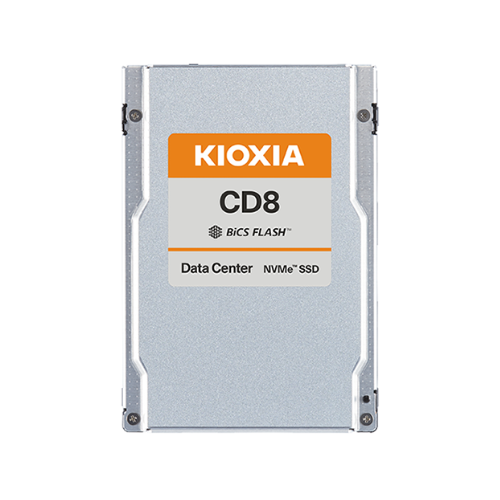

Kioxia CD8-R 960GB 2.5" PCIe 4.0 SDF1E06GEA Base Non-SED SSD

Kioxia CD8-R 960GB 2.5" PCIe 4.0 SDF1E06GEA Base Non-SED SSD

Regular price $403.99 USD
Regular price Sale price $403.99 USD
Sale Sold out
Shipping calculated at checkout.

Kioxia CD8-R 960GB 2.5" PCIe 4.0 SDF1E06GEA Base Non-SED SSD

Data Center NVMe™ Read Intensive SSD

KIOXIA CD8-R Series is a read intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, the CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).

Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, the CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.

Base Non-SED Model

Manufacturer Part Number
960 GB

Basic Specifications
Form Factor
2.5-inch, 15mm thickness

PCIe 4.0, NVMeTM 1.4

Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)

Flash Memory Type

Performance in single port (1x4) mode (Up to)
Sustained 128 KiB Sequential Read
7,200 MB/s

Sustained 128 KiB Sequential Write
1,800 MB/s

Sustained 4 KiB Random Read
1,000K IOPS

Sustained 4 KiB Random Write

Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
11 W typ.

Power Consumption (Ready)
5 W typ.

2,500,000 hours

Temperature (Operating)
oC to 75 oC

Temperature (Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 ( 2.17 Grms ) ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 ( 1,000 G ) ( 0.5 ms )

Item Dimension (L inch x W inch x H inch)
4 x 3 x 1

1 lb

Warranty Information
5 Years
