Kioxia

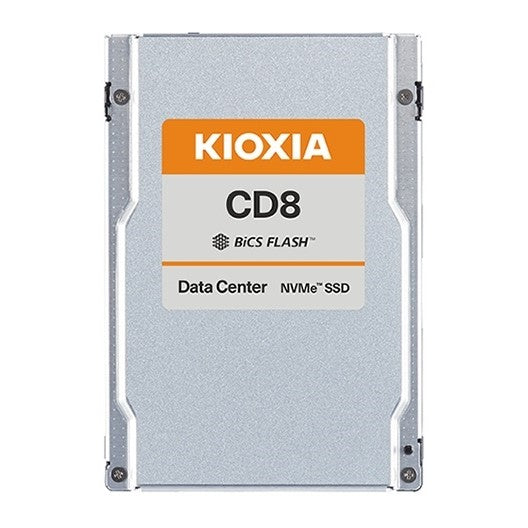

Kioxia CD8-R 7.68TB 2.5" PCIe 4.0 x4 SDF1E83GEB SIE 1 DWPD Bare SSD
Kioxia CD8-R 7.68TB 2.5" PCIe 4.0 x4 SDF1E83GEB SIE 1 DWPD Bare SSD
Regular price
$508.16 USD
Regular price
Sale price
$508.16 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Kioxia CD8 Read Intensive Solid State Drive KCD8XRUG7T68 7.68TB 2.5" PCIe4
Data Center NVMe™ Read-intensive SSD
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).
Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.
Key Features
PCIe® 4.0, NVMe™ 1.4 specification compliant
Open Compute Project Datacenter NVMe™ SSD specification v2.0 support (not all requirements)
Form factor: 2.5-inch, 15mm height
Proprietary KIOXIA architecture: controller, firmware and 112-layer BiCS FLASH™ 3D TLC
Single-port design, optimized for data center class workloads
Consistent performance and reliability for demanding 24x7 environments
Designed for high-density storage deployments
Power loss protection (PLP) and end-to-end data correction
Security options: SIE, SED
Key Applications
Hyperscale
IoT and big data analytics
Online transaction processing (OLTP)
(transactional and relational databases)
Virtualized environments
Streaming media and content delivery networks
Detail Specifications
Capacity
7,680 GB
7,680 GB
Basic Specifications
Form Factor
2.5-inch, 15mm thickness
lnterface
PCIe 4.0, NVMe 1.4
Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)
Flash Memory Type
BiCS FLASH TLC
Performance (Up to)
Sustained 128 KiB Sequential Read
7,100 MB/s
Sustained 128 KiB Sequential Write
6,000 MB/s
Sustained 4 KiB Random Read
1,150K IOPS
Sustained 4 KiB Random Write
200K IOPS
Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %
Power Consumption (Active)
19 W typ.
Power Consumption (Ready)
5 W typ.
Reliability MTTF
2,500,000 hours
DWPD
1
Environmental Temperature (Operating)
0 oC to 75 oC
Temperature(Non-operating)
-40 oC to 85 oC
Humidity (Operating)
5 % to 95 % R.H.
Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )
Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )
Item Dimension (L"xW"xH")
4 x 3 x 1
Weight
1 lb
Warranty Information
1 Years
