Kioxia

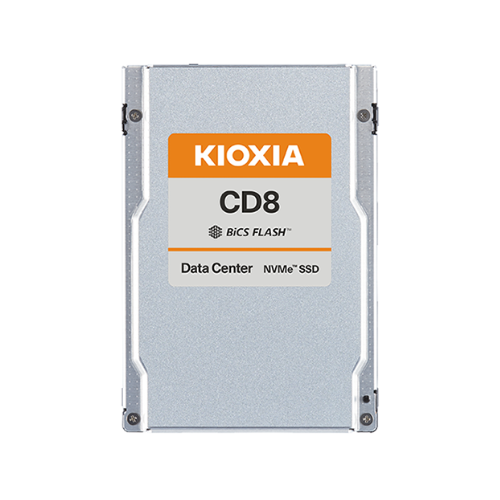

Kioxia CD8-R 15.36TB 2.5" PCIe 4.0 SDF1E01GEA Base Non-SED SSD

Kioxia CD8-R 15.36TB 2.5" PCIe 4.0 SDF1E01GEA Base Non-SED SSD

Regular price $2,206.99 USD
Regular price Sale price $2,206.99 USD
Sale Sold out
Shipping calculated at checkout.

Kioxia CD8-R 15.36TB 2.5" PCIe 4.0 SDF1E01GEA Base Non-SED SSD

Data Center NVMe™ Read-intensive SSD



The CD8-R Series is a read-intensive data center NVMe™ SSD that is optimized to support a broad range of scale-out and cloud applications, including big data/IoT, online transaction processing, and virtualization. Built with a PCIe® 4.0 (16 GT/s x4) interface, CD8-R Series SSDs deliver consistent performance up to 1,250K IOPS (random read) and 200K IOPS (random write).



Featuring KIOXIA 112-layer BiCS FLASH™ 3D TLC flash memory, CD8-R 2.5-inch form factor SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and storage capacities up to 15.36 TB in a 2.5-inch form factor, making them well-suited for hyperscale data center applications.



Base Non-SED Model

Manufacturer Part Number

KCD81RUG15T3

Capacity

15,360 GB


Basic Specifications
Form Factor
2.5-inch, 15mm thickness

lnterface
PCIe 4.0, NVMe 1.4

Maximum Interface Speed
64 GT/s (PCIe Gen4 x4)

Flash Memory Type
BiCS FLASH TLC


Performance (Up to)
Sustained 128 KiB Sequential Read
6,600 MB/s

Sustained 128 KiB Sequential Write
6,000 MB/s

Sustained 4 KiB Random Read
1,050K IOPS

Sustained 4 KiB Random Write
195K IOPS


Power Requirements
Supply Voltage
12 V +/- 10 %, 3.3 V +/- 15 %

Power Consumption (Active)
20 W typ.

Power Consumption (Ready)
5 W typ.


Reliability
MTTF
2,500,000 hours

DWPD
1


Environmental
Temperature (Operating)
oC to 74 oC

Temperature(Non-operating)
-40 oC to 85 oC

Humidity (Operating)
5 % to 95 % R.H.

Vibration (Operating)
21.27 m/s2 2.17 Grms ( 5 to 800 Hz )

Shock (Operating)
9.8 km/s2 1,000 G ( 0.5 ms )

Item Dimension (L" x W" x H")
4 x 3 x 1

Weight
1 lb

Warranty Information
1 Years
