Kingston

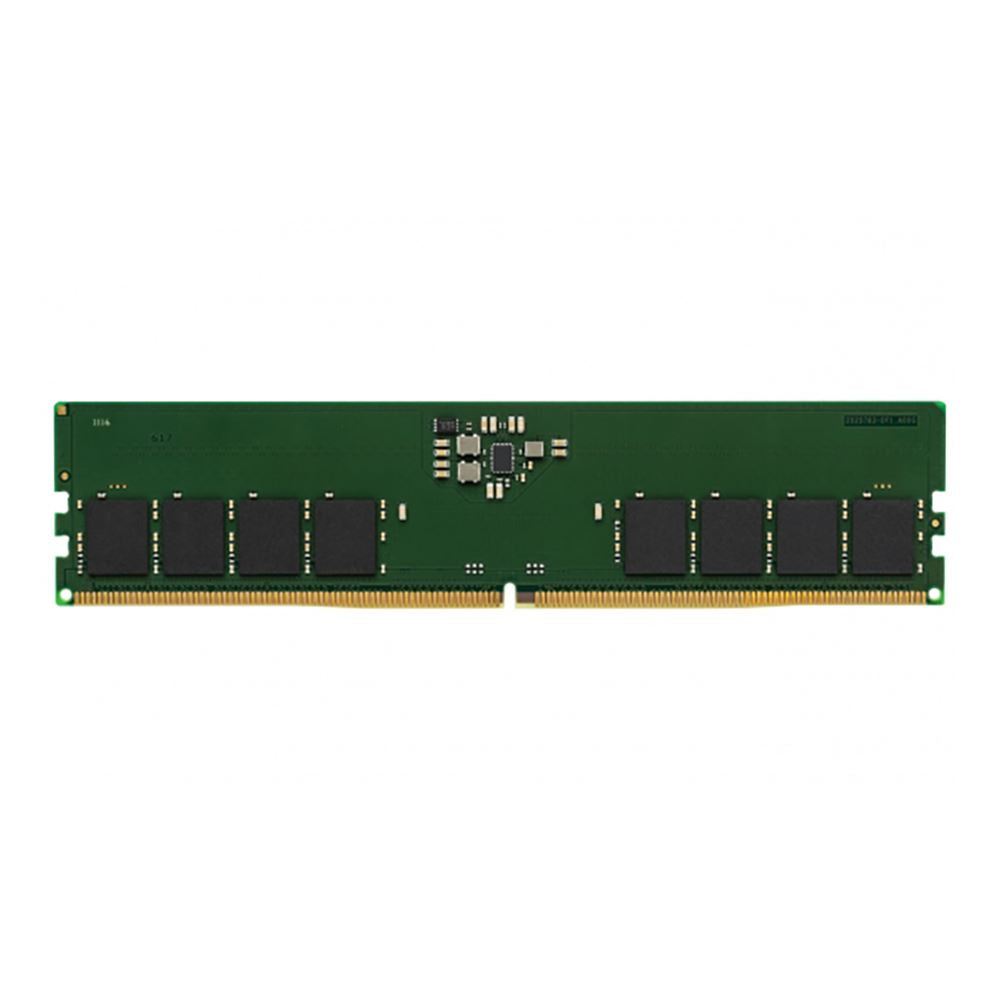

Kingston Memory 16GB 4800MHz DDR5

Kingston Memory 16GB 4800MHz DDR5

Regular price $99.99 USD
Regular price Sale price $99.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.
KVR48U40BS8-16

16GB 1Rx8 2G x 64-Bit PC5-4800

CL40 288-Pin DIMM
DESCRIPTION

This document describes ValueRAM's KVR48U40BS8-16 is a 2G x 64-bit (16GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx8, memory module, based on eight 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.23” (31.25mm)

• RoHS Compliant and Halogen-Free CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0o C to +85o C
Storage Temperature
-55o C to +100o C
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime
