DESCRIPTION

FURY KF548S38IBK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-4800 CL38 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-4800 at a low latency timing of 38-38-38 at 1.1V. Additional timing parameters are shown in the Plug-N-Play (PnP) Timing Parameters section below. Each 262-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (Plug N Play): DDR5-4800 CL38-38-38 @ 1.1V

• XMP Profile #1: DDR5-4800 CL38-38-38 @ 1.1V

SPECIFICATIONS

CL(IDD) 38 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin) 29.12ns(min.)

UL Rating 94 V - 0

Operating Temperature 0C to +85C

Storage Temperature -55C to +100C

FEATURES
• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• Height 1.18” (30mm)

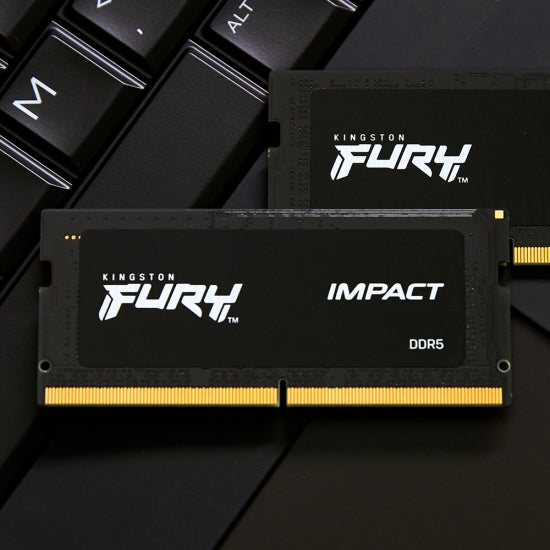

KF548S38IBK2-64

64GB (32GB 4G x 64-Bit x 2 pcs.)

DDR5-4800 CL38 262-Pin SODIMM Kit
