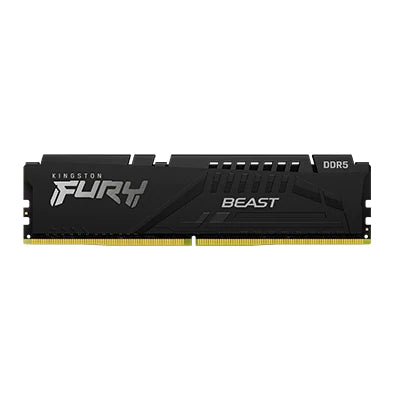

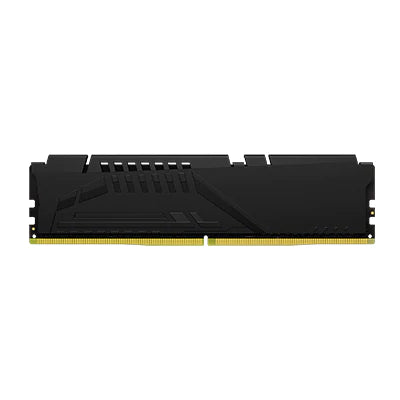

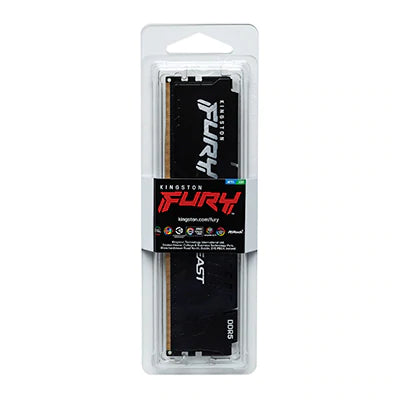

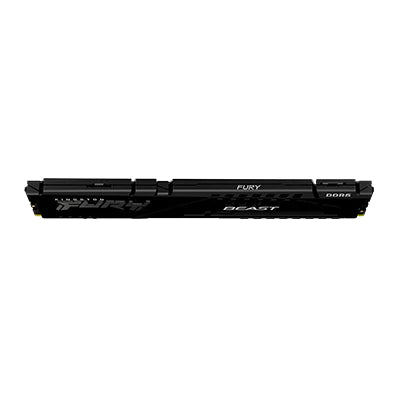

Kingston Fury Beast Black 16GB 6000MHz DDR5 CL40 DIMM Module

KF560C40BB-16

16GB 2G x 64-Bit

DDR5-6000 CL40 288-Pin DIMM

DESCRIPTION

FURY KF560C40BB-16 is a 2G x 64-bit (16GB) DDR5-6000 CL40 SDRAM (Synchronous DRAM) 1Rx8, memory module, based on eight 2G x 8-bit FBGA components per module. The module supports Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Each module has been tested to run at DDR5-6000 at a low latency timing of 40-40-40 at 1.35V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The JEDEC standard electrical and mechanical specifications are as follows:

FACTORY TIMING PARAMETERS

• Default (JEDEC): DDR5-4800 CL40-39-39 @1.1V

• XMP Profile #1: DDR5-6000 CL40-40-40 @1.35V

• XMP Profile #2: DDR5-5600 CL40-40-40 @1.25V

• XMP Profile #3: DDR5-4800 CL38-38-38 @1.1V

CL(IDD)
40 cycles
Row Cycle Time (tRCmin)
48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin)
295ns(min.)
Row Active Time (tRASmin)
32ns(min.)
UL Rating
94 V - 0
Operating Temperature
0^o C to +85^o C
Storage Temperature
-55^o C to +100^o C
Item Dimension (L"xW"xH")
6 x 2 x 1

Weight
1 lb

Warranty Information
Lifetime
