Kingston Technology Company

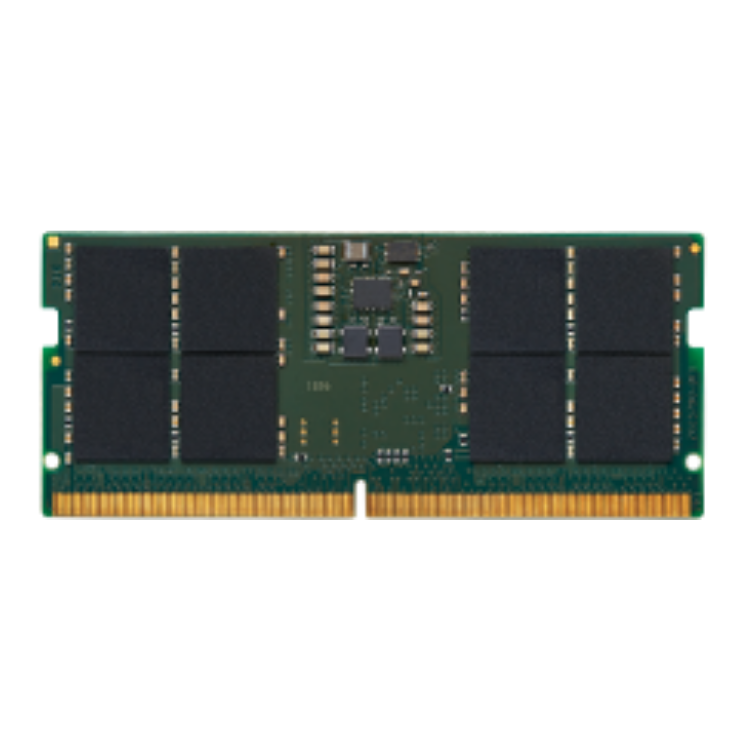

Kingston 8GB 4800MHz DDR5 CL40 SODIMM Memory Module

Kingston 8GB 4800MHz DDR5 CL40 SODIMM Memory Module

Regular price $66.99 USD
Regular price Sale price $66.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

Kingston 8GB 4800MHz DDR5 CL40 SODIMM Memory Module

DESCRIPTION

KVR48S40BS6-8 is a 1G x 64-bit (8GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 1Rx16, memory module, based on four 1G x 16-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

FEATURES

• Power Supply: VDD = 1.1V Typical

• VDDQ = 1.1V Typical

• VPP = 1.8V Typical

• VDDSPD = 1.8V to 2.0V

• On-Die ECC

• PCB: Height 1.18” (30.00mm)

• RoHS Compliant and Halogen-Free

SPECIFICATIONS

CL(IDD) 40 cycles

Row Cycle Time (tRCmin) 48ns(min.)

Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)

Row Active Time (tRASmin) 32ns(min.)

UL Rating 94 V - 0

Operating Temperature 0C to +85C

Storage Temperature -55C to +100C

KVR48S40BS6-8

8GB 1Rx16 1G x 64-Bit

PC5-4800 CL40 262-Pin SODIMM Kit
