Kingston 32GB 4800MHz DDR5 CL40 SODIMM Memory Module
Kingston 32GB 4800MHz DDR5 CL40 SODIMM Memory Module
Couldn't load pickup availability
Kingston 32GB 4800MHz DDR5 CL40 SODIMM Memory Module
DESCRIPTION

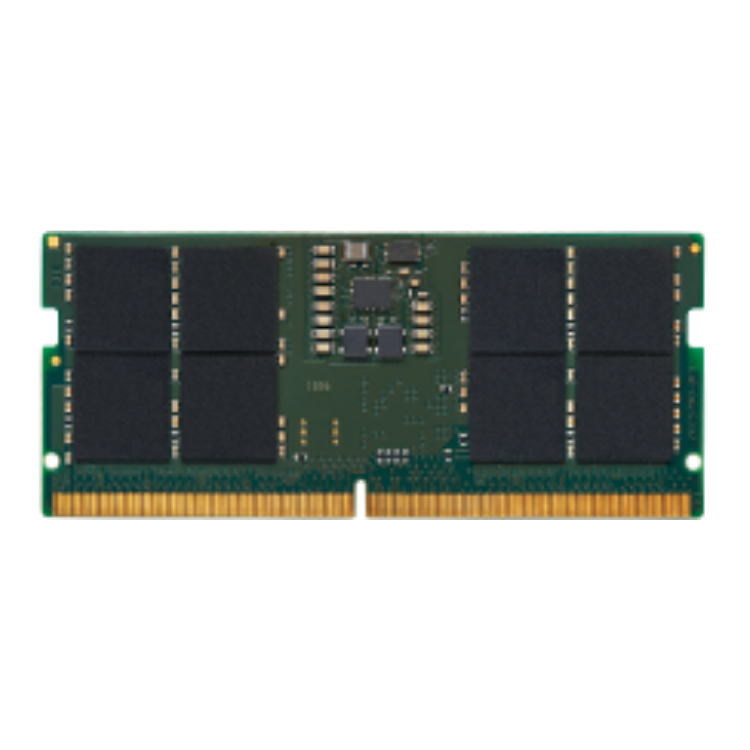

KVR48S40BD8-32 is a 4G x 64-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 262-pin SODIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:
FEATURES
• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical • VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB: Height 1.18” (30.00mm)
• RoHS Compliant and Halogen-Free
SPECIFICATIONS
CL(IDD) 40 cycles
Row Cycle Time (tRCmin) 48ns(min.)
Refresh to Active/Refresh Command Time (tRFCmin) 295ns(min.)
Row Active Time (tRASmin) 32ns(min.)
UL Rating 94 V - 0
Operating Temperature 0C to +85C
Storage Temperature -55C to +100C
