Inwin CK Series 9L Small Form Factor MATX Case
9L Small Form Factor
Efficiently utilizes its 9L compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.
Superior Performance
The CK Series is just 9L in volume, but it accommodates a slim ODD, 3.5"/2.5" HDD, 2.5" HDD, four low-profile PCI cards, and even one card reader! It offers exceptional flexibility and scalability for enhanced multi-function applications
Highly Expandable

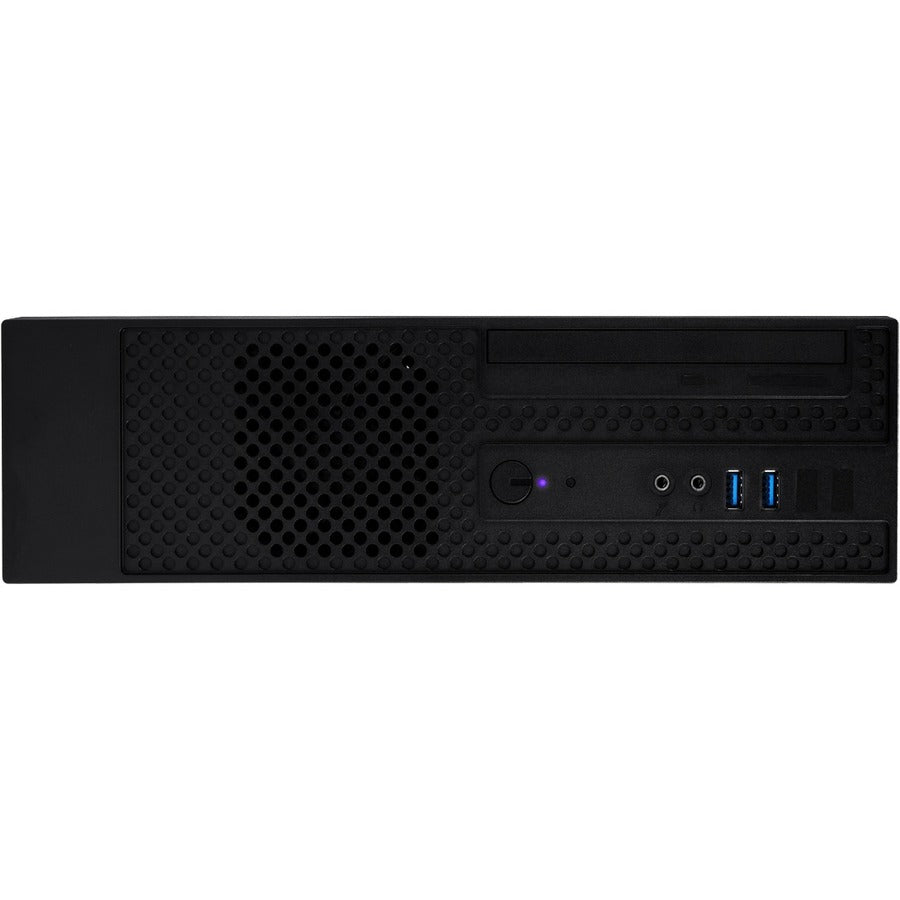

Supports USB 3.0, USB 2.0, Type-C and card reader ports at the front for multiple device connections.
Advanced Thermal Solution
Hosts an 80mm PWM fan with plenty of ventilation providing exceptional cooling performance.

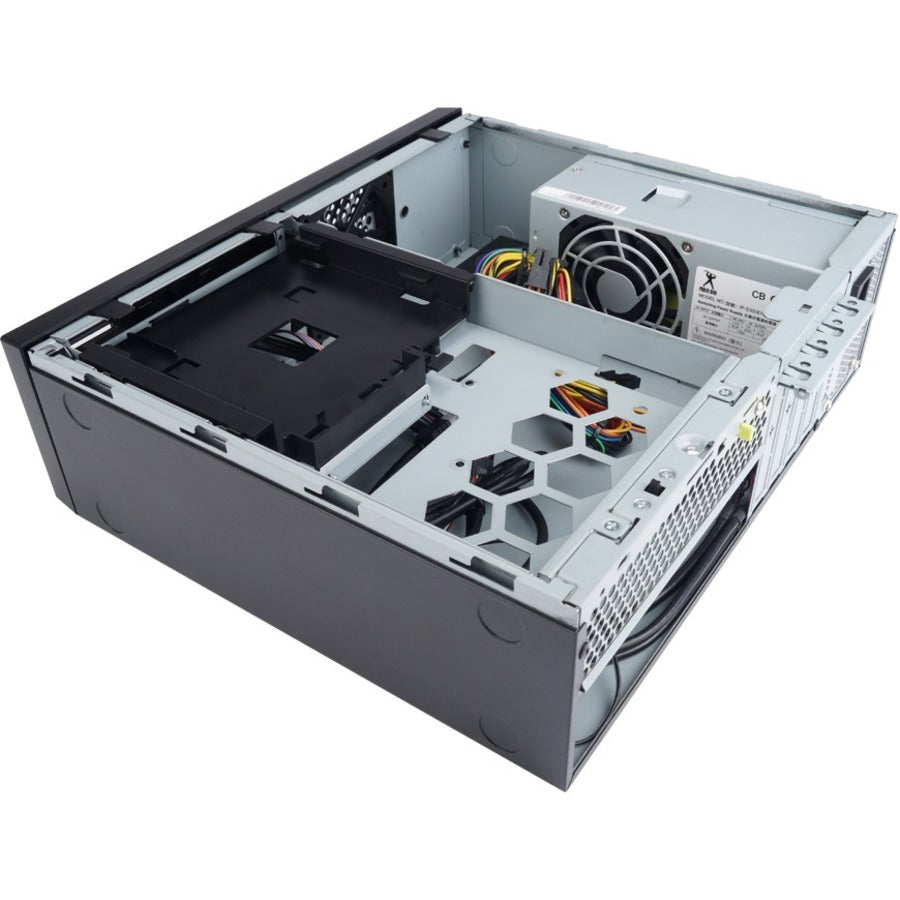

Detachable Drive Cage
The removable drive cage features a slim ODD, 3.5" and 2.5" HDD tool-free bays for easy installation.
Quick Top Cover Eject Clip
A switch releases the top cover for faster system assembly or maintenance.
Supports Micro-ATX Motherboard
Efficiently utilizes its compact size to support Micro-ATX form factor motherboard, providing flexibility for integrators.
Standard TFX 12V 300W Power Supply
Internal TFX 300W power supply equipped with standby low power consumption and fan speed control for a quieter and more efficient operation.
Product Type: Computer Case
Technical Information
Motherboard Supported: Micro ATX
Motherboard Supported: Mini ITX
Bays
Number of External 5.25" Bays: 1
Number of Internal 2.5" Bays: 1
Number of Internal 2.5"/3.5" Bays: 1
Number of Total Expansion Bays: 3
I/O Expansions
Number of Total Expansion Slots: 4
Interfaces/Ports
Total Number of USB Ports: 4
Total Number of Audio In Ports: 1
Total Number of Audio Out Ports: 1
Power Description
Power Supply Installed: Yes
Number of Power Supplies Supported: 1
Number of Power Supplies Installed: 1
Power Supply Wattage: 300 W
Physical Characteristics
Product Color: Black
Product Material: Steel
Form Factor: Slim Tower
Height: 12.9"
Width: 3.7"
Depth: 10.5"
Miscellaneous
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country of Origin: Taiwan
Warranty
Limited Warranty: 2 Year
