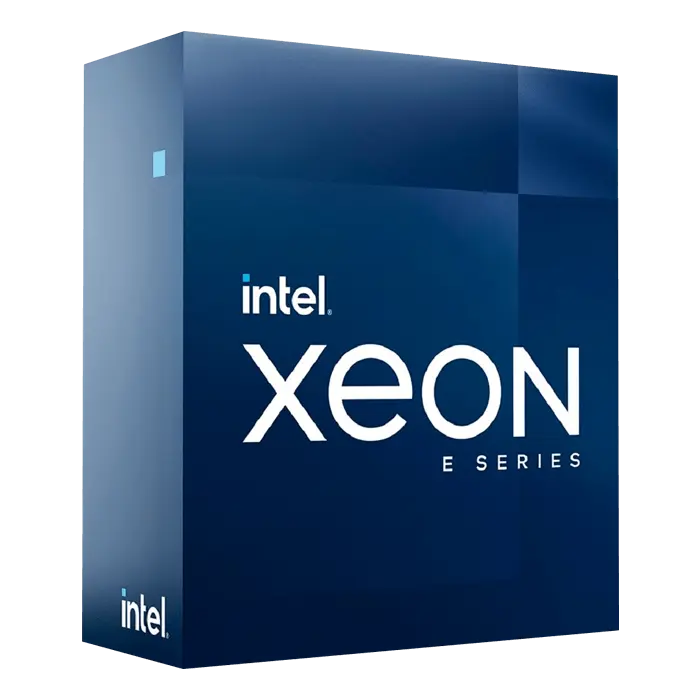

Intel Xeon E-2336

Intel CPU BX80708E2336 Xeon E-2336 12MB 2.9GHz FC-LGA14A Retail Essentials
Product Collection
Intel Xeon E Processor
Code Name
Products formerly Rocket Lake
Vertical Segment
Server
Processor Number
E-2336
Lithography
14 nm
Use Conditions
Server/Enterprise
CPU Specifications
Total Cores
6
Total Threads
12
Max Turbo Frequency
4.80 GHz
Intel Turbo Boost Technology 2.0 Frequency
4.80 GHz
Processor Base Frequency
2.90 GHz
Cache
12 MB Intel Smart Cache
Bus Speed
8 GT/s
TDP
65 W
Supplemental Information
Embedded Options Available
No
Memory Specifications
Max Memory Size (dependent on memory type)
128 GB
Memory Types
DDR4-3200
Max Number of Memory Channels
2
ECC Memory Supported
Yes
Intel Optane^TM Persistent Memory Supported
No
Expansion Options
Scalability
1S Only
PCI Express Revision
4
Microprocessor PCIe Revision
Gen 4
PCI Express Configurations
Up to 1x16+1x4 , 2x8+1x4 , 1x8+3x4
Max Number of PCI Express Lanes
20
Package Specifications
Sockets Supported
FCLGA1200
Max CPU Configuration
1
TJUNCTION
100 ^oC
Advanced Technologies
Intel Turbo Boost Technology
2
Intel vPro Platform Eligibility
Yes
Intel Hyper-Threading Technology
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Intel Transactional Synchronization Extensions
No
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1 , Intel SSE4.2 , Intel AVX2 , Intel AVX-512
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Security and Reliability
Intel AES New Instructions
Yes
