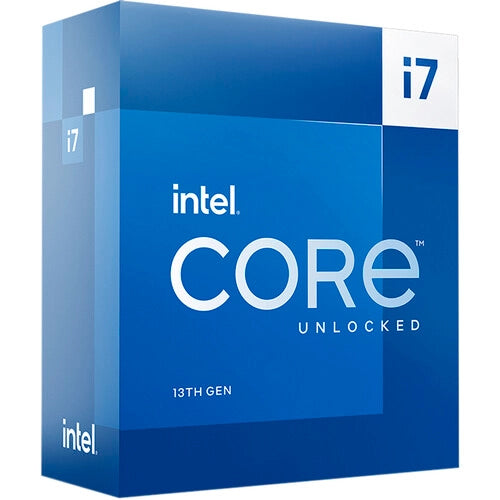

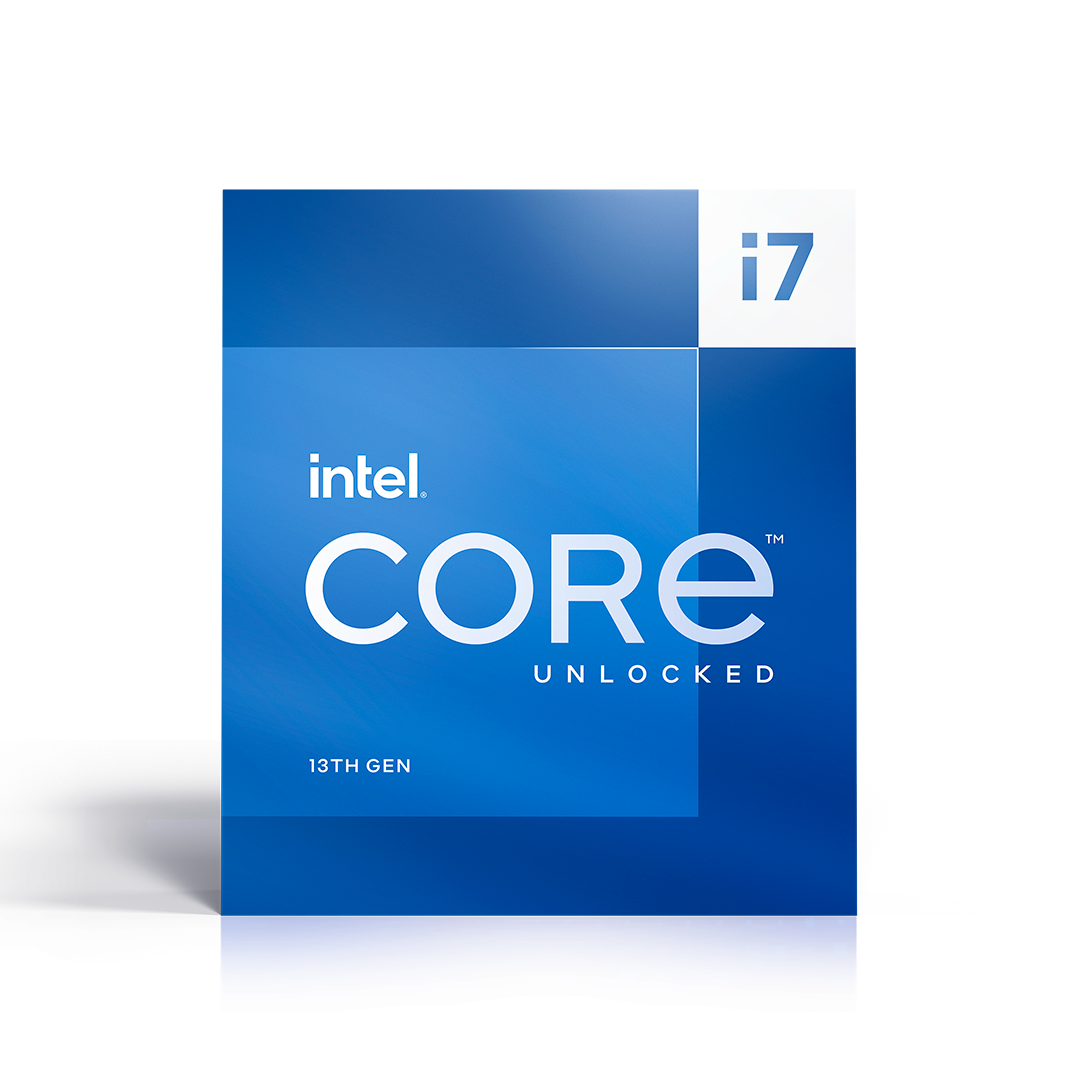

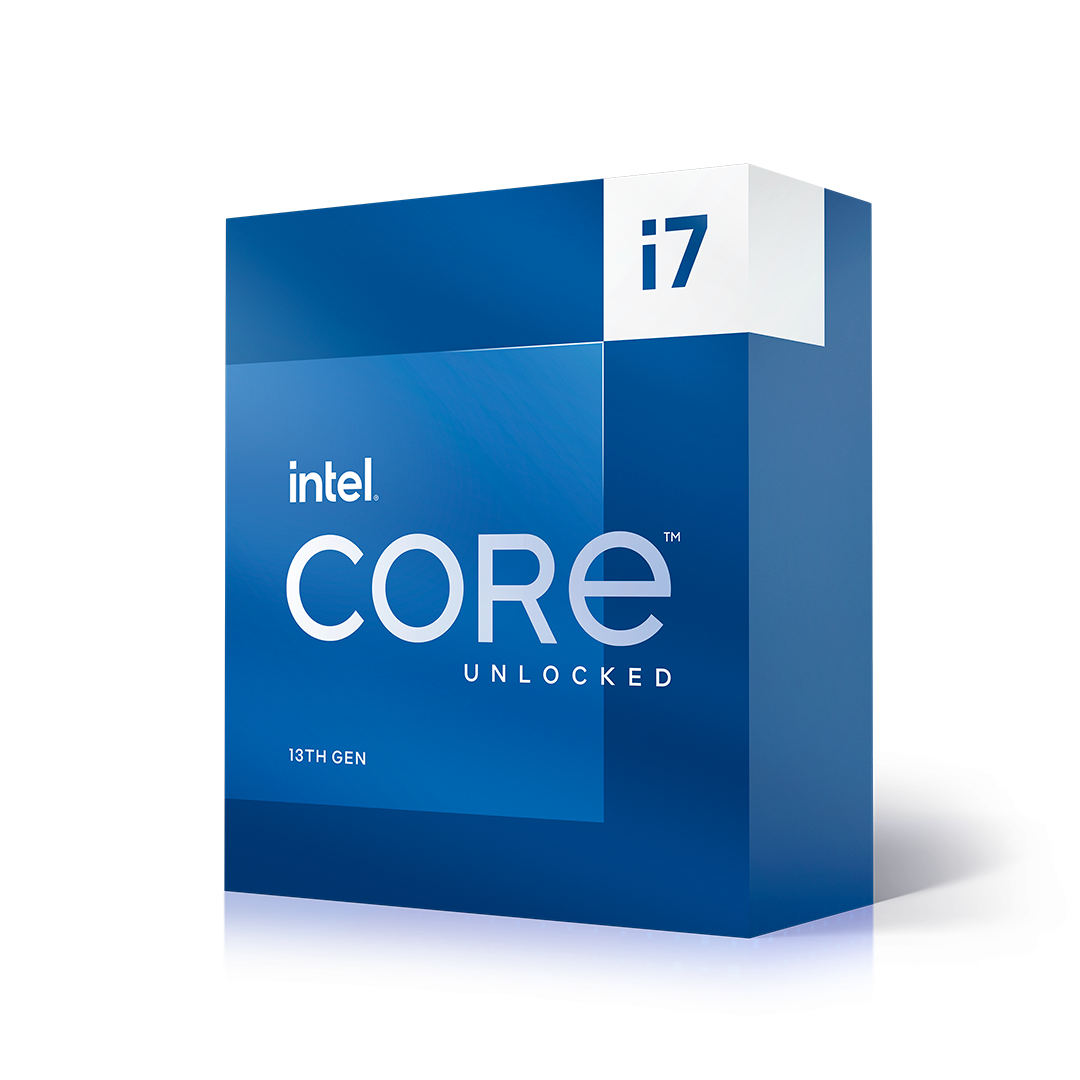

Intel Core i7-13700K 3.4 GHz 16-Core LGA 1700 Processor

Intel Core i7-13700K 3.4 GHz 16-Core LGA 1700 Processor

Essential Info

Product Collection
13th Generation Intel Core i7 Processors
Code Name
Products formerly Raptor Lake
Vertical Segment
Desktop
Processor Number
i7-13700K
Lithography
Intel 7
Use Conditions
PC/Client/Tablet, Workstation

CPU Specifications

Total Cores
16
Number of Performance-cores
8
Number of Efficient-cores
8
Total Threads
24
Max Turbo Frequency
5.40 GHz
Intel Turbo Boost Max Technology 3.0 Frequency
5.40 GHz
Performance-core Max Turbo Frequency
5.30 GHz
Efficient-core Max Turbo Frequency
4.20 GHz
Performance-core Base Frequency
3.40 GHz
Efficient-core Base Frequency
2.50 GHz
Cache
30 MB Intel Smart Cache
Total L2 Cache
24 MB
Processor Base Power
125 W
Maximum Turbo Power
253 W

Supplemental Information

Embedded Options Available
No

Memory Specifications

Max Memory Size (dependent on memory type)
128 GB
Memory Types
Up to DDR5 5600 MT/s
Up to DDR4 3200 MT/s
Max Number of Memory Channels
2
Max Memory Bandwidth
89.6 GB/s
ECC Memory Supported
Yes

Processor Graphics

Processor Graphics
Intel UHD Graphics 770
Graphics Base Frequency
300 MHz
Graphics Max Dynamic Frequency
1.60 GHz
Graphics Output
eDP 1.4b, DP 1.4a, HDMI 2.1
Execution Units
32
Max Resolution (HDMI)
4096 x 2160 at 60Hz
Max Resolution (DP)
7680 x 4320 at 60Hz
Max Resolution (eDP - Integrated Flat Panel)
5120 x 3200 at 120Hz
DirectX Support
12
OpenGL Support
4.5
OpenCL Support
3.0
Multi-Format Codec Engines
2
Intel Quick Sync Video
Yes
Intel Clear Video HD Technology
Yes
Number of Displays Supported
4
Device ID
0xA780

Expansion Options

Direct Media Interface (DMI) Revision
4.0
Max Number of DMI Lanes
8
Scalability
1S Only
PCI Express Revision
5.0 and 4.0
PCI Express Configurations
Up to 1x16+4, 2x8+4
Max Number of PCI Express Lanes
20

Package Specifications

Sockets Supported
FCLGA1700
Max CPU Configuration
1
TJUNCTION
100^oC

Advanced Technologies

Intel Gaussian and Neural Accelerator
3.0
Intel Thread Director
Yes
Intel Deep Learning Boost (Intel DL Boost)
Yes
Intel Speed Shift Technology
Yes
Intel Turbo Boost Max Technology 3.0
Yes
Intel Turbo Boost Technology
2.0
Intel Hyper-Threading Technology
Yes
Intel 64
Yes
Instruction Set
64-bit
Instruction Set Extensions
Intel SSE4.1, Intel SSE4.2, Intel AVX2
Idle States
Yes
Enhanced Intel SpeedStep Technology
Yes
Thermal Monitoring Technologies
Yes
Intel Volume Management Device (VMD)
Yes

Security and Reliability

Intel Standard Manageability (ISM)
Yes
Intel Control-Flow Enforcement Technology
Yes
Intel AES New Instructions
Yes
Secure Key
Yes
Intel OS Guard
Yes
Intel Trusted Execution Technology
Yes
Execute Disable Bit
Yes
Intel Boot Guard
Yes
Mode-based Execute Control (MBEC)
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
Yes
Intel VT-x with Extended Page Tables (EPT)
Yes
Item Dimension (L"xW"xH")
5 x 3 x 4

Weight
1 lb

Warranty Information
3 Year Limited
