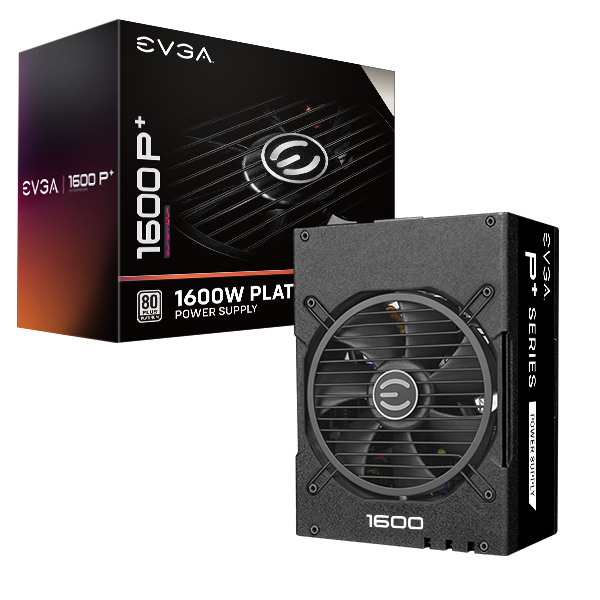

EVGA SuperNOVA 1600 P+, 80+ PLATINUM 1600W, Fully Modular Power Supply

Regular price $377.99 USD
Regular price Sale price $377.99 USD
Shipping calculated at checkout.
The SuperNOVA P+ PSU
Enter the SuperNOVA P+, the new and improved fully-modular power supply line-up from EVGA with an 80+ Platinum Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 P2 and 1200 P2 power supplies left off and continue the tradition of EVGA quality and performance.
Additionally, the SuperNOVA P+ power supplies feature a cleaner internal layout to increase airflow, a Variable Resistor module (to increase voltage stability), two DC to DC modules for more efficient power switching on all models, EVGA ECO Mode, a full suite of power supply protections, and EVGAs World-Leading Global 10-Year Warranty on all P+ power supplies.
SHORTER LENGTH
1600 P+
(200x150x86mm)
vs.
1600 P2
(220x150x86mm)
When it comes to building a system, even the smallest differences can make or break your build. The 1600 P+ is 20mm shorter than its P2 counterpart, giving you more space without sacrificing quality.
QUIET AND LONG-LASTING FANS
1600 P+ - 135mm Double
Ball Bearing Fan
Double Ball Bearings are the industry standard for any power supply expected to carry heavy loads on a regular basis due to their durability and low noise level. CABLE LENGTH
ATX Cable
1x 600mm
EPS Cable
2x 750mm
PCIe Cable
4x 750mm, 5x 750mm, 900mm
SATA Cable
2x 550mm, 650mm, 750mm, 850mm, 2x 550mm, 650mm, 750mm
Four-Pin Peripheral Cable
2x 550mm, 650mm, 750mm, 850mm
Floppy Adapter
2x 100mm
AC Power
1x 1800mm
Modular Cable Type
Full
CONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin (4+4)
PCIe
14x 8pin (6+2)
SATA
14x
Four-Pin Peripheral
8x
Floppy
2x
POWER SPECS
AC Input
115-240V, 17-9A, 60/50 Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
25A / 25A / 133A / 4A / 0.5A
150W / 150W / 1596W / 20W /6W
Total
1600W
ADDITIONAL DETAILS
Operating Temperature
0o to 50o C
Japanese Capacitors
100%
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
135mm Double Ball Bearing
Item Dimension (L"xW"xH")
12 x 8 x 11

Weight
10.1 lbs

Warranty Information
10 Years
