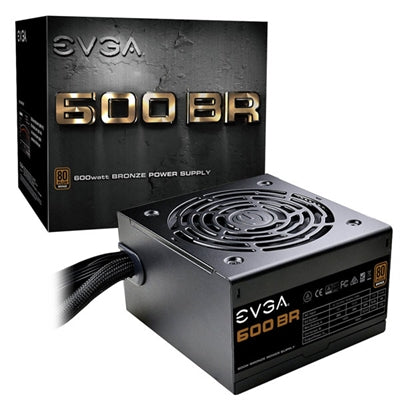

Introducing the EVGA BR Series of power supplies. Building upon our already great line of Bronze rated power supplies, we sought to make the improvements our customers asked for. Our BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability

CABLE LENGTH
ATX CABLE
1x 550mm
EPS CABLE
1x 600mm
PCIE CABLE
1x 550mm, 670mm
SATA CABLE
2x 450mm, 570mm, 690mm
FOUR-PIN PERIPHERAL CABLE
1x 450mm, 570mm, 690mm + 810mm (Floppy)
AC POWER
1x 1200mm (m)
MODULAR CABLE TYPE
No
CONNECTOR QUANTITY
24 PIN ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIE
2x 8pin (6+2)
SATA
6x
FOUR-PIN PERIPHERAL
3x
FLOPPY
1x
POWER SPECS
AC Input
100 - 240 VAC, 10/5A, 50 - 60 Hz
Rail: +3.3V/Max Output: 24A/130W
Rail: +5V/Max Output: 20A/130W
Rail: +12V/Max Output: 50A/ 600W/ 600W
Rail: +5Vsb/Max Output: 3A/ 15W
Rail: -12V/Max Output: 0.3A/ 3.6W
Total
600W at +30C
OPERATING TEMPERATURE
0^o to 30^o C
JAPANESE CAPACITORS
NO
ECO MODE
NO
MTBF
100,000 Hours
APPROVALS
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement
FAN SIZE / BEARING
120mm Fluid Dynamic Bearing
Item Dimension (L inchxW inchxH inch)
11 x 4 x 8

Weight
4.00lb

Warranty Information
3 Years
