DJI AIR 3 Drone with Fly More Combo + RC 2

DJI  AIR 3 Drone with Fly More Combo + RC 2

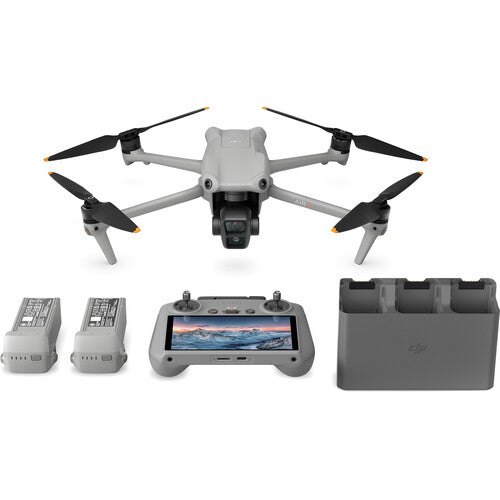

DJI Air 3 Fly More Combo (DJI RC 2)

• 1/1.3″ CMOS Medium Tele & Wide-Angle Dual Primary Cameras

• 46-Min Max Flight Time

• Omnidirectional Obstacle Sensing

• DJI O4 20km HD Video Transmission

• Dual-Camera 48MP Photos

• Dual-Camera 4K/60fps HDR Videos

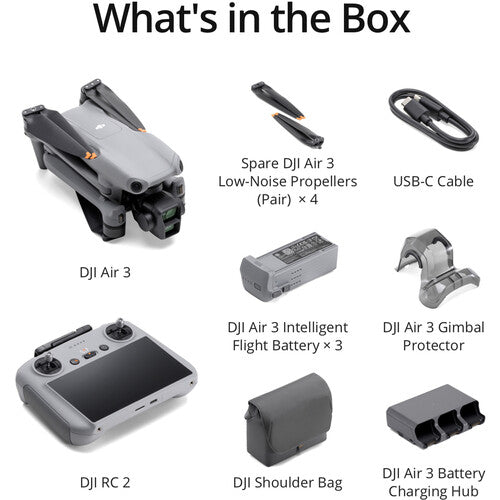

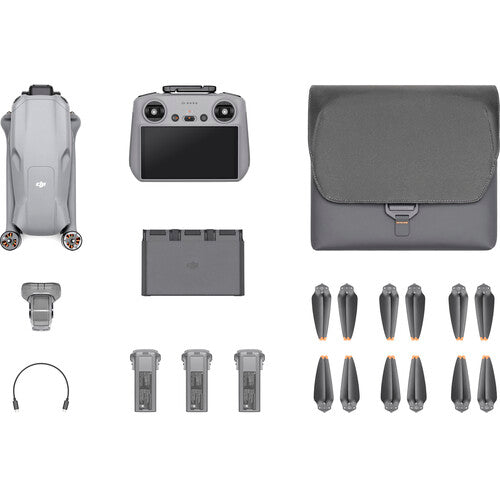

In the Box

DJI Air 3 x 1

DJI RC 2 Remote Controller x 1

DJI Air 3 Intelligent Flight Battery x 3

DJI Air 3 Low-Noise Propellers (Pair) x 6

DJI Air 3 Gimbal Protector x 1

Type-C to Type-C PD Cable x 1

DJI Air 3 Battery Charging Hub x 1

DJI Shoulder Bag x 1

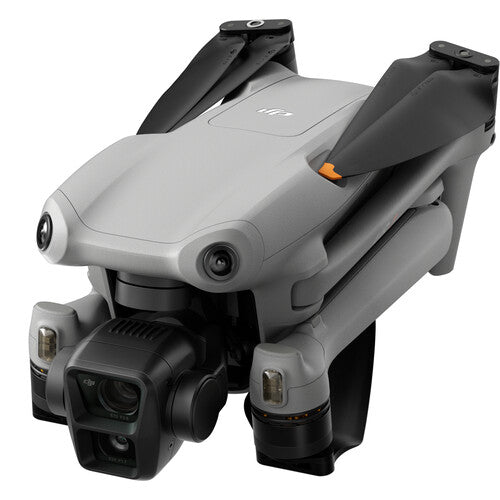

Dual-Primary-Camera System

Air 3 boasts the first dual-primary camera system of the Air series, embedding a 1/1.3-inch-CMOS wide-angle camera and a 1/1.3-inch-CMOS 3x medium tele camera in a sleek and compact body. The two cameras have the same sensor size but different focal lengths, delivering consistent image quality [3] and more dynamic imaging possibilities..

Extended Flight, Innovative Charging

Air 3 offers up to 46 minutes of flight time, [1] an increase of 48% [5] compared to the previous generation. This provides plenty of time to explore, adjust compositions, and get the shots you want, all during a single flight.

The new battery charging hub supports an innovative power transfer function. Simply press and hold the function button to transfer the remaining power from multiple batteries to the battery with the highest remaining power, [6] giving you a more fully charged battery in situations where charging options are limited.

Aircraft

Max Ascent Speed
10 m/s

Max Descent Speed
10 m/s

Max Horizontal Speed (at sea level, no wind)
21 m/s
19 m/s in EU regions.

Max Takeoff Altitude
6000 m

Max Flight Time
46 minutes
Measured by DJI Air 3 flying at a constant speed of 28.8 kph in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Hovering Time
42 minutes
Measured by DJI Air 3 hovering in a windless environment at sea level, with APAS off, AirSense off, camera parameters set to 1080p/24fps, video mode off, and from 100% battery level until 0%. Data is for reference only. Always pay attention to reminders in the app during your flight.

Max Flight Distance
32 km

Max Wind Speed Resistance
12 m/s

Max Pitch Angle
35 ^o

Operating Temperature
-10^o to 40^o C (14^o to 104^o F)

Global Navigation Satellite System
GPS + Galileo + BeiDou

Hovering Accuracy Range
Vertical:
+/- 0.1 m (with vision positioning)
+/- 0.5 m (with GNSS positioning)
Horizontal:
+/- 0.3 m (with vision positioning)
+/- 0.5 m (with high-precision positioning system)

Internal Storage
8 GB

Camera

Image Sensor
Wide-Angle Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP
Medium Tele Camera: 1/1.3-inch CMOS, Effective Pixels: 48 MP

Lens
Wide-Angle Camera
FOV: 82^o
Format Equivalent: 24 mm
Aperture: f/1.7
Focus: 1 m to unlimited
Medium Tele Camera
FOV: 35^o
Format Equivalent: 70 mm
Aperture: f/2.8
Focus: 3 m to unlimited

ISO Range
Video
Normal and Slow Motion:
100-6400 (Normal)
100-1600 (D-Log M)
100-1600 (HLG)
Night:
100-12800 (Normal)
100-6400 (12 MP)
100-3200 (48 MP)

Shutter Speed
Wide-Angle Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s
Medium Tele Camera
12MP Photo: 1/16000-2 s (2.5-8 s for simulated long exposure)
48MP Photo: 1/8000-2 s

Max Image Size
Wide-Angle Camera: 8064x6048
Medium Tele Camera: 8064x6048

Still Photography Modes
Wide-Angle Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames 48 MP, 3 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames. 48 MP, 3 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s. 48 MP, 5/7/10/15/20/30/60 s
Medium Tele Camera
Single Shot: 12 MP and 48 MP
Burst Shooting: 12 MP, 3/5/7 frames 48 MP, 3 frames
Automatic Exposure Bracketing (AEB): 12 MP, 3/5 frames 48 MP, 3 frames at 0.7 EV step
Timed: 12 MP, 2/3/5/7/10/15/20/30/60 s. 48 MP, 5/7/10/15/20/30/60 s

Photo Format
JPEG/DNG (RAW)

Video Resolution

Wide-Angle Camera:
H.264/H.265
4K: 3840x2160 at 24/25/30/48/50/60/100^Note fps
FHD: 1920x1080 at 24/25/30/48/50/60/100^Note/200^Note fps
2.7K Vertical Shooting: 1512x2688 at 24/25/30/48/50/60fps
FHD Vertical Shooting: 1080x1920 at 24/25/30/48/50/60fps

Medium Tele Camera:
H.264/H.265
4K: 3840x2160 at 24/25/30/48/50/60/100^Note fps
FHD: 1920x1080 at 24/25/30/48/50/60/100^Note/200^Note fps
2.7K Vertical Shooting: 1512x2688 at 24/25/30/48/50/60fps
FHD Vertical Shooting: 1080x1920 at 24/25/30/48/50/60fps
Note: Recording frame rates. The corresponding video plays as slow-motion video. 4K/100fps only supports H.265.

Video Format
MP4 (MPEG-4 AVC/H.264, HEVC/H.265)

Max Video Bitrate
H.264/H.265: 150 Mbps

Supported File System
exFAT

Color Mode and Sampling Method
Wide-Angle Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)
Medium Tele Camera
Normal: 8-bit 4:2:0 (H.264/H.265)
HLG/D-Log M: 10-bit 4:2:0 (H.265)

Digital Zoom
Wide-Angle Camera: 1-3x
Medium Tele Camera: 3-9x

Gimbal

Stabilization
3-axis mechanical gimbal (tilt, roll, pan)

Mechanical Range
Tilt: -135^o to 70^o
Roll: -50^o to 50^o
Pan: -27^o to 27^o

Controllable Range
Tilt: -90^o to 60^o
Pan: -5^o to 5^o

Max Control Speed (tilt)
100^o/s

Angular Vibration Range
+/-0.0037^o

Sensing

Sensing Type
Omnidirectional binocular vision system, supplemented with an infrared sensor at the bottom of the aircraft

Forward
Measurement Range: 0.5-18 m
Detection Range: 0.5-200 m
Effective Sensing Speed: Flight Speed < or equals 12 m/s
FOV: Horizontal 90^o, Vertical 72^o

Backward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed < or equals 12 m/s
FOV: Horizontal 90^o, Vertical 72^o

Lateral
Measurement Range: 0.5-30 m
Effective Sensing Speed: Flight Speed < or equals 12 m/s
FOV: Horizontal 90^o, Vertical 72^o

Upward
Measurement Range: 0.5-18 m
Effective Sensing Speed: Flight Speed < or equals 6 m/s
FOV: Front and Back 72^o, Left and Right 90^o

Downward
Measurement Range: 0.3-14 m
Effective Sensing Speed: Flight Speed < or equals 6 m/s
FOV: Front and Back 106^o, Left and Right 90^o

Operating Environment
Forward, Backward, Left, Right, and Upward:
Surfaces with discernible patterns and adequate lighting (lux > 15)
Downward:
Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. walls, trees, people), and adequate lighting (lux > 15)

3D Infrared Sensor
Measurement Range: 0.1-8 m (reflectivity > 10%)
FOV: Front and Back 60^o, Left and Right 60^o

Video Transmission

Video Transmission System
O4

Live View Quality
Remote Controller:
1080p/30fps, 1080p/60fps

Operating Frequency
2.4000-2.4835 GHz
5.170-5.250 GHz
5.725-5.850 GHz
(5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.)

Transmitter Power (EIRP)
2.4 GHz:
< 33 dBm (FCC)
< 20 dBm (CE/SRRC/MIC)
5.1 GHz:
< 23 dBm (CE)
5.8 GHz:
< 33 dBm (FCC)
< 30 dBm (SRRC)
< 14 dBm (CE)

Max Transmission Distance (unobstructed, free of interference)
FCC: 20 km
CE: 10 km
SRRC: 10 km
MIC: 10 km
(Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range for one-way, non-return flights under each standard. Always pay attention to RTH reminders in the app during your flight.)

Max Transmission Distance (unobstructed, with interference)
Strong Interference: urban landscape, approx. 1.5-4 km
Medium Interference: suburban landscape, approx. 4-10 km
Low Interference: suburb/seaside, approx. 10-20 km
(Data tested under FCC standard in unobstructed environments with typical interference. Used for reference purposes only and provides no guarantee for actual transmission distance.)

Max Transmission Distance (obstructed, with interference)
Low Interference and Obstructed by Buildings: approx. 0-0.5 km
Low Interference and Obstructed by Trees: approx. 0.5-3 km
(Data tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.)

Max Download Speed
O4:
10 MB/s (with DJI RC-N2 Remote Controller)
10 MB/s (with DJI RC 2)
Wi-Fi 5: 30 MB/s^Note
Note: Measured in a laboratory environment with little interference in countries/regions that support both 2.4 GHz and 5.8 GHz. Download speeds may vary depending on the actual conditions.

Lowest Latency
Aircraft + Remote Controller: approx. 120 ms
Depending on the actual environment and mobile device.

Antenna
6 antennas, 2T4R

Wi-Fi

Protocol
802.11 a/b/g/n/ac

Operating Frequency
2.400-2.4835 GHz
5.725-5.850 GHz

Transmitter Power (EIRP)
2.4 GHz:
< 20 dBm (FCC/CE/SRRC/MIC)
5.8 GHz:
< 20 dBm (FCC/SRRC)
< 14 dBm (CE)

Bluetooth

Protocol
Bluetooth 5.2

Operating Frequency
2.400-2.4835 GHz

Transmitter Power (EIRP)
< 10 dBm

Battery

Capacity
4241 mAh

Nominal Voltage
14.76 V

Max Charging Voltage
17 V

Type
Li-ion 4S

Energy
62.6 Wh

Charging Temperature
5^o to 40^o C (41^o to 104^o F)

Charging Time
Approx. 80 minutes (with DJI 65W Portable Charger)
Approx. 60 minutes (with DJI 100W USB-C Power Adapter and Battery Charging Hub)

Charger

Input
DJI 65W Portable Charger:
100-240 V (AC), 50-60 Hz, 2 A
DJI 100W USB-C Power Adapter:
100-240 V (AC), 50-60 Hz, 2.5 A

Output
DJI 65W Portable Charger:
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A
DJI 100W USB-C Power Adapter:
Max 100 W (total)
(When both ports are used, the max output power of one port is 82 W, and the charger will dynamically allocate the output power of the two ports according to the power load.)

Rated Power
DJI 65W Portable Charger: 65 W
DJI 100W USB-C Power Adapter: 100 W

Battery Charging Hub

Input
USB-C: 5-20 V, max 5 A

Output (power accumulation)
Battery Port: 12-17 V, 3.5 A

Output (charging)
Battery Port: 12-17 V, max 5 A

Output (USB)
USB-C:
5 V, 3 A
9 V, 5 A
12 V, 5 A
15 V, 5 A
20 V, 4.1 A

Charging Type
Three batteries charged in sequence.

Compatibility
DJI Air 3 Intelligent Flight Battery

Car Charger

Car Power Input:
12.7-16 V, 6.5 A, rated voltage 14 V (DC)

Output
USB-C:
5 V, 5 A
9 V, 5 A
12 V, 5 A
15 V, 4.3 A
20 V, 3.25 A
5-20 V, 3.25 A
USB-A:
5 V, 2 A

Rated Power
65 W

Charging Temperature
5^o to 40^o C (41^o to 104^o F)

Storage

Recommended microSD Cards
SanDisk Extreme PRO 32GB V30 U3 A1 microSDHC
Lexar 1066x 64GB V30 U3 A2 microSDXC
Lexar 1066x 128GB V30 U3 A2 microSDXC
Lexar 1066x 256GB V30 U3 A2 microSDXC
Lexar 1066x 512GB V30 U3 A2 microSDXC
Kingston Canvas GO Plus 64GB V30 U3 A2 microSDXC
Kingston Canvas GO Plus 128GB V30 U3 A2 microSDXC
Kingston Canvas React Plus 64GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 128GB V90 U3 A1 microSDXC
Kingston Canvas React Plus 256GB V90 U3 A1 microSDXC
Samsung EVO Plus 512GB V30 U3 A2 microSDXC

Item Dimension (L inchxW inchxH inch)
13 x 12 x 7

Weight
8 lbs

Warranty Information
1 Year
