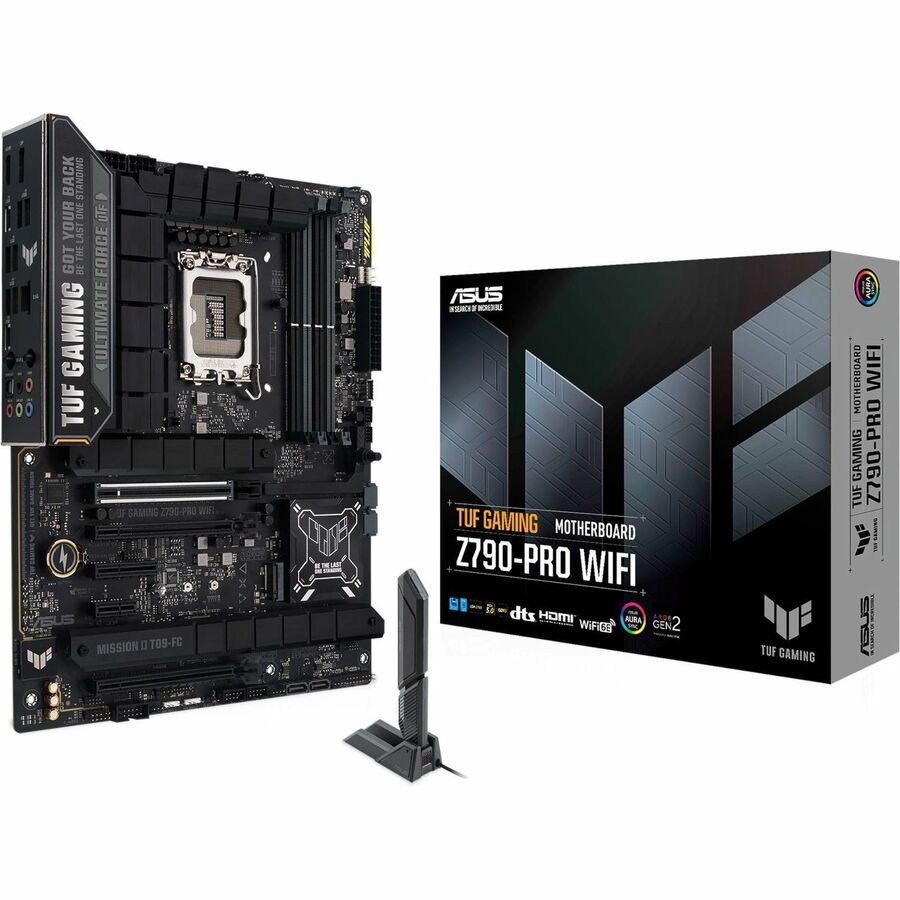

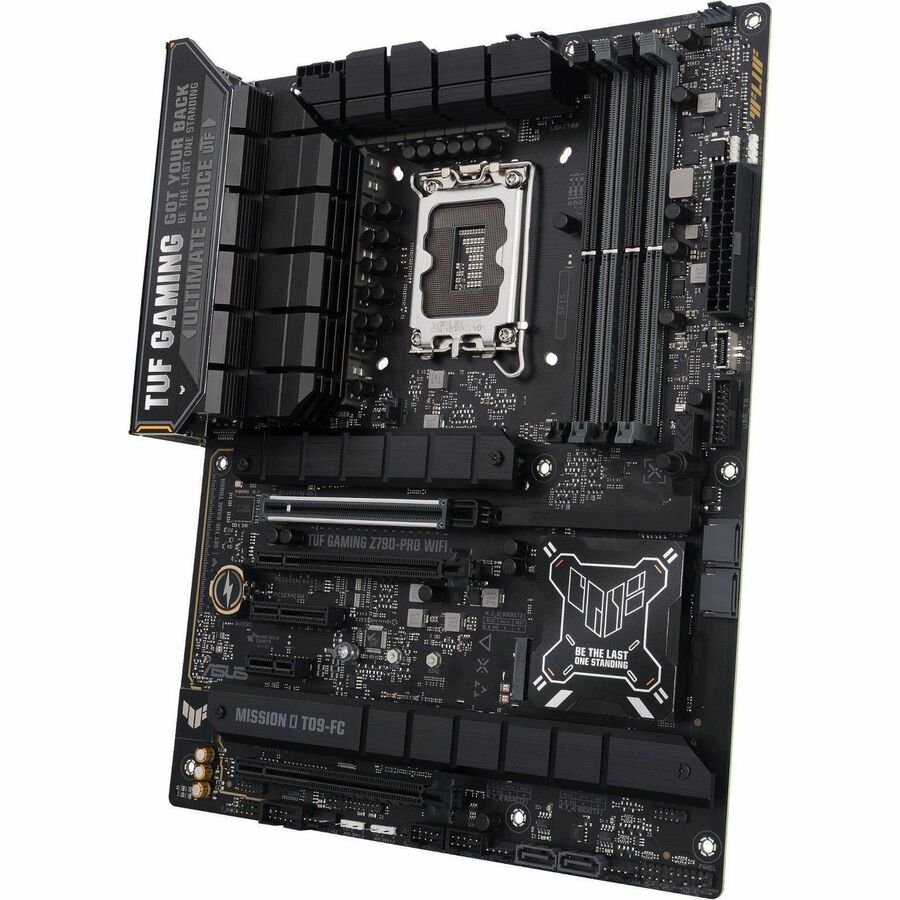

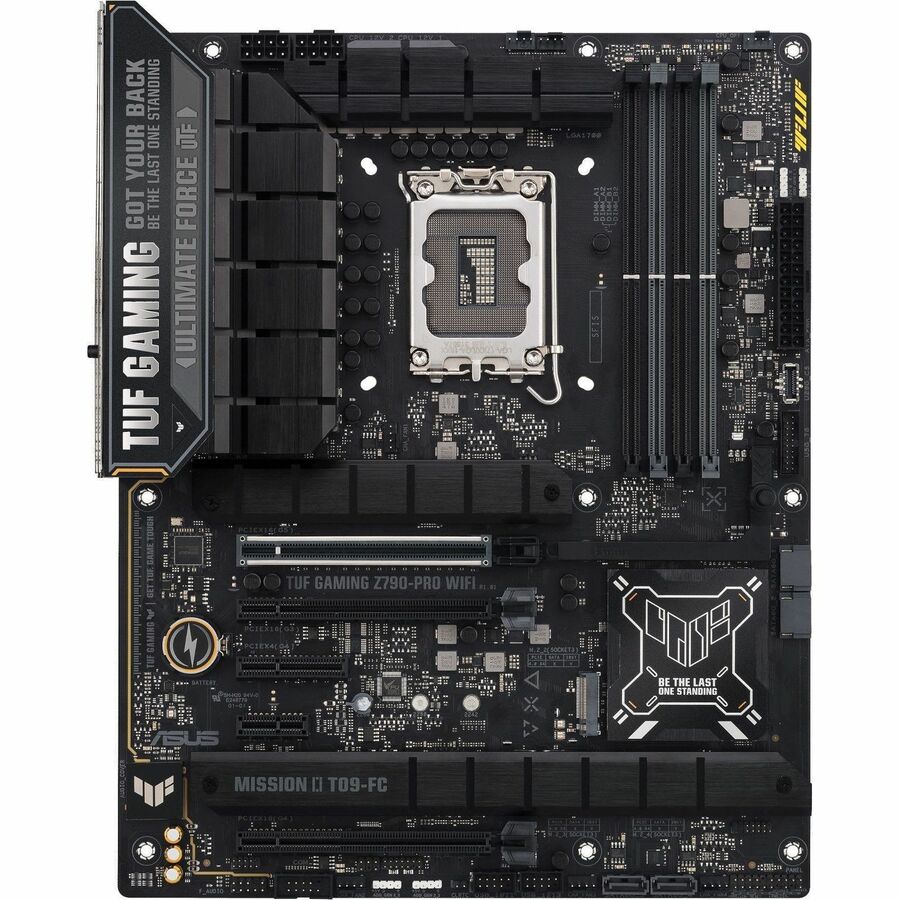

Asus TUF GAMING Z790-PRO WIFI Gaming Desktop Motherboard

Intel Z790 Chipset - Socket LGA-1700 - ATX

Core, Pentium Gold, Celeron Processor Supported - 192 GB  DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11ax - HDMI - DisplayPort - 4 x SATA Interfaces

Chipset Manufacturer : Intel

Chipset Model : Z790

Total Processor Supported : 1

Processor Socket : Socket LGA-1700

Processor Generation Supported :

12th Gen

13th Gen

14th Gen

Processor Supported :

Core

Pentium Gold

Celeron

Memory Technology :

DDR5 SDRAM

Number of Memory Slots : 4

Memory Form Factor :

DIMM

UDIMM

Maximum Memory Supported : 192 GB

Memory Speed Supported :

7800 MHz

7600 MHz

7400 MHz

7200 MHz

7000 MHz

6800 MHz

6600 MHz

6400 MHz

6200 MHz

6000 MHz

5800 MHz

5600 MHz

5400 MHz

5200 MHz

5000 MHz

4800 MHz

Controller Type : Serial ATA/600

RAID Supported : Yes

RAID Levels :

0

1

5

10

Onboard Video : CPU Dependent Video

Audio Channels : 7.1

Bluetooth : Yes

Bluetooth Standard : Bluetooth 5.3

Gigabit Ethernet : Yes

2.5Gigabit Ethernet : Yes

Wireless LAN : Yes

Wireless LAN Standard : IEEE 802.11ax

Number of Total Expansion Slots : 5

Total Number of PCI Express Slots : 5

Number of PCI Express x1 Slots : 1

Number of PCI Express x4 Slots : 1

Number of PCI Express x16 Slots : 3

PCI Express Standard :

PCI Express 4.0

PCI Express 5.0

PCI Express 3.0

Total Number of USB Ports : 8

S/PDIF : Yes

HDMI : Yes

HDMI Version : 2.1

DisplayPort : Yes

Number of Network (RJ-45) Ports : 1

Thunderbolt : Yes

Number of Thunderbolt 4 Ports : 1

Number of SATA Interfaces : 4

Number of M.2 Interfaces : 4

Total Number of Onboard USB Ports : 7

Number of Onboard USB 2.0 Ports : 4

Form Factor : ATX

Width : 12"

Depth : 9.6"

Product Overview
