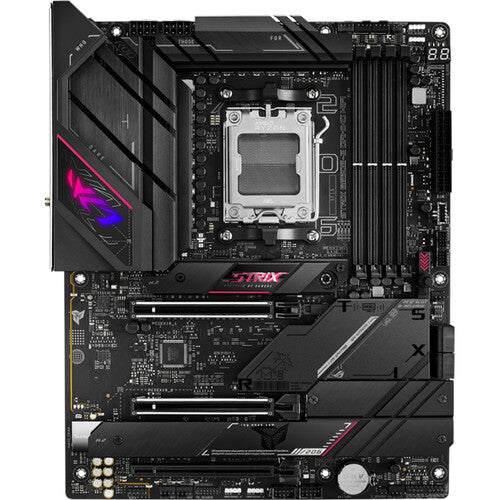

Asus ROG STRIX B650E-E GAMING WIFI AM5 ATX Motherboard

ASUS ROG STRIX B650E-E GAMING WIFI AM5 ATX Motherboard

ROG STRIX B650E-E GAMING WIFI
Take your build from B-tier to S with the Strix B650E-E PCIe 5.0 and DDR5 propel your rig into the future, and innovative Q-Design features make system setup a breeze. All of its perks are backed by a tenacious power solution, hefty heatsinks, and exclusive overclocking technologies to drive you to the next level with Ryzen 7000.

Robust 16-stage power solution rated to 70A per stage

Dynamic clocking to simultaneously maximize Ryzen gaming and compute performance

Both x16 slots and two on-board M.2 slots are all PCIe Gen 5-ready

6400 MT/s+, AMD EXPO, DRAM IC profiles, and AEMP

Faster-than-Gigabit WiFi unlocks access to the low-interference 6 GHz band

Easy installation for GPUs and SSDs, plus simple BIOS resets and updates

DIY-FRIENDLY FEATURES
PCIE SLOT Q-RELEASE
A physical button unlocks the first PCIe slots security latch with one press, greatly simplifying the process of detaching a PCIe card from the motherboard when its time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH
The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

CLEAR CMOS
The Clear CMOS button quickly resets BIOS settings to factory default. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK BUTTON
BIOS FlashBack is a safe and simple way to update BIOS. Just drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, plug it into the USB BIOS FlashBack port, and press the button. Updates can even be performed without having memory or a CPU installed.

CPU
AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors
Refer to www.asus.com for CPU support list.

Chipset
AMD B650

Memory
4 x DIMM, Max. 128GB, DDR5 6400+(OC)/6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Non-ECC, Un-buffered DDR5 Memory supports
On-Die ECC function

Graphics
1 x DisplayPort
1 x HDMI port
Supports max. 8K at 60Hz as specified in DisplayPort 1.4.
Supports max. 4K at 60Hz as specified in HDMI 2.1.

Expansion Slots
AMD Ryzen 7000 Series Desktop Processors
2 x PCIe 5.0 x16 slots (supports x16 and x8/x4 modes)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

Storage
Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)
AMD X670 Chipset
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.

Ethernet
1 x Intel 2.5Gb Ethernet
ASUS LANGuard

Wireless and Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.2
WiFi 6E 6GHz regulatory may vary between countries.

USB
Rear USB (Total 12 ports)
1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C)
4 x USB 2.0 ports
Front USB (Total 7 ports)
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Savitech SV3H712 AMP
- Rear optical S/PDIF out port
- Premium audio capacitors
- Audio cover

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port (1 x Type-C)
7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C)
4 x USB 2.0 ports
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Intel 2.5Gb Ethernet port
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
The rear panel Line out port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis.

Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
5 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports USB
1 x USB 3.2 Gen 2 connector (supports USB Type-C)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Aura RGB header
1 x CPU Over Voltage jumper
1 x Front Panel Audio header (AAFP)
1 x 20-3 pin System Panel header with
Chassis intrude function
1 x Thermal Sensor header
1 x Thunderbolt (USB4) header

Special Features
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-DIMM
- Q-LED (CPU red, DRAM yellow, VGA
white, Boot Device yellow green)
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- M.2 heatsink backplate
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Aura RGB header
- Addressable Gen 2 headers

Software Features
ROG Exclusive Software
- GameFirst VI
- ROG CPU-Z
- Sonic Studio III + Sonic Studio Virtual
Mixer + Sonic Suite Companion
- Sonic Radar III
- DTS Sound Unbound
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
TPU
DIGI+ VRM
Turbo app
PC Cleaner
MyAsus
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Dynamic OC Switcher
FlexKey

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Manageability
WOL by PME, PXE

Accessories
Cables
2 x SATA 6Gb/s cables
Additional Cooling Kit
1 x Thermal pad for M.2
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
1 x M.2 Q-Latch package
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG Strix thank you card
2 x Rubber Packages for M.2
Documentation
1 x User guide
Operating System
Windows 10 64-bit, Windows 11 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Item Dimension (L"xW"xH")
14 x 11 x 4

Weight
5.38 lbs

Warranty Information
3 Years
