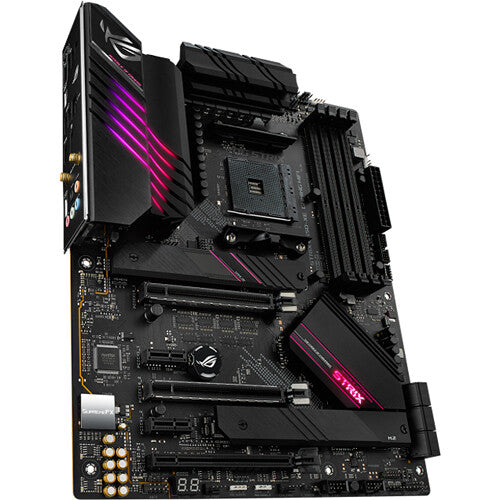

ASUS ROG Strix B550-XE GAMING WIFI AM4 ATX Motherboard

•AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

•Best gaming connectivity: PCIe® 4.0-ready, two onboard M.2 slots and four additional M.2 slots on the bundled ASUS Hyper M.2 x16 Gen 4 Card, USB 3.2 Gen 2 Type-C® plus HDMI™ 2.1 and DisplayPort™ 1.2 output

•Robust power solution: 14+2 power stages with ProCool power connector, high-quality alloy chokes, and durable capacitors

•Comprehensive cooling: Actively cooled VRM heatsinks with L-shaped Heatpipe and integrated aluminum I/O cover, plus dedicated M.2 heatsinks

•Superfast networking: Onboard WiFi 6 (802.11ax) and Intel® 2.5 Gb Ethernet with ASUS LANGuard

•Intuitive software: Easy-to-use UEFI BIOS and ASUS AI Networking make it easy to configure gaming builds

•DIY-friendly design: Includes pre-mounted I/O shield, BIOS FlashBack™, Q-Code and FlexKey

•Unmatched personalization: ASUS-exclusive Aura Sync RGB lighting, including Aura RGB headers and addressable Gen 2 RGB headers

•Industry-leading Gaming Audio: Audio USB Type-C®, AI Noise-Canceling Microphone, SupremeFX S1220A codec, DTS® Sound Unbound™ and Sonic Studio III for immersive audio


ROG Strix B550 Gaming series motherboards offer a feature set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCI Express® 4.0 interface. The flagship of the B550 motherboard range, ROG Strix B550-XE Gaming WIFI, offers robust power delivery and effective cooling, making it well-equipped to handle the popular 3rd Gen AMD Ryzen™ and the latest AMD Ryzen™ 5000 (Zen 3 architecture) processors.

Unleash Unlimited Performance

ROG Strix B550-XE Gaming WIFI provides robust power delivery and comprehensive cooling to handle the latest Ryzen processors. It also supports faster memory and superfast high-capacity storage, providing everything you need to create a PC that's ready to play in the big leagues. CPU
AMD AM4 Socket for AMD Ryzen^TM 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
Chipset
AMD B550
Memory
4 x DIMM, Max. 128GB, DDR4 4866(O.C)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
AMD Ryzen^TM 4000 G-Series Desktop Processors
4 x DIMM, Max. 128GB, DDR4 5100(O.C)/4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3600(O.C.)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
OptiMem II
Dual Channel Memory Architecture
ECC Memory (ECC mode) support varies by CPU.
Graphic
1 x HDMI 2.1(4K at 60HZ)
1 x DisplayPort 1.2
Graphics specifications may vary between CPU types.
Integrated Graphics Processor
Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX^TM Technology
Expansion Slots
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors
AMD B550 Chipset
1 x PCIe 3.0 x16 (x4 mode)
2 x PCIe 3.0 x1
2 x PCIe 4.0 x16 (x16 or dual x8)
2 x PCIe 3.0 x16 (x16 or dual x8)
Storage
AMD Ryzen^TM 4000 G-Series Desktop Processors :
AMD Ryzen^TM 5000 Series/ 3000 Series Desktop Processors :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
Total supports 2 x M.2 slot(s) and 6 x SATA 6Gb/s ports
1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
AMD B550 Chipset :
1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
Support Raid 0, 1, 10
6 x SATA 6Gb/s port(s),
LAN
Intel I225-V 2.5Gb Ethernet
ASUS LANGuard
Wireless Data Network
Intel Wi-Fi 6 AX200
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
Bluetooth
Bluetooth v5.1
BT 5.1 function will be ready in Windows 10 build 19041 or later.
Audio
- Rear audio USB Type-C port
- Audio Shielding
ROG SupremeFX7.1-Channel High Definition Audio CODEC S1220A
- Premium Japanese audio capacitors
- Audio Cover
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality120dBSNR stereo playback outputand113dBSNR recording input
- Supports up to 32-Bit/192kHz playback
Audio Feature :
- SupremeFX Shielding^TM Technology
USB Ports
3 x USB 3.2 Gen 2 port(s)(2 x Type-A +1 x USB Type-C)
1 x USB 2.0 port(s)(1 x audio USB Type-C )
4 x USB 2.0 port(s)(4 x Type-A)
Rear USB Port ( Total 8 )
Front USB Port ( Total 7 )
2 x USB 3.2 Gen 1 port(s)
4 x USB 2.0 port(s)
1 x USB 3.2 Gen 2 front panel connector port(s)
Software Features
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software Features
Armory Crate
- Aura Creator
- Aura Sync
Ai noise-canceling microphone
AI Suite 3:
- 5-way Optimization
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo APP
- EZ Update
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
ASUS Special Features
Aura Sync
- Standard RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS Q-Design
- ASUS Q-CODE
- ASUS Q-DIMM
- ASUS Q-LED (DRAM (yellow), CPU (red), VGA (white), Boot Device (yellow-green)
- ASUS Q-Slot
ASUS Thermal Solution
- Aluminum M.2 heatsink
ASUS EZ DIY
-BIOS Flashback^TM button
-BIOS FlashBack^TM LED
-Clear CMOS header
-Protocool
-Pre-mounted I/O shield
- SafeSlot
Rear audio USB Type-C connector
Back I/O Ports
3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C)
5 x USB 2.0 (1 for audio USB Type-C)
1 x BIOS FlashBack^TM Button(s)
1 x Intel I225-V 2.5Gb Ethernet
1 x DisplayPort
1 x HDMI
5 x Audio jack(s)
Internal I/O Ports
1 x M.2 Socket 1 with M key, type 2242/2260/2280/22110 storage devices support(SATA and PCIe 4.0 x4 mode)
1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (SATA and PCIE 3.0 x 4 mode)
1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C)
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
1 x Thunderbolt header(s)
1 x Q-Code
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
3 x Chassis Fan connector(s)
1 x AIO_PUMP connector
1 x AAFP connector
2 x Aura RGB Strip Header(s)
2 x Addressable Gen 2 header(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
6 x SATA 6Gb/s connector(s)
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x 4-pin ATX 12V Power connector(s)
1 x System panel(s)
1 x Thermal sensor connector(s)
1 x Clear CMOS jumper(s)
Accessories
1 x Hyper M.2 x16 Gen 4 Card
5 x M.2 SSD screw package(s)
3 x M.2 Rubber Package(s)
1 x ROG audio USB Type-C cable
1 ROG key chain
1 x Wi-Fi moving antenna
Users manual
4 x SATA 6Gb/s cable(s)
1 x Supporting DVD
1 x ROG Strix stickers
1 x Cable ties pack(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG Thank you card
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Operating System
Windows 10 64-bit
