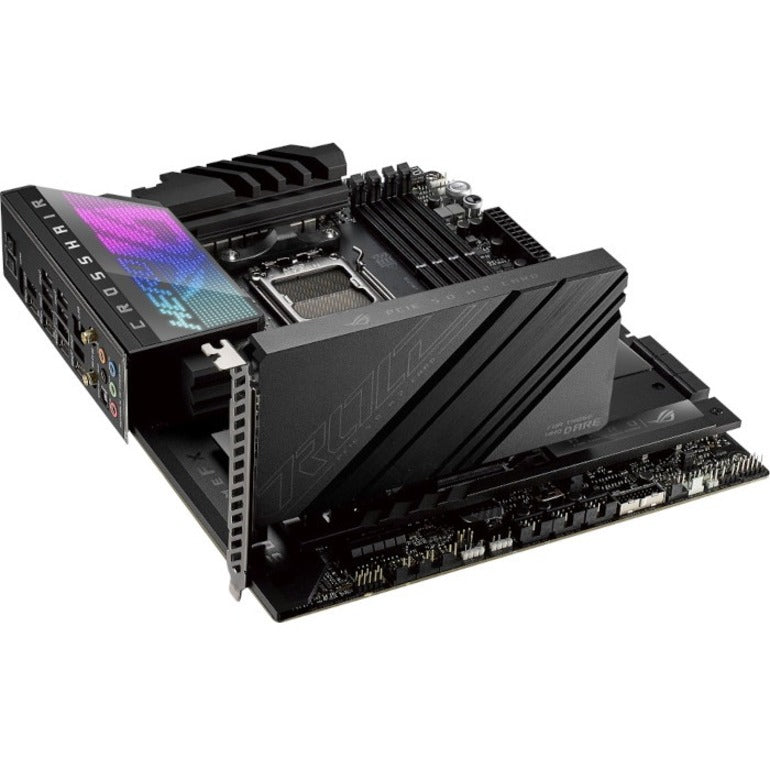

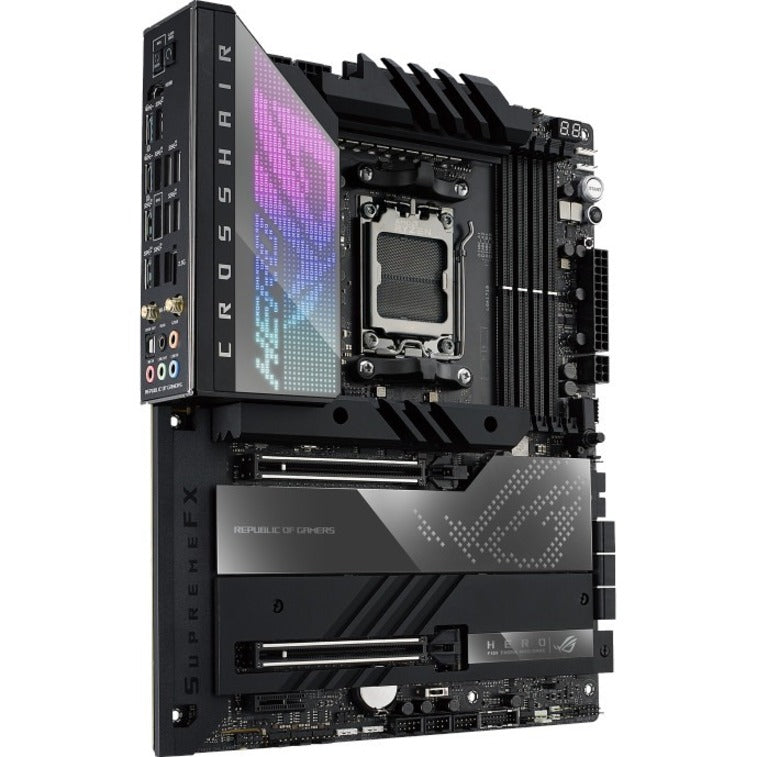

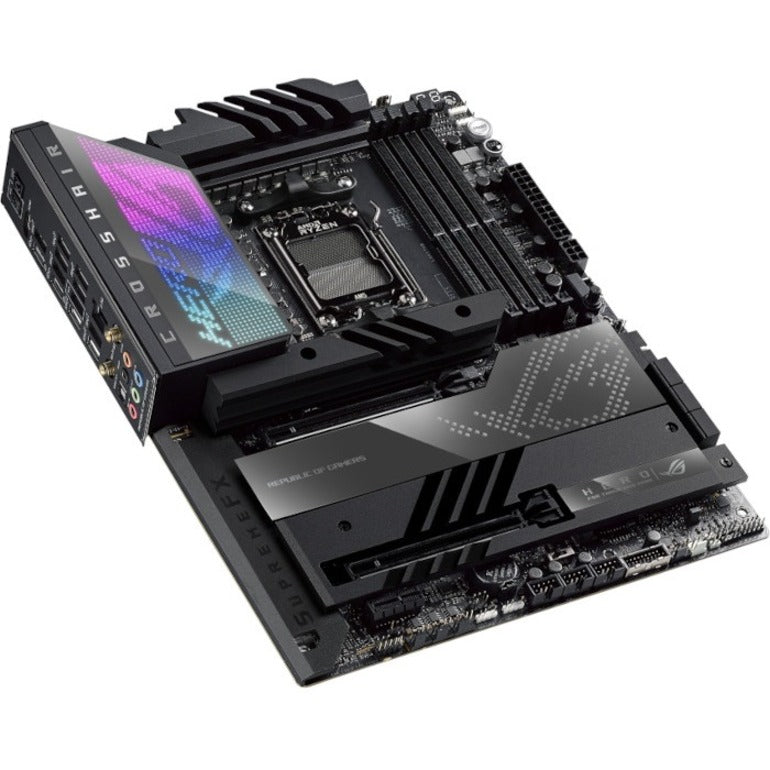

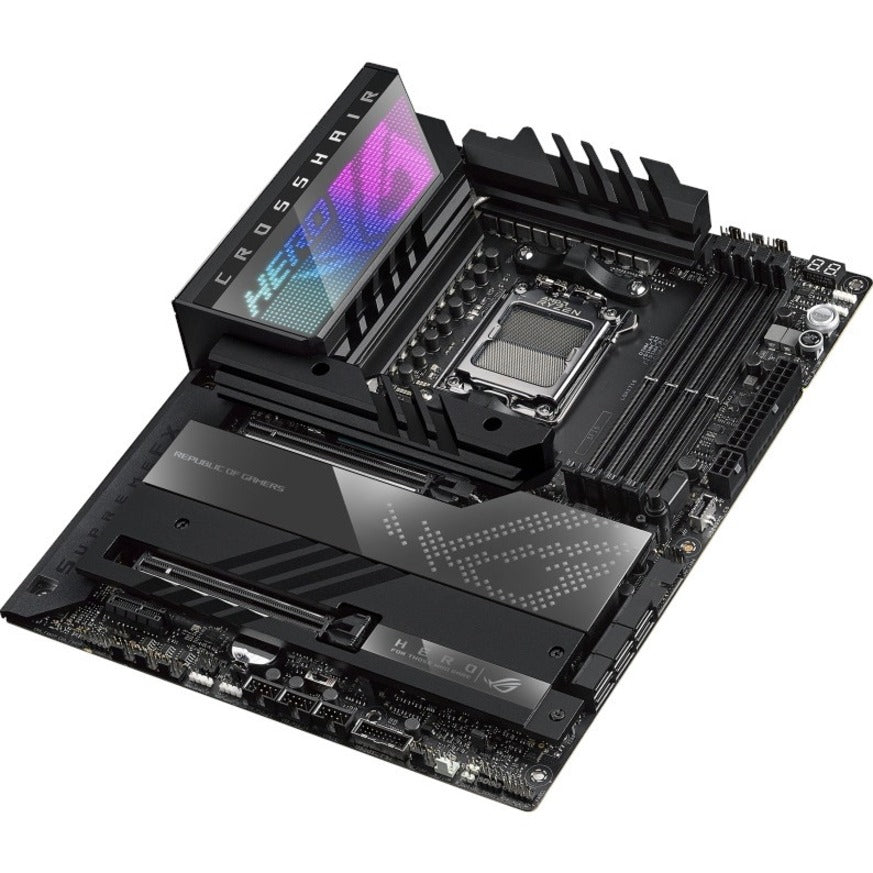

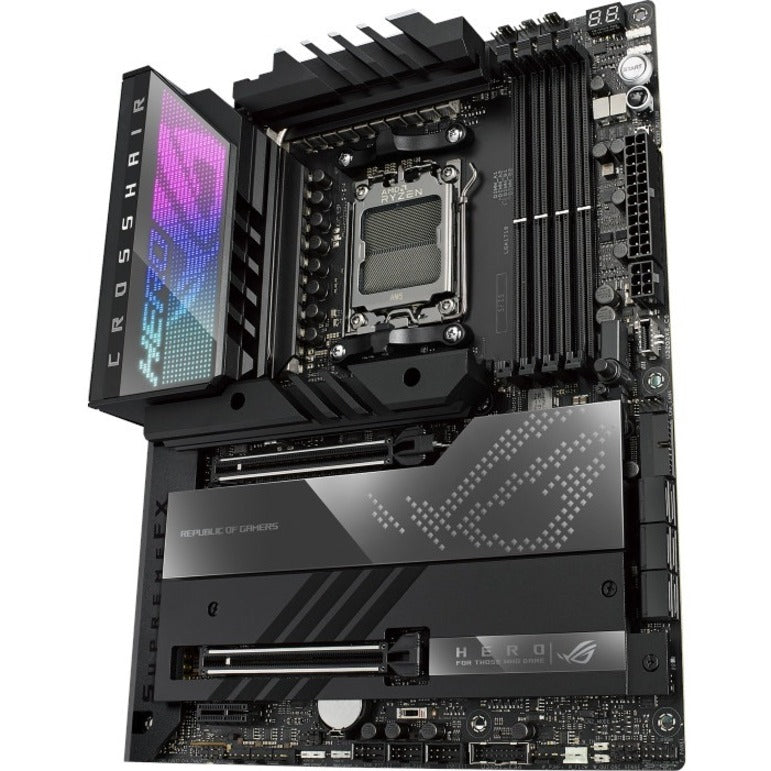

Asus ROG Crosshair X670E Hero AM5 DDR5 ATX Gaming Motherboard

ASUS ROG Crosshair X670E Hero ATX Motherboard

Unyielding power delivery and robust thermal management form the indelible tenets of its creed. Hyperspeed connectivity, comprehensive PCIE 5.0 and DDR5 support, and Polymo lighting add potent layers of build personalization on top. And the finishing touches are added by exclusive utilities and overclocking controls that allow you to uniquely flex the performance of Ryzen 7000 Series processors. Define your AM5 build with the ROG Crosshair X670E Hero.

PERFORMANCE
The grueling demands of the mightiest AMD Ryzen™ 7000 Series processors are no match for the eighteen 110A-stage power solution of the ROG Crosshair X670E Hero. Its massive headroom opens up incredible overclocking potential, bolstered by a combo attack of unique ROG technologies and champion-level DDR5 speeds.

COOLING
Every layer of the Hero's armor is painstakingly forged to keep it cool under stress. Enormous heatsinks have been strategically hewn to offer massive thermal headroom to the VRM, while both chipsets share a large central plate for widespread dissipation. Filling in the gaps, the M.2 slots have vast heat spreaders to let installed drives plow through intense PCIe 5.0 transfers without breaking a sweat.

CONNECTIVITY
The dual-chipset design of the ROG Crosshair X670E Hero brings a wealth of bandwidth for connected devices so that you can have it all. WiFi 6E, 2.5G LAN, and dual USB4 ports all grace the rear I/O, flanked by plenty of additional ports for all your devices. On-board SupremeFX audio delivers premium, immersive sound, now using an improved ESS quad-DAC amplifier. And under the hood, up to five PCIe M.2 drives can be loaded up for blazing fast load times and transfer speeds.

OPTIMIZATION
The ROG Crosshair X670E Hero provides a myriad of intuitive and flexible tools to optimize every aspect of your system.

---

General Information

Manufacturer:   ASUS Computer International

Manufacturer Part Number:   ROGCROSSHAIRX670EHERO

Brand Name:   Asus ROG

Product Line:   Crosshair

Product Model:   X670E HERO

Product Name:   Crosshair X670E HERO Gaming Desktop Motherboard

Specifications

Processor & Chipset

Chipset Manufacturer:   AMD

Chipset Model:   X670

Total Processor Supported:   1

Processor Socket:   Socket AM5

Processor Supported:   Ryzen 5

Processor Supported:   Ryzen 7

Processor Supported:   Ryzen 9

Memory

Number of Memory Slots:   4

Memory Form Factor:   DIMM

Memory Form Factor:   UDIMM

Maximum Memory Supported:   128 GB

Memory Technology:   DDR5 SDRAM

Memory Speed Supported:   4800 MHz

Memory Speed Supported:   5000 MHz

Memory Speed Supported:   5200 MHz

Memory Speed Supported:   5400 MHz

Memory Speed Supported:   5600 MHz

Memory Speed Supported:   5800 MHz

Memory Speed Supported:   6000 MHz

Memory Speed Supported:   6200 MHz

Memory Speed Supported:   6400 MHz

I/O Controller

Controller Type:   Serial ATA/600

RAID Supported:   Yes

RAID Levels:   1

RAID Levels:   0

RAID Levels:   10

Video

Onboard Video:   CPU Dependent Video

Audio

Audio Channels:   7.1

Network & Communication

Bluetooth:   Yes

Bluetooth Standard:   Bluetooth 5.3

2.5Gigabit Ethernet:   Yes

Wireless LAN:   Yes

Wireless LAN Standard:   IEEE 802.11 a/b/g/n/ac/ax

I/O Expansions

Number of Total Expansion Slots:   3

PCI Express Standard:   PCI Express 5.0

PCI Express Standard:   PCI Express 4.0

Total Number of PCI Express Slots:   3

Number of PCI Express x1 Slots:   1

Number of PCI Express x16 Slots:   2

Interfaces/Ports

Total Number of USB Ports:   12

Number of USB 3.2 Ports:   1

Number of USB 3.2 Gen 2 Type-A Ports:   8

Number of USB 3.2 Gen 2 Type-C Ports:   1

S/PDIF:   Yes

HDMI:   Yes

Number of Network (RJ-45) Ports:   1

Onboard Interfaces

Number of SATA Interfaces:   6

Number of M.2 Interfaces:   4

Total Number of Onboard USB Ports:   11

Number of Onboard USB 2.0 Ports:   6

Number of Onboard USB 3.2 Ports:   5

Physical Characteristics

Form Factor:   ATX

Width:   12"

Depth:   9.6"

Miscellaneous

Package Contents:

Crosshair X670E HERO Gaming Desktop Motherboard

1 x ARGB RGB Extension Cable

1 x RGB Extension Cable

4 x SATA 6Gb/s Cables

1 x PCIe 5.0 M.2 Card with Heatsink

1 x M.2 Screw package for PCIe 5.0 M.2 Card

1 x Thermal pad for M.2

1 x ASUS Wi-Fi Moving Antennas

3 x Rubber Packages for M.2 backplate

1 x Q-connector

1 x M.2 Q-Latch package

3 x M.2 Q-Latch packages for M.2 Backplate

1 x ROG Graphics Card Holder

1 x ROG Key Chain

1 x ROG Stickers

1 x ROG Thank you card

1 x USB Drive with utilities and Drivers

1 x User Guide

Brand Compatibility:   AMD

Environmentally Friendly:   Yes

Environmental Certification:   RoHS

Warranty

Limited Warranty:   3 Year
