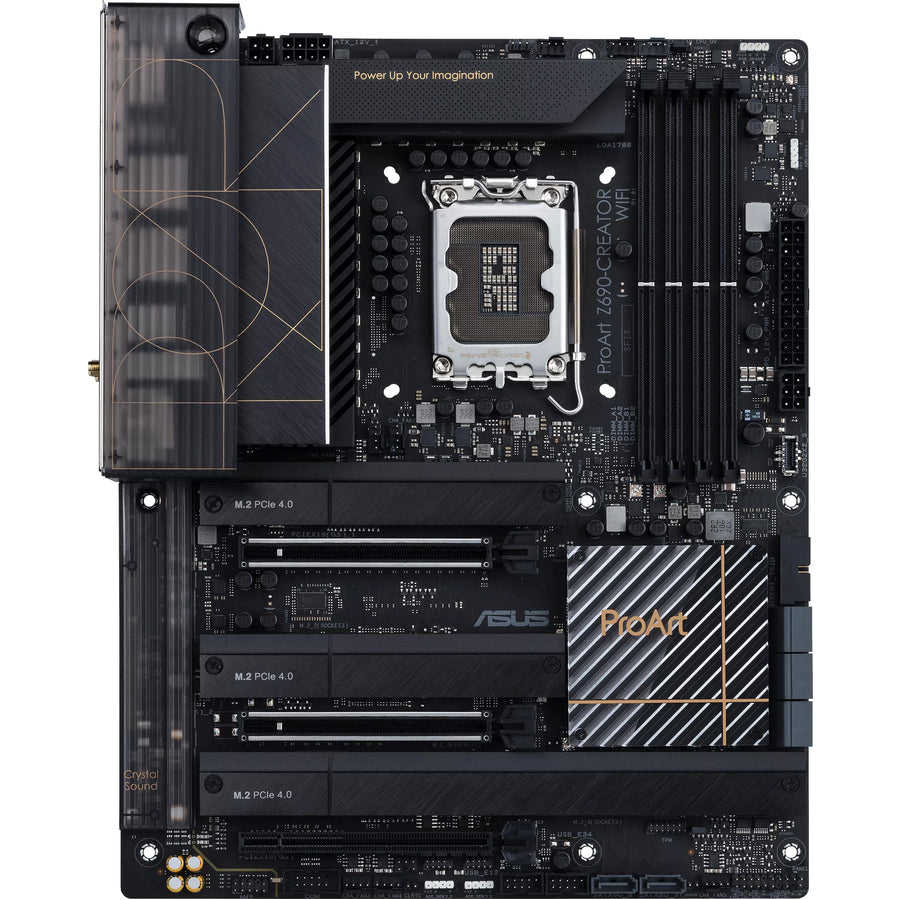

Asus ProArt Z690-CREATOR WIFI Desktop Motherboard

ASUS ProArt Z690-CREATOR WIFI Desktop Motherboard

Core i5, Core i7, Core i9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 8 x SATA Interfaces

Intel® Z690 LGA 1700 ATX motherboard built for creators, with PCIe® 5.0, DDR5 support, Thunderbolt™ 4, 10 Gb and 2.5 Gb Ethernet, WiFi 6E, four PCIe 4.0 M.2 slots with heatsinks, plus a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+ support

• Intel® Socket LGA 1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
• Future-proofed connectivity: Two Thunderbolt™ 4 Type-C® ports, 10 Gb & 2.5 Gb onboard Ethernet, WiFi 6E, four PCIe® 4.0 M.2 slots and a USB 3.2 Gen 2x2 front panel connector with Quick Charge 4+
• Next-gen performance: 16+1 power stages rated for 70 amps, PCIe 5.0 ready, and a DDR5 speed boost
• Intelligent optimization: ASUS-exclusive software and firmware that simplify setup and improve performance: AI Overclocking, AI Cooling, CreationFirst and Two-Way AI Noise-Cancelation
• Comprehensive thermal design: A massive VRM and chipset heatsink, aluminum M.2 heatsinks, seven 4-pin PWM fan headers and an AIO pump header
• Advanced security management: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
• Trusted stability: Tested for 24/7 operation, validated for extensive compatibility and equipped with SafeSlot and SafeDIMM for enhanced durability

Your Powerhouse for Creativity

ProArt Z690-Creator WiFi empowers creators of all levels by maximizing the performance of 12th Gen Intel® Core™ processors with powerful hardware and software, efficient cooling and lightning-fast connectivity including Thunderbolt™ 4, onboard 10 Gb and 2.5 Gb Ethernet, plus WiFi 6E.

Future-Proofed Connectivity

A comprehensive array of powerful I/O ports - including two Thunderbolt™ 4 ports plus 10 Gb and 2.5 Gb Ethernet ports- enables quick data transfers and extensive storage options with flexible, hassle-free connectivity.

Next-Gen Performance

With tailored CPU power delivery and support for the latest high-performance memory, ProArt Z690-Creator WiFi easily handles the demands of the latest 12th Gen Intel® Core™ processors. It features an intelligent VRM design that's rated for 70 amps, plus carefully selected components and memory layout optimizations for multithreaded tasks such as 3D animation, video rendering and software compiling.

• Teamed Power Stages

  16+1 power stages rated for 70 amps combine high-side and low-side MOSFETs and drivers into a single package, delivering the power and efficiency that the latest 12th Gen Intel Core processors demand.

• Digi+ Power Control

  The ASUS Digi+ voltage-regulator module (VRM) is one of the finest in the industry and ensures ultra-smooth power delivery to the CPU.

• ProCool II Power Connector

  The ProCool socket is built to exacting specifications to ensure flush contact with the PSU power lines, enabling lower impedance and better heat dissipation.

• Chokes & Capacitors

  Superior alloy chokes and durable capacitors are engineered to resist extreme temperatures, providing a higher level of performance than the industry standard.




Intelligent Optimization

ProArt Z690-Creator WiFi offers simple and flexible tools that enhance almost every aspect of your content-creation system, giving you the fast, intuitive control needed for efficient workflow. It features dynamic automated tuning with AI overclocking and AI cooling. In addition, CreationFirst software prioritizes and optimizes your network traffic for faster, lag-free online performance.
