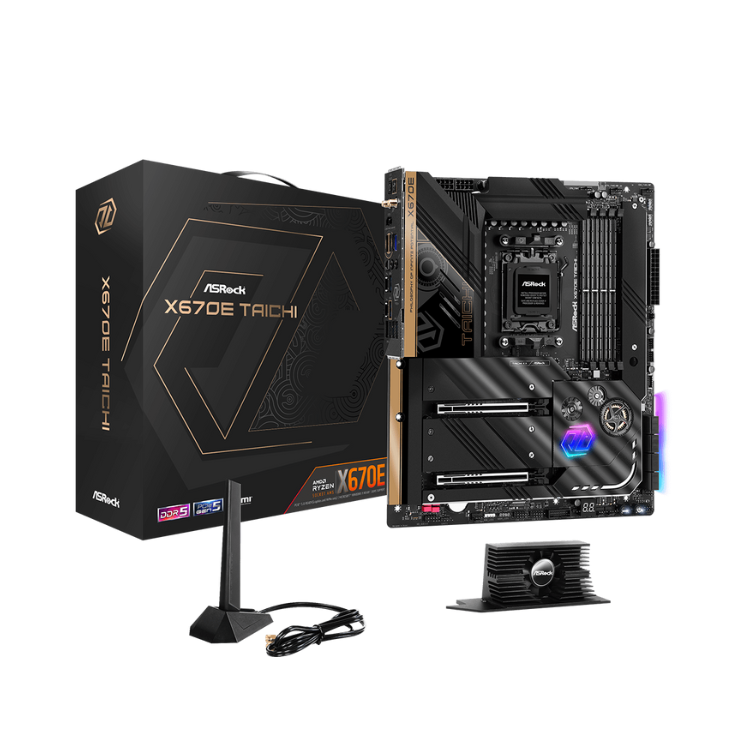

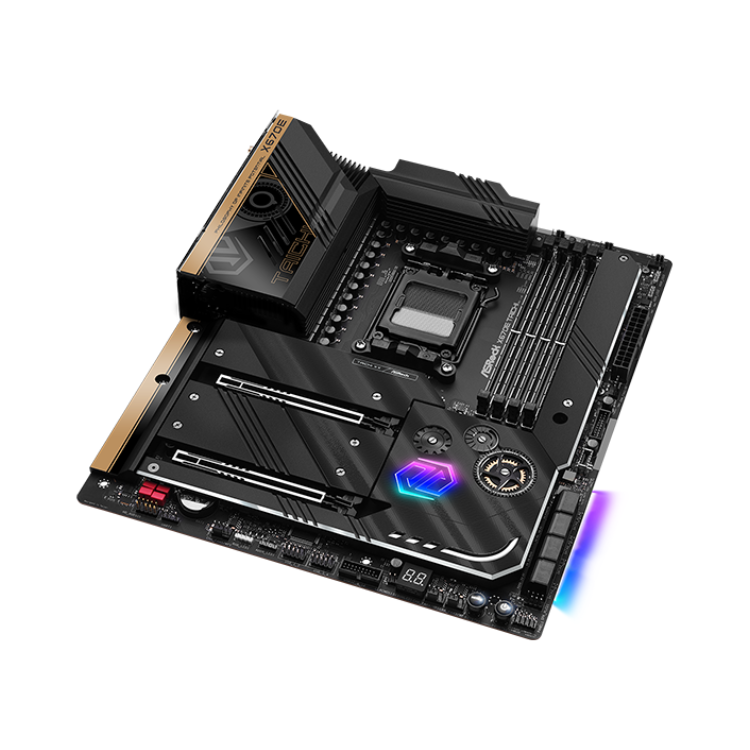

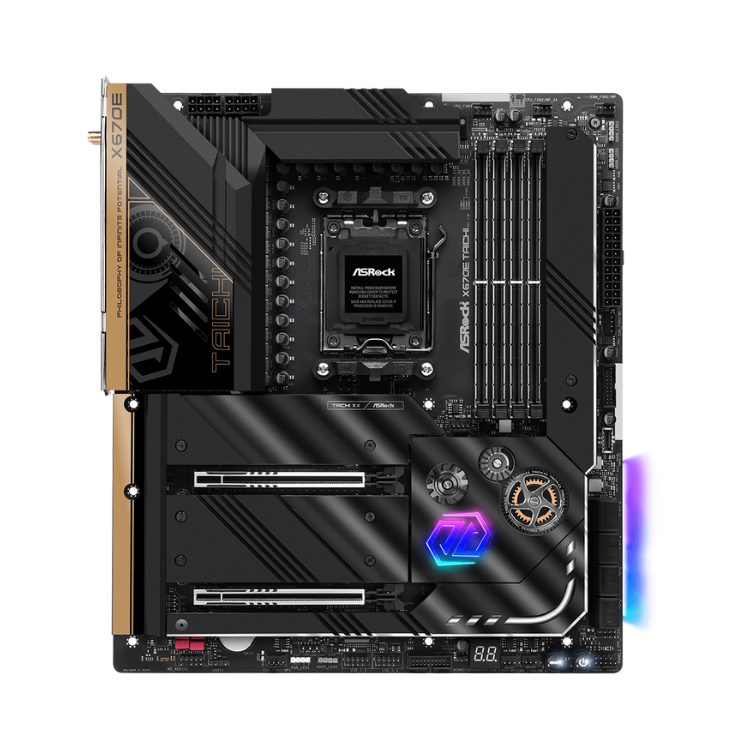

ASRock X670E Taichi X670 AM5 Max.128GB DDR5 EATX Motherboard

ASRock X670E Taichi X670 AM5 Max.128GB DDR5 EATX Motherboard

Regular price $526.99 USD
Regular price Sale price $526.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

ASRock X670E Taichi X670 AM5 Max.128GB DDR5 EATX  Motherboard

• Supports AMD Ryzen™ 7000 Series Processors

• 24+2+1 Phase Power Design, SPS for VCore+GT

• 4 x DDR5 DIMMs, supports up to 6600+(OC)

• 2 PCIe 5.0 x16

• Graphics Output Options: 2 USB4 Type-C, 1 HDMI

• Realtek ALC4082 5.1 CH HD Audio Codec,

     - ESS SABRE9218 DAC, WIMA Audio Caps

• 1 Blazing M.2 (PCIe Gen5x4),

     - 1 Hyper M.2 (PCIe Gen4x4 & SATA3),

     - 2 Hyper M.2 (PCIe Gen4x4),

     - 8 SATA3

• 2 USB4 Type-C (Rear),

     - 1 USB 3.2 Gen2x2 Type-C (Front),

     - 5 USB 3.2 Gen2 Type-A (Rear),

     - 7 USB 3.2 Gen1 (3 Rear, 4 Front)

• Killer 2.5G LAN

• Killer 802.11ax Wi-Fi 6E + Bluetooth


Unique Feature
Superb Productivity
- PCIe Gen5 (Graphics, M.2)
- Blazing M.2 Gen5 Fan Heatsink
- Dual Channel DDR5
- USB4 Type-C Ports (40 Gb/s)
Rock-Solid Durability
- Ultra Low-Loss PCB
- 24+2+1 Power Phase, 105A SPS with Enlarged Heatsink Armor
- Flexible Integrated I/O Shield
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
Ultrafast Gaming
- Killer 2.5G LAN, Killer 802.11ax Wi-Fi 6E Module
- Killer DoubleShotTM Pro
- ASRock Lightning Gaming Ports
EZ Update
- BIOS Flashback Button
- ASRock Auto Driver Installer



CPU
- Supports AMD Socket AM5 RyzenTM 7000 Series Processors
- Supports ASRock Hyper BCLK Engine


Chipset
- AMD X670


Memory
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 ECC/non-ECC, un-buffered memory up to 6600+(OC)
     - 1DPC 1R Up to 6600+ MHz (OC), 4800 MHz Natively.
     - 1DPC 2R Up to 6000+ MHz (OC), 4800 MHz Natively.
     - 2DPC 1R Up to 6000+ MHz (OC), 4000 MHz Natively.
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules


BIOS
- 256Mb AMI UEFI Legal BIOS with GUI support


Graphics
Integrated AMD RDNATM 2 graphics (Actual support may vary by CPU)
- 1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
- 2 x USB4, support HDCP 2.3 and max. resolution up to 8K 60HzNote
Note: Only the CPUs embedded graphics can be displayed through USB4 ports. If you want to display to a Type-C monitor, please use CPU models with embedded graphics.
USB4 graphics output may not be compatible with certain Type-C monitors. Please use graphics card outputs instead.


Audio
- 5.1 CH HD Audio with Content Protection (Realtek ALC4082 Audio Codec)
- WIMA Audio Capacitors (For Front Outputs)
- ESS SABRE9218 DAC for Front Panel Audio (130dB SNR)
- Individual PCB Layers for R/L Audio Channel
- Impedance Sensing on Rear Out port
- Nahimic Audio


LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Killer E3100G
- Supports Killer LAN Software
- Supports Killer DoubleShotTM Pro


Wireless LAN
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Dual-Band 2x2 160MHz with extended 6GHz band supportNote
- 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
- Supports Bluetooth + High speed class II
- Supports MU-MIMO
- Supports Killer LAN Software
- Supports Killer DoubleShotTM Pro
Note: Wi-Fi 6E (6GHz band) will be supported by Microsoft Windows 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
A 6GHz compatible router is required for 6E functionality.


Slots
CPU:
- 2 x PCIe 5.0 x16 Slots (PCIE1 and PCIE2), support x16 or x8/x8 modesNote
Chipset:
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- Supports AMD CrossFireTM
- 15mu Gold Contact in VGA PCIe Slot (PCIE1)
Note: Supports NVMe SSD as boot disks


Storage
CPU:
- 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) modeNote1
Chipset:
- 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280/22110 SATA3 6.0 Gb/s and PCIe Gen4x4 (64 Gb/s) modesNote1
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modeNote1
- 1 x Hyper M.2 Socket (M2_4, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) modeNote1
- 4 x SATA3 6.0 Gb/s Connectors
ASMedia ASM1061:
- 4 x SATA3 6.0 Gb/s ConnectorsNote2
Note1: Supports NVMe SSD as boot disks
Supports ASRock U.2 Kit
Note2: If M2_2 is occupied by a SATA-type M.2 device, SATA3_A1 will be disabled.


USB
- 2 x USB4 Type-C (Rear)
- 1 x USB 3.2 Gen2x2 Type-C (Front)
- 5 x USB 3.2 Gen2 Type-A (Rear)
- 7 x USB 3.2 Gen1 (3 Rear, 4 Front)
- 4 x USB 2.0 (Front)
Note: All USB ports support ESD Protection


Connector
- 1 x Power LED and Speaker Header
- 1 x RGB LED HeaderNote1
- 3 x Addressable LED HeadersNote2
- 1 x CPU Fan Connector (4-pin) Note3
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) Note4
- 6 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) Note5
- 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
- 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
- 1 x Front Panel Audio Connector (15mu Gold Audio Connector)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 1 x Dr. Debug with LED
- 1 x Power Button with LED
- 1 x Reset Button with LED
Note1: Supports in total up to 12V/3A, 36W LED Strip
Note2: Support in total up to 5V/3A, 15W LED Strip
Note3: CPU_FAN1 supports the fan power up to 1A (12W).
Note4: CPU_FAN2/WP_3A supports the fan power up to 3A (36W).
Note5: CHA_FAN1 to 6/WP support the fan power up to 2A (24W).
CPU_FAN2/WP_3A and CHA_FAN1 to 6/WP can auto detect if 3-pin or 4-pin fan is in use.

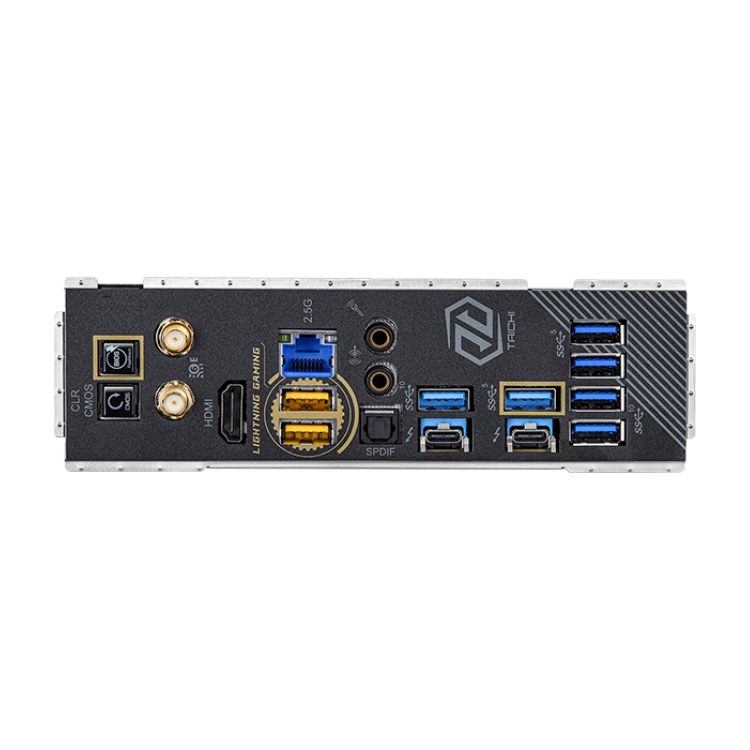

Rear Panel I/O
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x Optical SPDIF Out Port
- 2 x USB4 Type-C Ports (40 Gb/s)Note
- 5 x USB 3.2 Gen2 Type-A Ports (10 Gb/s) (ReDriver) (USB32_12 are Lightning Gaming Ports. USB32_3 supports Ultra USB Power.)
- 3 x USB 3.2 Gen1 Ports
- 1 x RJ-45 LAN Port
- 1 x Clear CMOS Button
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
Note: Supports USB PD 3.0 up to 9V at 3A (27W) / 5V at 3A (15W) charging


Software and UEFI
Software
- ASRock Motherboard Utility (A-Tuning)
- Killer Control Center
- ASRock Polychrome SYNC
UEFI
- ASRock Full HD UEFI
- ASRock Auto Driver Installer
- ASRock Instant Flash


Support CD
- Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar


Accessories
- 1 x User Manual
- 4 x SATA Data Cables
- 1 x Wireless Dongle USB Bracket
- 1 x Blazing M.2 Gen5 Fan Heatsink
- 1 x ASRock WiFi 2.4/5/6 GHz Antenna
- 4 x Screws for M.2 Sockets
- 1 x Standoff for M.2 Socket


Form Factor
- EATX Form Factor: 12.0-in x 10.5-in, 30.5 cm x 26.7 cm
- 8 Layer PCB


OS
- Microsoft Windows 10 64-bit / 11 64-bit


Certifications
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)
