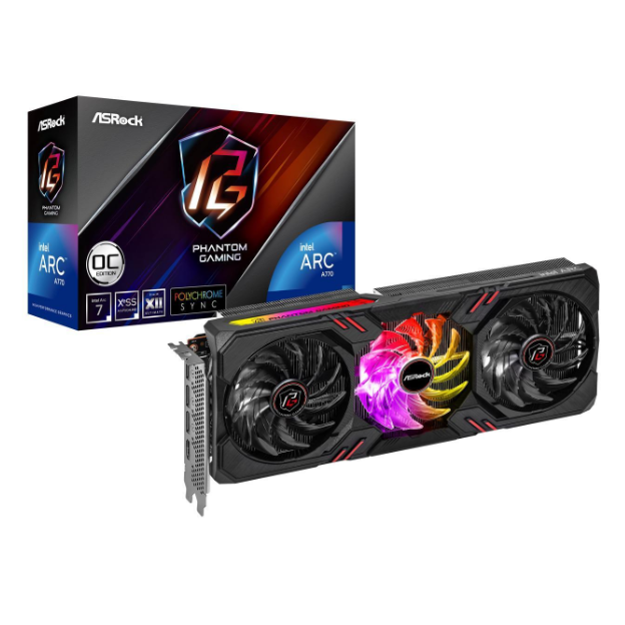

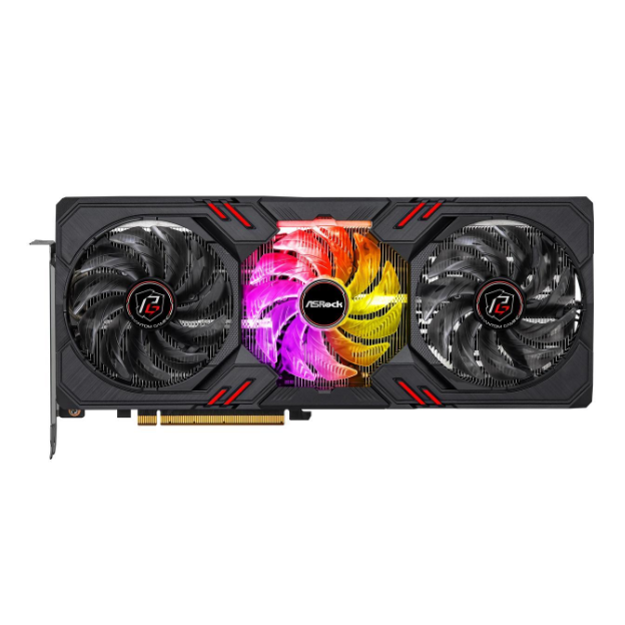

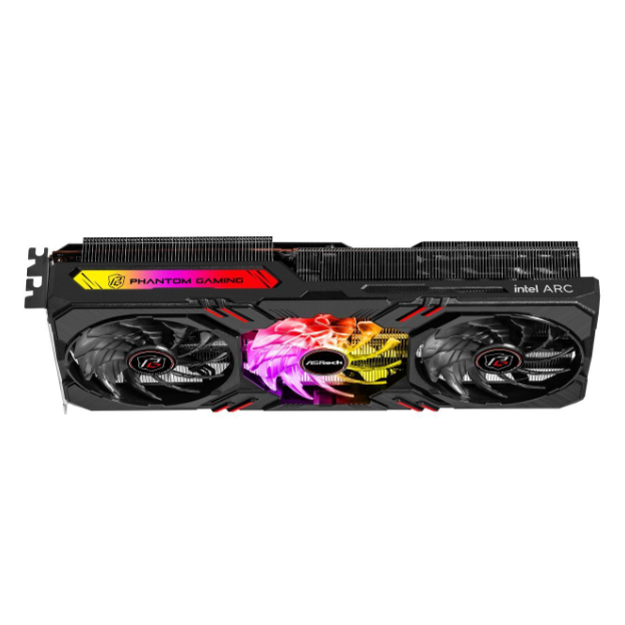

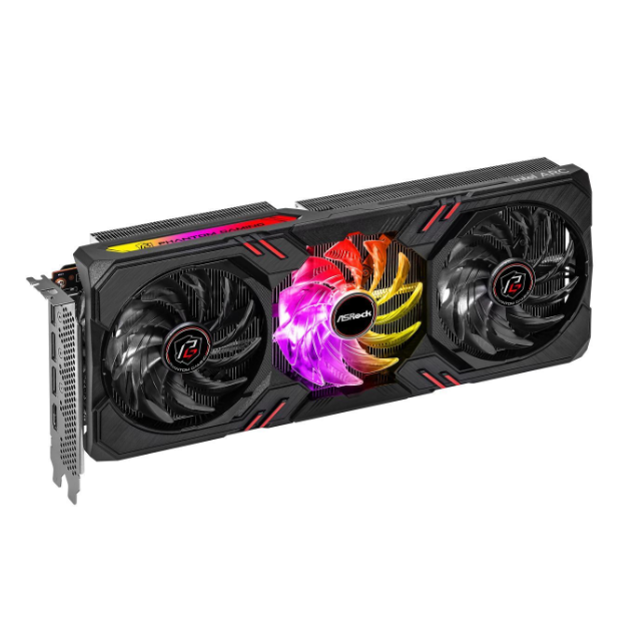

ASRock  Intel Arc A770 Phantom Gaming D 8GB OC GDDR6 Graphics Card

Clock: GPU / Memory
GPU Clock: 2200 MHz
Memory Clock: 16 Gbps

Key Specifications
-  Intel Arc A770 Graphics
-  8GB 256-bit GDDR6
-  Intel Xe HPG Microarchitecture
-  Intel Xe Super Sampling (XeSS)
-  DirectX 12 Ultimate
-  2 x 8-pin Power Connectors
-  3 x DisplayPort 2.0 / 1 x HDMI 2.1

Key Features
-  Polychrome SYNC
-  Phantom Gaming 3X Cooling System

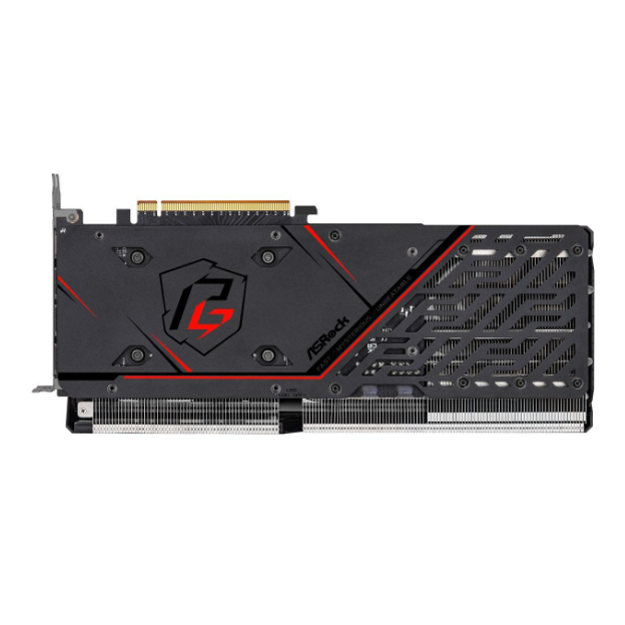

-  Stylish Metal Backplate
-  Striped Axial Fan
-  Ultra-fit Heatpipe
-  0dB Silent Cooling
-  Super Alloy Graphics Card
This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

OC Edition
Great Performance.
Delivers great performance which is more higher than reference cards based on the solid hardware design.

Phantom Gaming 3X Cooling System
For Cool And Silent.
Crafted for the best balance between the thermal efficiency and silence by all the details.

Ultra-Fit Heatpipe
Consolidated To Maximize The Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

Graphics Engine
- Intel Arc A770 Graphics

Bus Standard
- PCI Express 4.0 x16

DirectX
- 12 Ultimate

OpenGL
- 4.6

Memory
- 8GB GDDR6

Engine Clock
- 2200 MHz

Intel XMX Engines
- 512

Memory Clock
- 16 Gbps

Memory Interface
- 256-bit

Resolution
- Digital Max Resolution: 7680x4320

Interface

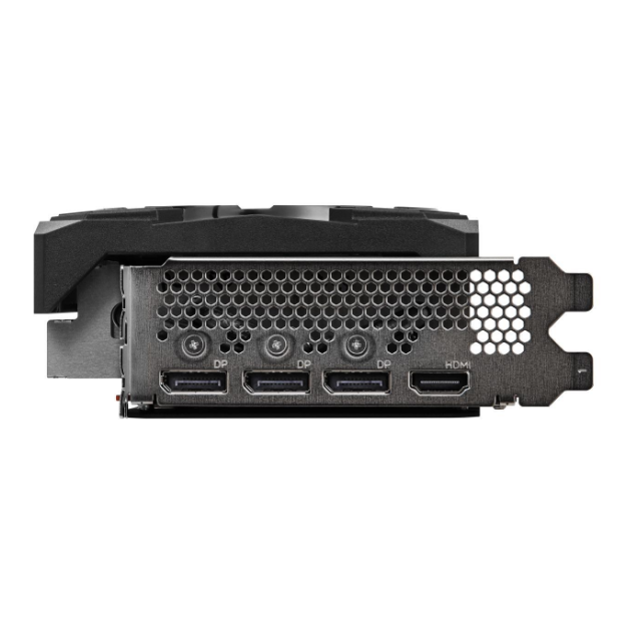

- 3 x DisplayPort 2.0 up to UHBR 10
- 1 x HDMI 2.1
Designed for DP 2.0, certification pending VESA CTS Release.

HDCP
- Yes

Multi-view
- 4

Recommended PSU
- 700W

Power Connector
- 2 x 8-pin

Accessories
- 1 x Quick Installation Guide

Item Dimension (L"xW"xH")
16 x 10 x 5

Weight
6 lbs

Warranty Information
3 Years
