ASRock

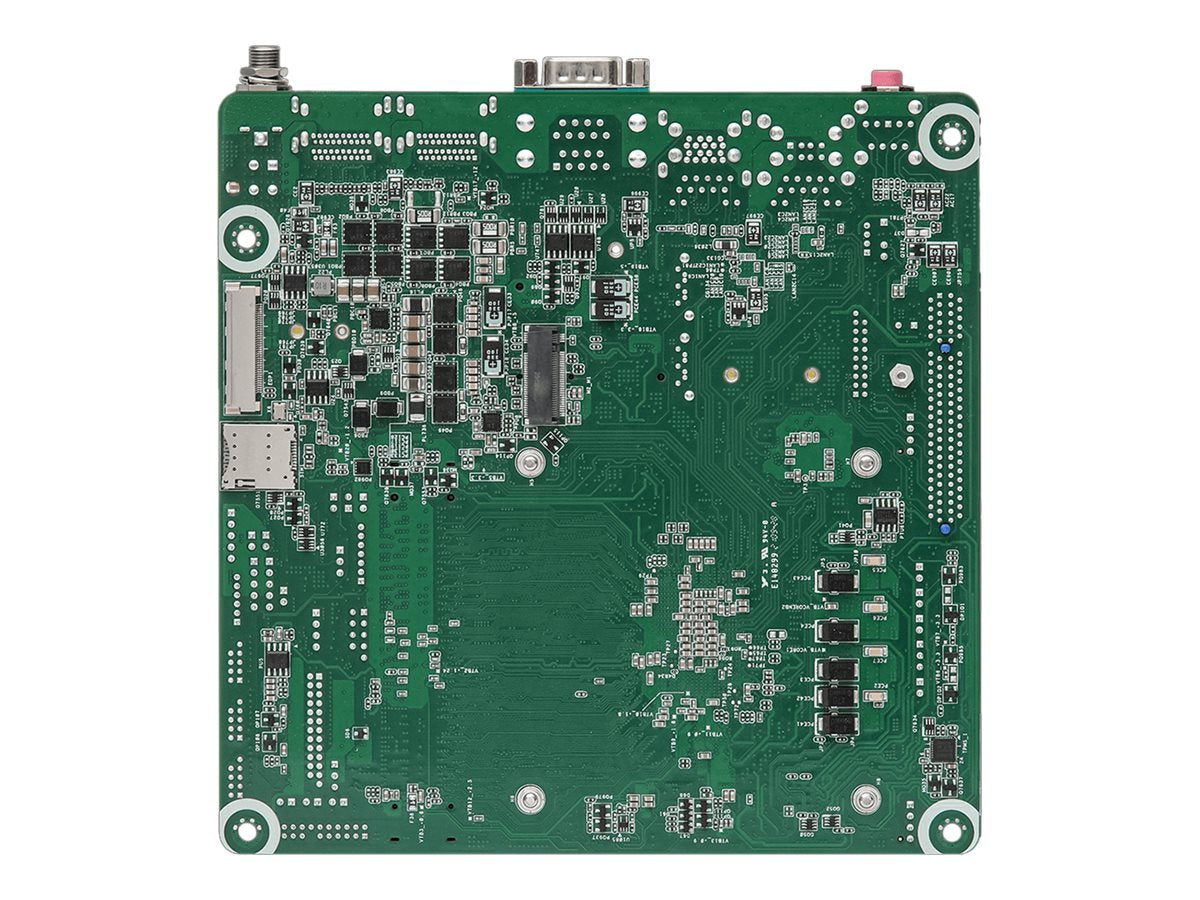

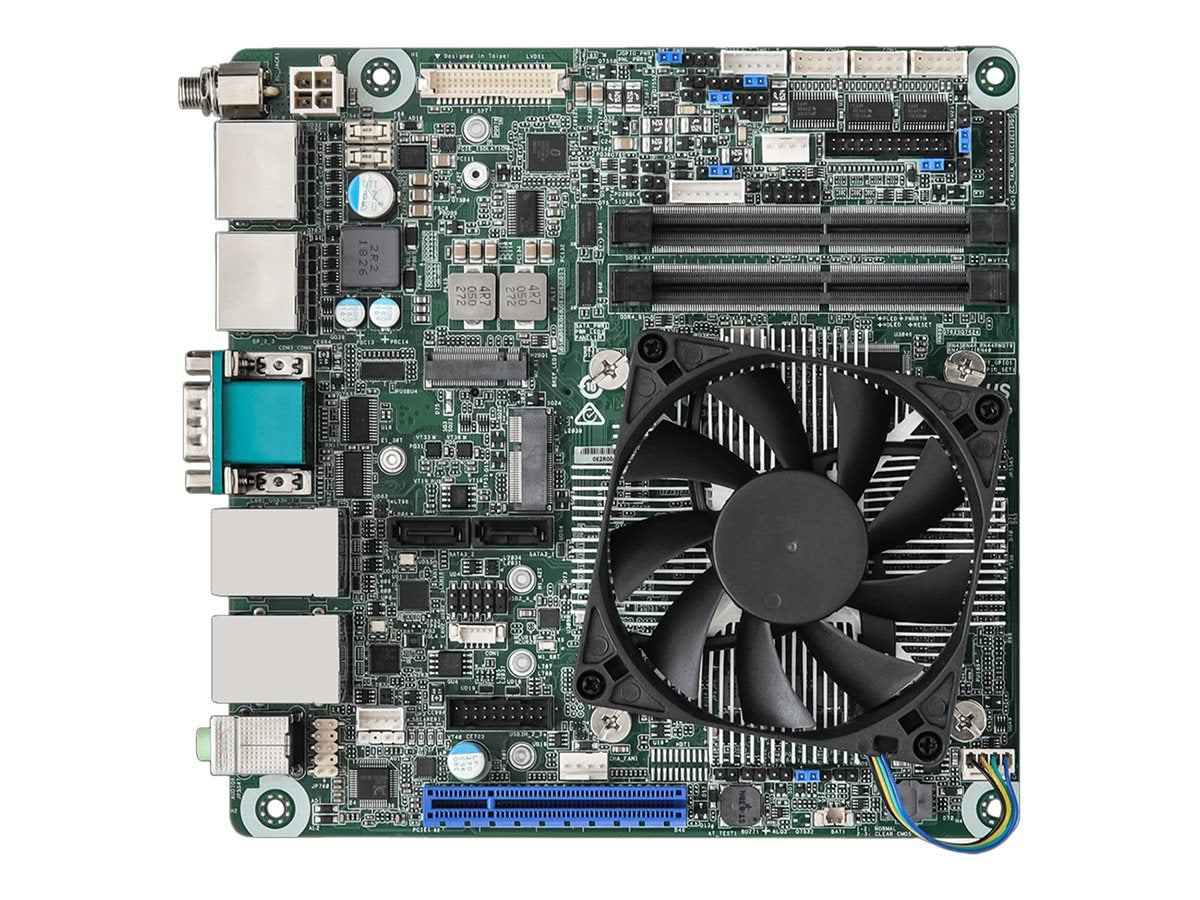

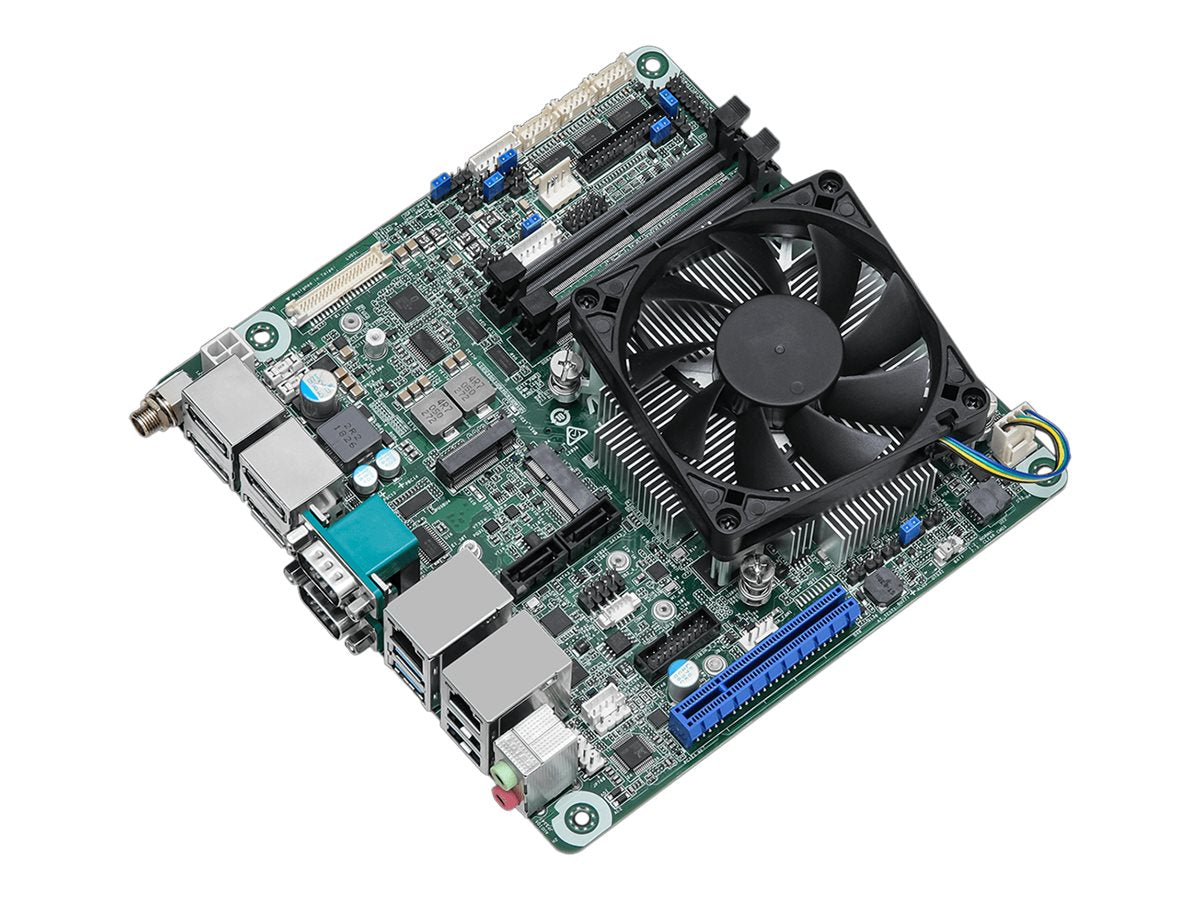

ASRock IMB-V2000V AMD Ryzen Embedded V2516 SoC Max64GB DDR4 Mini-ITX Motherboard

ASRock IMB-V2000V AMD Ryzen Embedded V2516 SoC Max64GB DDR4 Mini-ITX Motherboard

Regular price $507.99 USD
Regular price Sale price $507.99 USD
Sale Sold out
Tax included. Shipping calculated at checkout.

• AMD Ryzen™ Embedded V2000 SoC processors

• 2 x 260-pin ECC/non-ECC SO-DIMM DDR4 3200 MHz, up to 64GB (32GB per DIMM)

• 4 x USB 3.2 Gen1, 4 x USB 2.0, 1 x M.2 Key E, 1 x M.2 Key M, 1 x M.2 Key B, 1 x PCIe x8, 5 x COM, 2 x SATA3

• 1 x Realtek 1 Gigabit LAN (Support DASH), 1 x Realtek 2.5 Gigabit LAN

• Support Quad display, 1 x LVDS, 1 x eDP, 3 x DP 1.2, 1 x DP 1.4

• TPM header

• Support DASH, Teaming function

• 12~28V DC-In (Lockable DC Jack)

Form Factor
Dimensions
Mini-ITX (6.7-in x 6.7-in x 1.5-in)
Processor System
CPU
AMD RyzenTM Embedded V2000 SoC processors, up to 54W
-IMB-V2000V(V2516, 2.1GHz, 10-25W)
Chipset
SoC
BIOS
AMI SPI 256 Mbit
Memory
Technology
Dual Channel ECC/non-ECC DDR4 3200 MHz
Capacity
64GB (32GB per DIMM)
Socket
2 x 260-pin SO-DIMM
Graphics
Controller
AMD RadeonTM Graphics
DisplayPort
3 x DP 1.2a, Max resolution up to 3840x2160 at 60Hz
1 x DP 1.4, Max resolution up to 5120x2880 at 120Hz
LVDS
LVDS shared with DP_1
Dual channel 24 bit up to 1920 x 1200 at 60Hz
eDP
eDP shared with DP_0
Max resolution up to 3840x2160 at 60Hz
MultiDisplay
Quad Display
Expansion Slot
PCIe
1 x PCIe x8 (Gen3)
SIM Socket
1x SIM socket connected to M.2 key B
M.2
1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
1 x M.2 (Key B, 3042/3052) with PCIe x2/USB 3.2 and SIM for 4G/5G
Audio
Interface
Realtek ALC897 HD , High Definition Audio. Mic-In / Line-Out
Ethernet
Controller/ Speed
LAN1: Realtek RTL8125BG with 10/100/1000/2500 Mbps
LAN2: Realtek R8111EPV with 10/100/1000 Mbps
Support DASH, Teaming function
Connector
2 x RJ-45
Rear I/O
DisplayPort
3 x DP 1.2a, 1 x DP 1.4
Ethernet
1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
USB
2 x USB 3.2 (Gen1), 2 x USB 2.0
Audio
2 (Mic-in, Line-out)
COM
1 x COM (RS-232)
1 x COM (RS-232/422/485)
DC Jack
1 (Screw Type)
Internal Connector
USB
2 x USB 3.2 Gen1 (1 x USB 3.2 Gen1 header)
2 x USB 2.0 (1 x 2.54 pitch header)
COM
3 x COM (RS-232)
GPIO
8 x GPI, 8 x GPO
TPM
TPM 2.0 header
LVDS
1
eDP
1
SATA PWR Output
1
Speaker Header
1
Storage
M.2
1 x M.2 (Key M, 2242/2260/2280) with SATA3 and PCIe x4 for SSD
SATA
2 x SATA3 (6Gb/s)
Watchdog Timer
Output
From Super I/O to drag RESETCON
Interval
256 Segments, 0, 1, 2, ...255sec
Power Requirements
Input PWR
12 to 28V DC-In with 4-pin wafer PWR cable or DC Jack (Screw Type)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Operating Temp
0oC to 60oC
Storage Temp
-40o C to 85o C
Operating Humidity
5% to 90%
Storage Humidity
5% to 90%
Item Dimension (L inchxW inchxH inch)
25 x 12 x 18

Weight
39.00 lb

Warranty Information
26 months
