Asrock

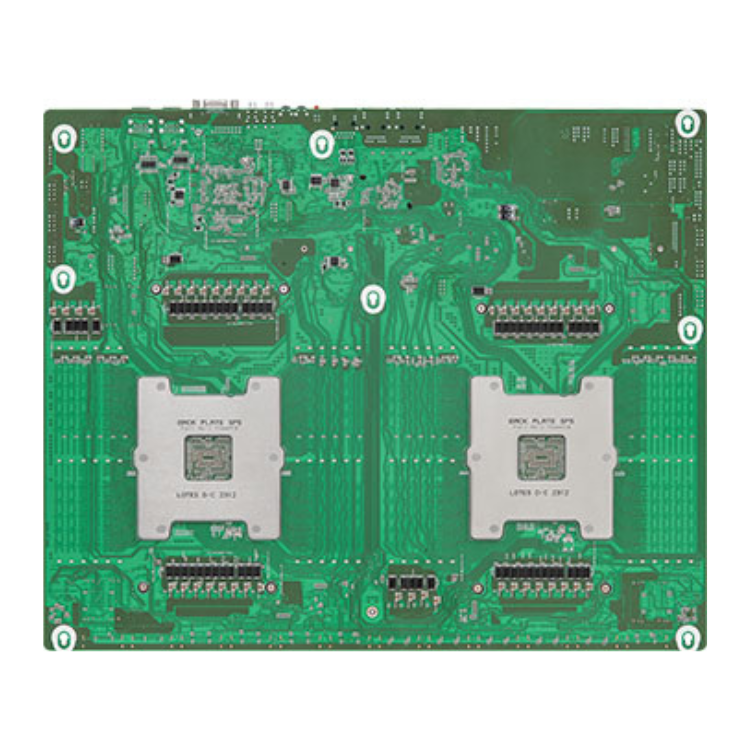

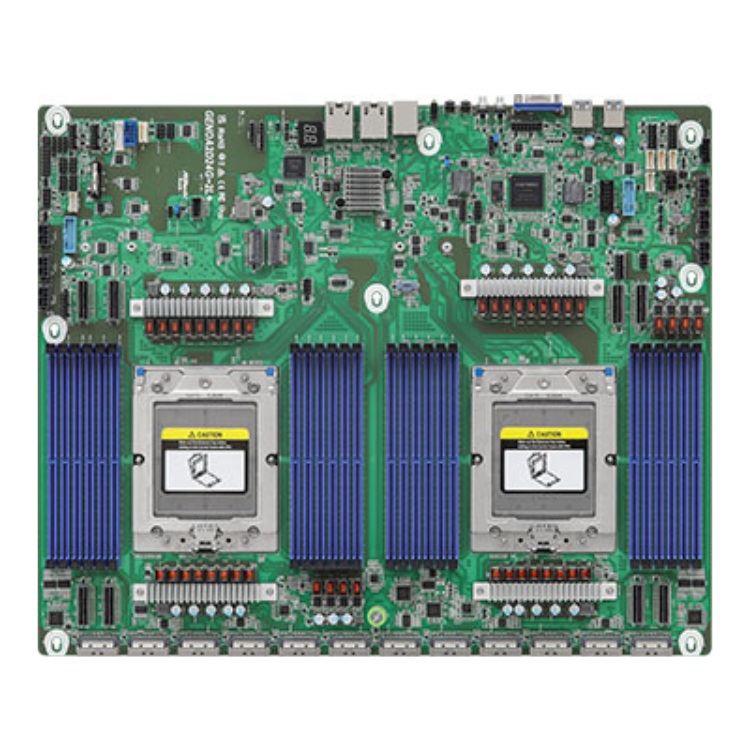

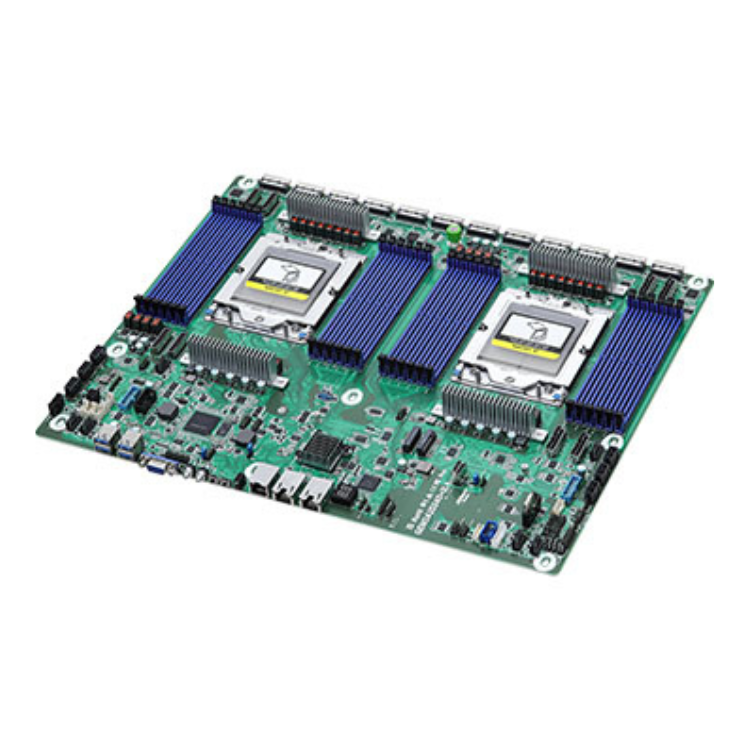

ASRock GENOA2D24G-2L+ SoC SP5 LGA6096 DDR5 Proprietary Motherboard

ASRock GENOA2D24G-2L+ SoC SP5 LGA6096 DDR5 Proprietary Motherboard

Regular price $1,299.99 USD
Regular price Sale price $1,299.99 USD
Sale Sold out
Shipping calculated at checkout.

ASRock GENOA2D24G-2L+ SoC SP5 LGA6096 DDR5 Proprietary Motherboard

Brown Box- Bulk Packaging

  • Proprietary (16.93"x 13.78")
  • Dual Socket SP5 (LGA 6096), supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
  • 12+12 DIMM slots (1DPC), supports DDR5 RDIMM, RDIMM-3DS
  • 12 MCIO (PCIe5.0 / CXL1.1 x8), 4 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s)
  • 2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s), 2 MCIO (PCIe5.0 x8)
  • Supports 2 M.2 (PCIe3.0 x4 or SATA 6Gb/s)
  • Up to 34 SATA 6Gb/s
  • 2 RJ45 (1GbE) by Intel i350
  • Remote Management (IPMI)


Physical Status
Form Factor
Proprietary


Processor System
CPU
Supports AMD EPYC 9004 (with AMD 3D V-Cache Technology) and 97x4 series processors
Socket
Dual Socket SP5 (LGA 6096)
Chipset
System on Chip


System Memory
Supported DIMM Quantity
12+12 DIMM slots (1DPC)
Supported Type
Supports DDR5 288-pin RDIMM, RDIMM-3DS
Max. Capacity per DIMM
RDIMM: 96GB (2R)
RDIMM-3DS: 512GB (2S8Rx4)
Max. DIMM Frequency
4800 MHz
Voltage
1.1V


Other PCIe Expansion Connectors
M.2 slot
M2_1 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor CPU0
M2_2 (PCIe3.0 x4 or SATA 6Gb/s), supports 22110/2280 form factor CPU1
Others
6 MCIO (PCIe5.0 / CXL1.1 x8) CPU0
2 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s) CPU0
2 MCIO (PCIe5.0 x8 or 8 SATA 6Gb/s) CPU0
6 MCIO (PCIe5.0 / CXL1.1 x8) CPU1
2 MCIO (PCIe5.0 / CXL1.1 x8 or 8 SATA 6Gb/s) CPU1
2 MCIO (PCIe5.0 x8) CPU1
MCIO9, 10 support PCIe only while installing 2 processors


SATA/SAS Storage
PCH Built-in Storage
AMD EPYC 9004 (Up to 32 SATA 6Gb/s):
4 MCIO
Additional SATA Controller
ASM1061 (2 SATA 6Gb/s):
2 M.2
Ethernet
Additional GbE Controller
Intel i350: 2 RJ45 (1GbE)


Server Management
BMC Controller
ASPEED AST2600
IPMI Dedicated GLAN
1 Realtek RTL8211F for dedicated management GLAN


Graphics
Controller
ASPEED AST2600
VRAM
DDR4 512MB

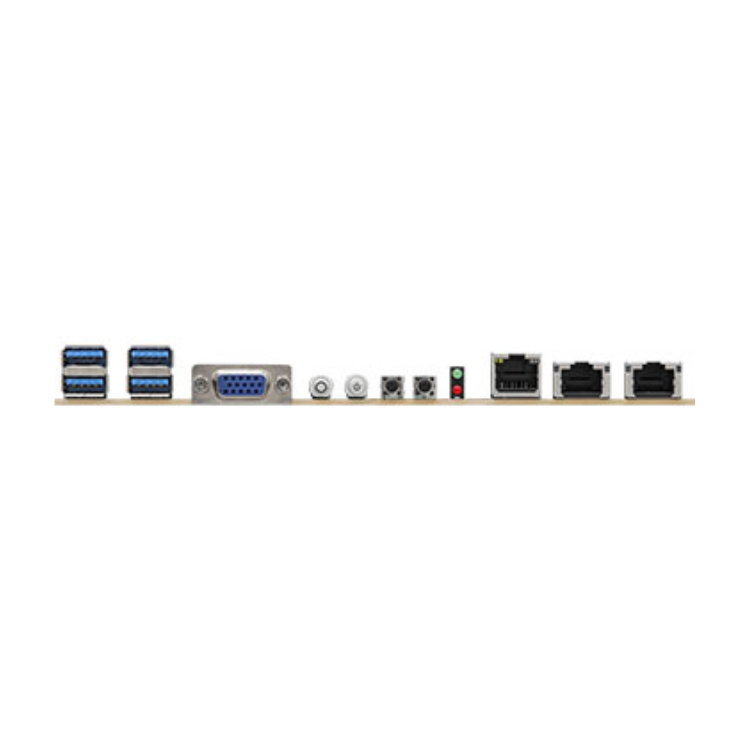

Rear I/O
UID Button/LED
1 UID button w/ LED
Other Button/LED
1 PWR button, 1 RST button, 1 NMI button, 1 HDD LED, 1 SYS LED
VGA Port
1 DB15 (VGA)
USB 3.2 Gen1 Port
4 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (1GbE)
1 dedicated IPMI


Internal Connector/Headers
Power Connector
6 Micro-hi (8-pin, ATX 12V), 1 Micro-Fit (4-pin, ATX PSU signal) w/ ATX 24-pin adapter cable
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
VGA header
1
Fan Header
6 (6-pin)
TPM Header
1 (13-pin,SPI)
SGPIO Header
4
HSBP
1
SMBus header
4
PMBus header
1
IPMB Header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
2 (19-pin, 2 USB3.2 Gen1)
NMI Header
1


LED Indicators
Standby PWR LED 5vsb
1 (5VSB)
80 Debug Port LED
1
Fan Fail LED
6
BMC heartbeat LED
1


System BIOS
BIOS Type
AMI UEFI BIOS 256 Mb (32MB) SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 6.4 and about compliance wake up events, SMBIOS 3.5.0 and above, Plug and Play(PnP)


Hardware Monitor
Temperature
CPU, MB, Card side Temperature Sensing
Fan
Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
Fan Multi-Speed Control
Voltage
P0_VDDCR_CPU0, P0_VDDCR_CPU1, P0_VDDCR_SOC, P0_VDD_18_DUAL, P0_VDD_11_S3, P0_VDDIO, P1_VDDCR_CPU0, P1_VDDCR_CPU1, P1_VDDCR_SOC, P1_VDD_18_DUAL, P1_VDD_11_S3, P1_VDDIO, +BAT, +12V, +3VSB, +5VSB


Environment
Temperature
Operation temperature: 10oC - 35oC / Non operation temperature: -40oC - 70oC
Humidity
Non operation humidity: 20% - 90% ( Non condensing)
Item Dimension (L"xW"xH")
14 x 12 x 3

Weight
4 lbs

Warranty Information
36 Months
