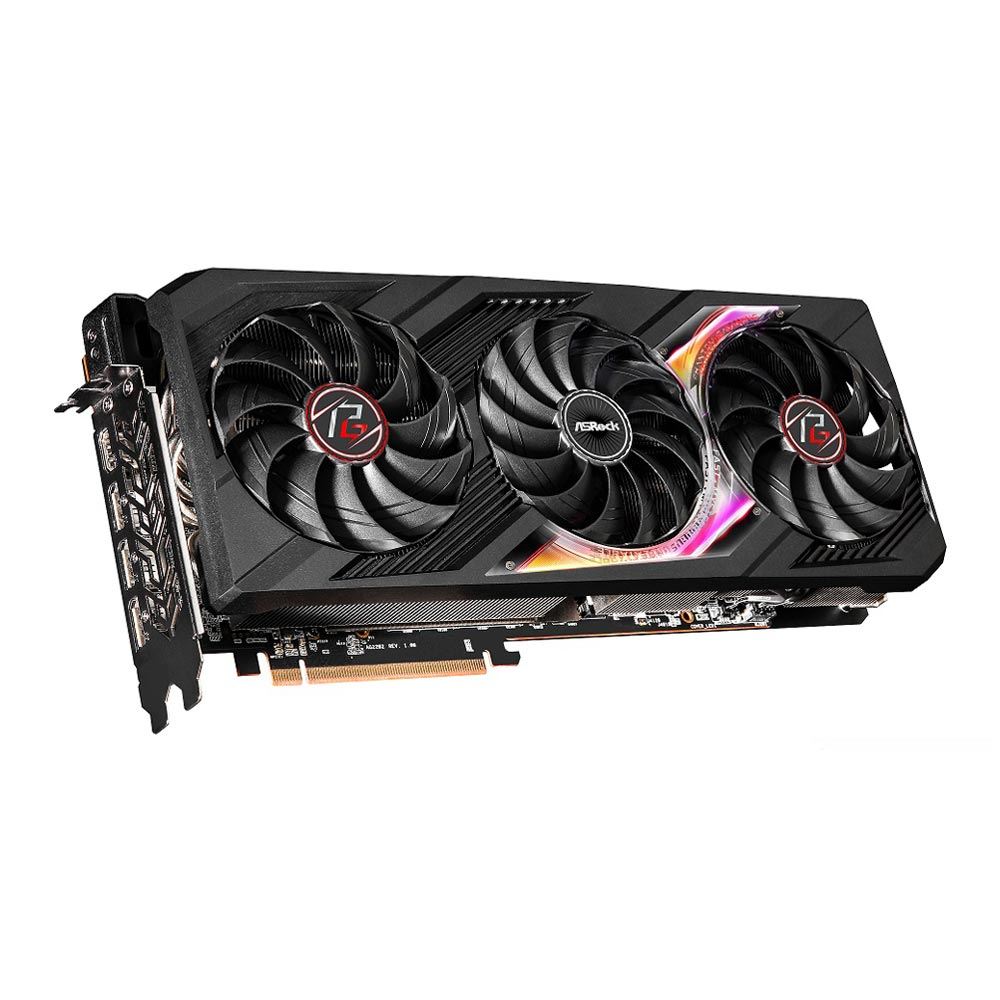

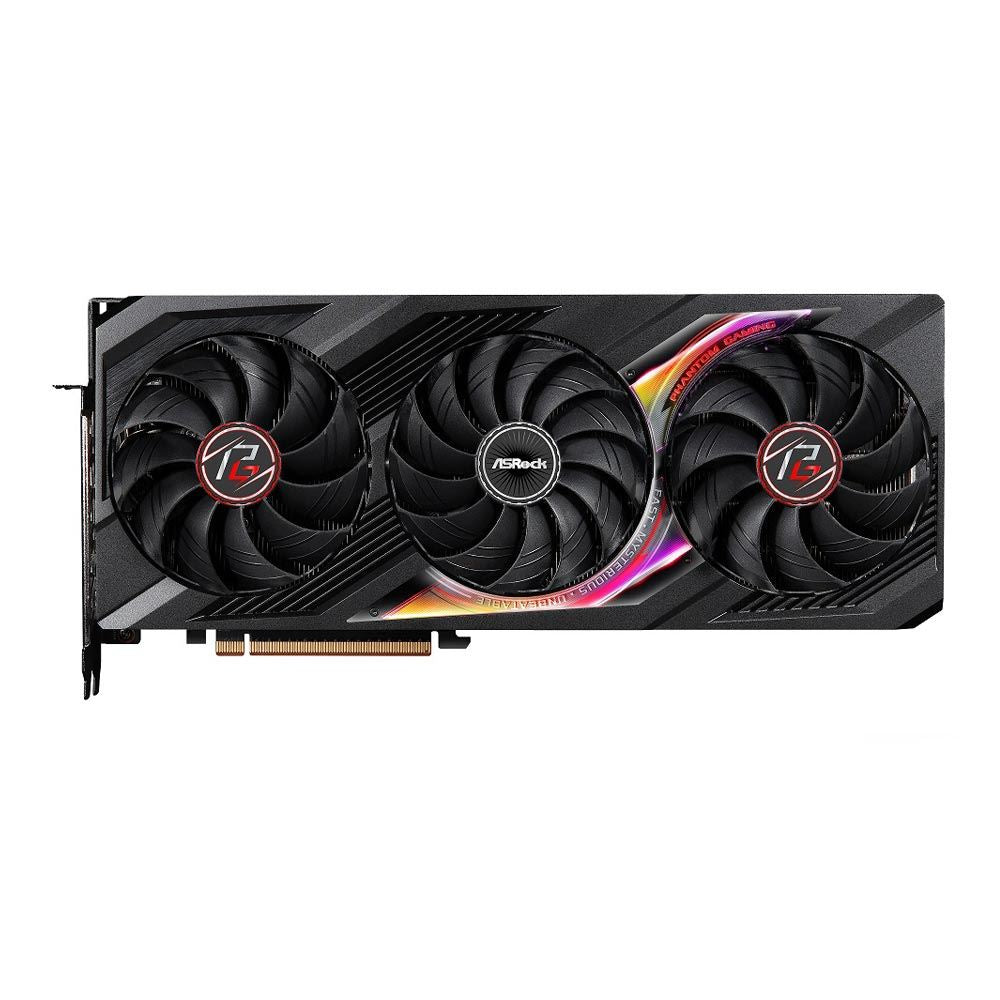

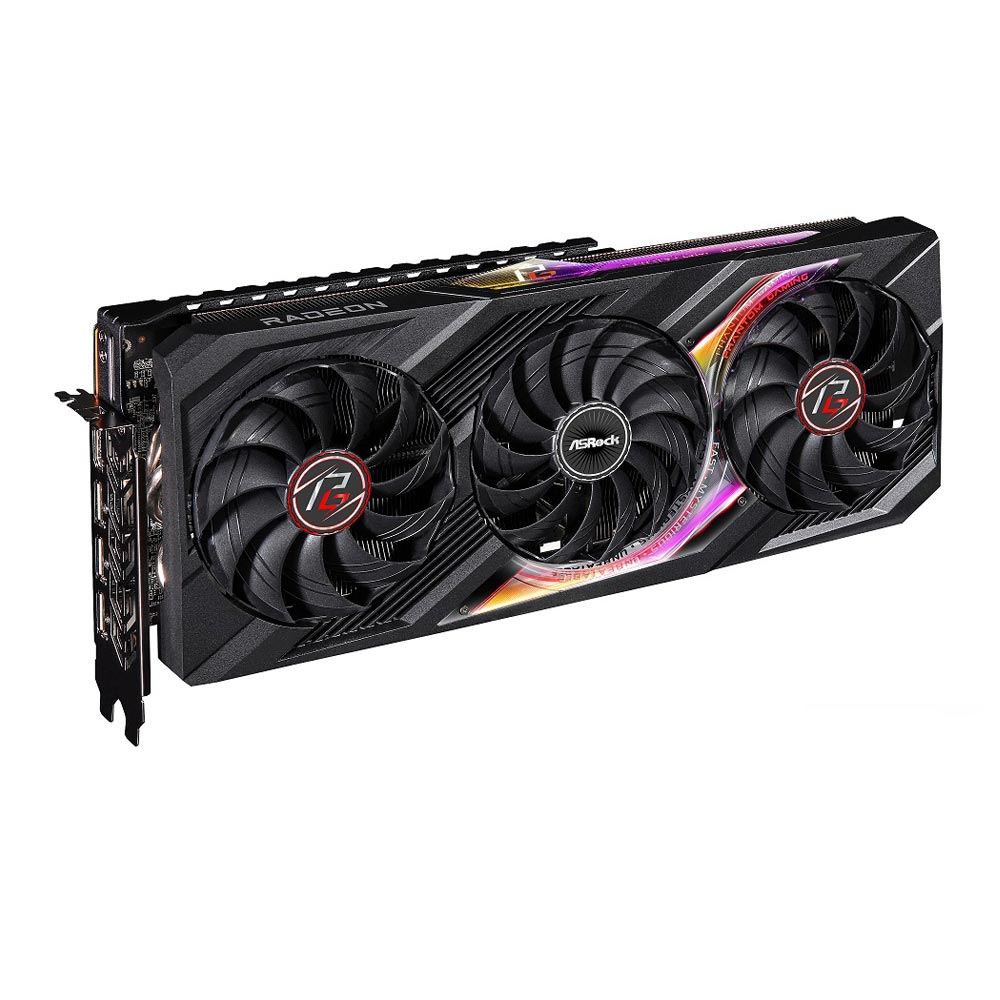

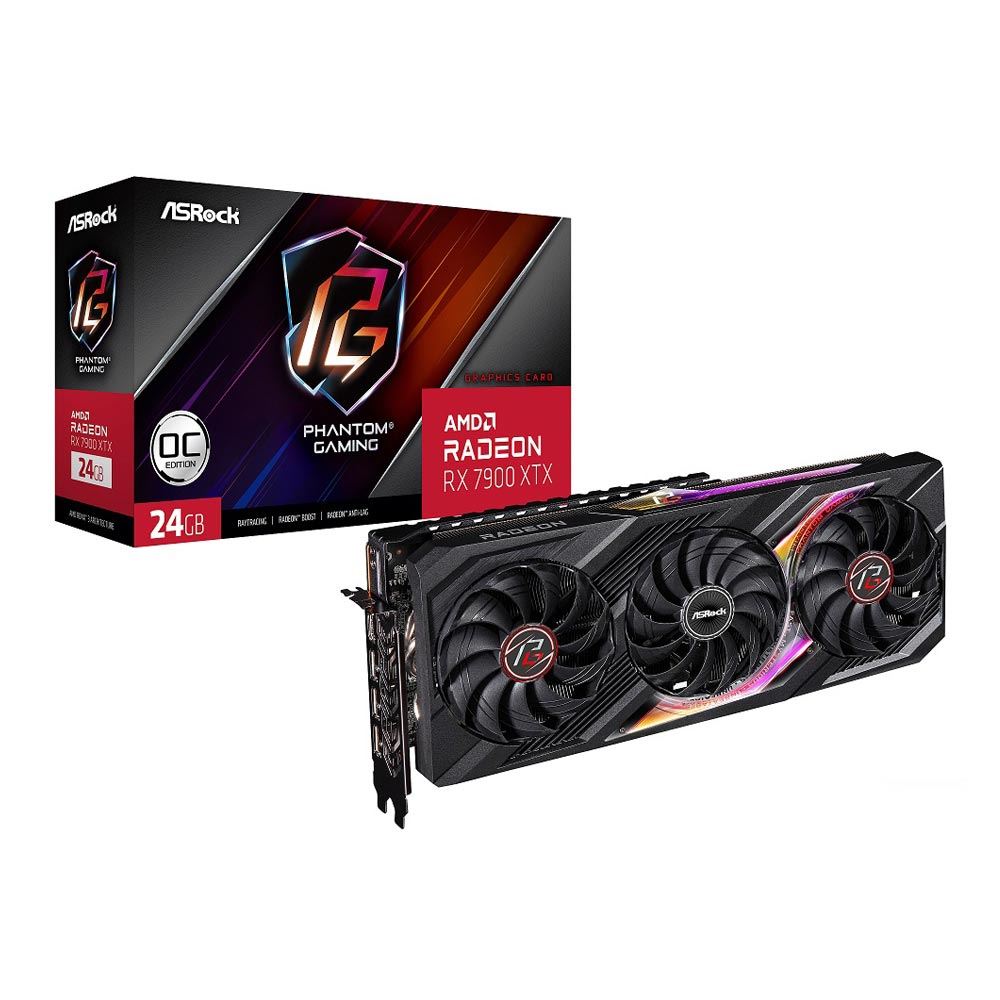

ASRock Radeon RX 7900 XTX Phantom Gaming OC 24GB GDDR6 Graphics Cards



ASRock Radeon RX 7900 XTX Phantom Gaming OC 24GB Graphics Cards

Clock: GPU / Memory

Boost Clock*: Up to 2615MHz / 20Gbps

Game Clock**: 2455MHz / 20Gbps

Key Specifications

AMD Radeon™ RX 7900 XTX GPU

24GB GDDR6 on 384-Bit Memory Bus

96 AMD RDNA™ 3 Compute Units (With Rt+Ai Accelerators)

96MB AMD Infinity Cache™ Technology

PCI® Express 4.0 Support

3 x 8-pin Power Connectors

3 x DisplayPort™ 2.1 / 1 x HDMI™ 2.1

Key Features

Polychrome SYNC

Phantom Gaming 3X Cooling System

Striped Ring Fan

Reinforced Metal Frame

Stylish Metal Backplate

0dB Silent Cooling

Super Alloy Graphics Card

*Boost Clock is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.

**Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

This model may not be sold worldwide. Please contact your local dealer for the availability of this model in your region.

SPECIFICATIONS

Form Factor

Full Height

GPU Manufacturer

AMD

Number of GPUs

1

GPU Chipset

Radeon RX 7900 XTX

Overclocked

Yes

Boost Core Clock Speed

2615MHz

Stream Processors

6144

PCIe Bandwidth

PCIe 4.0 x16

Max Monitors Supported

4

MEMORY

Video Memory

24 GB

Memory Type

GDDR6

Memory Bus

384-bit

GENERAL SPECIFICATIONS

Led Color

RGB Illuminated

Color

Black

VR Ready

Yes

OpenGL Support

OpenGL 4.6

DirectX Support

DirectX 12

PCB Color

Black

HDCP Support

HDCP 2.3

3D Ready

Yes

Cooling

Fan

PORTS & CONNECTORS

HDMI

1 x HDMI 2.1

DisplayPort

3 x DisplayPort 2.1

SYSTEM REQUIREMENTS

Slot Width

Triple Slot

Interface

PCIe 4.0

THERMAL & POWER

Power Connector

3 x 8-pin

Recommended Power Supply

1000 Watts

PHYSICAL SPECIFICATIONS

Height

5.51 in. (139.95 mm)

Video Card Length

12.99 in. (330.00 mm)

Width

Triple Slot

Item Dimension (L"xW"xH")
16 x 9 x 4

Weight
6.61 lbs

WARRANTY

Parts

3 Years Limited

Labor

3 Year Limited
