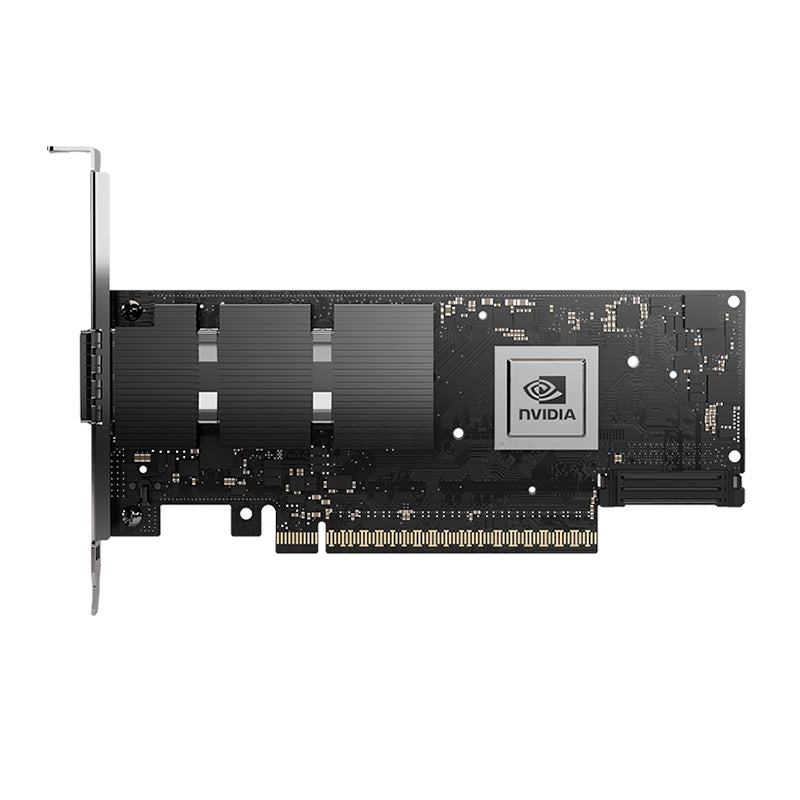

NVIDIA Mellanox MCX75310AAC-NEAT ConnectX®-7 InfiniBand/VPI Adapter Card

400GbE/NDR, Single-Port OSFP, PCIe 5.0 x 16, Crypto and Secure Boot, Tall & Short Bracket

The NVIDIA® ConnectX®-7 MCX75310AAC-NEAT provides high-performance and flexible solutions with a single port of 400Gb connectivity and supports InfiniBand and Ethernet protocols. It enables 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages.

For storage workloads, MCX75310AAC-NEAT provides a broad set of software-defined, hardware-accelerated networking, storage, and security capabilities, enabling organizations to modernize and secure their IT infrastructures.

Moreover, ConnectX-7 empowers agile and high-performance solutions from edge-to-core data centers to clouds, all while enhancing network security and reducing the total cost of ownership.

Specifications

Brand

Nvidia

Technology

InfiniBand

Ports

Single

Host Interface

PCIe 5.0 x16

Data Rate

INFINIBAND

NDR/NDR200/HDR/HDR100/EDR/FDR/SDR

ETHERNET

400/200/100/50/40/10/1Gb/s

Interface Type

OSFP

SR-IOV

Yes

RDMA

Yes

Adapter Card Size (W×D）

6.6" x 2.71" (167.65mm x 68.90mm)

Bracket Height

Tall & Short

Operating Temperature

0 to 55 °C (32 to 131 °F)

Storage Temperature

-40 to 70 °C (-40 to 158 °F)

Supported Operating Systems

Linux, Windows, VMware, Kubernetes

RoHS Compliant

Yes
