EVGA NU Audio Pro 7.1 7.1 Surround Lifelike Audio PCI Express Sound Card

Introducing the EVGA NU Audio Pro Cards

The EVGA NU Audio Card reintroduced the PC world to high-end audio, both stunning the audio world and making new fans along the way. The singular idea of producing Lifelike Audio and Gaming at an affordable price led to an exclusive partnership between one of the world’s most recognizable PC hardware manufacturers and one of the true icons of the audio world – Audio Note (UK).

LEVEL UP

YOUR AUDIO

The NU Audio Pro Cards change the game once again. The pursuit of audio perfection on a PC takes another step forward with the introduction of a 7.1 Surround solution by EVGA and Audio Note. We took the solid foundation of the NU Audio Card, improved the component selections throughout, and matched it to a secondary card to provide surround support.

The result is an experience where critical listening sessions can yield to enjoyment, and where thinking will surrender to feeling.

REALITY

UNLEASHED

Nothing keeps you in the moment better than when you’re surrounded on all sides with a symphony, an action-packed movie, or a tension-filled battle in your favorite game. Coupled with the low noise floor and clean audio signature, the NU Audio Pro is engineered from the ground up to ensure consistent and accurate positioning without the need for excessive customization.

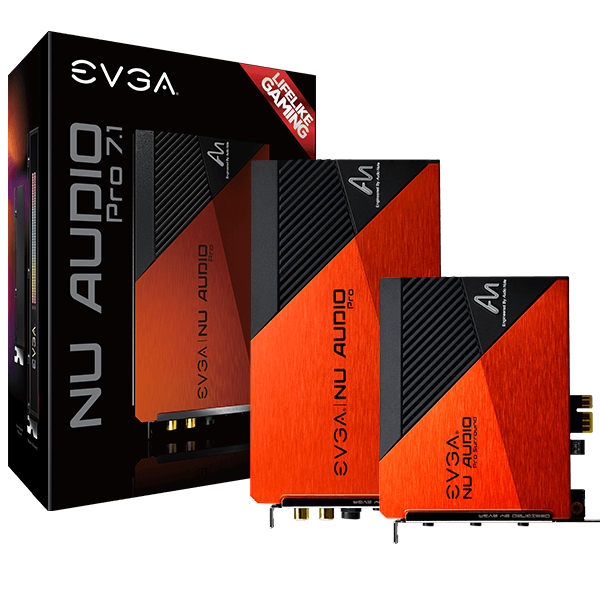

NU AUDIO PRO 7.1

Combining the Pro and Pro Surround cards, the Pro 7.1 delivers an aural overload of 7.1 analog surround to deliver the most immersive audio experience available for the PC. Design your audio experience the way you want to discover Lifelike Audio and Gaming with no limitations and no regrets. Audio DSP
XMOS xCORE-200
Output Configuration
7.1/5.1/4.0/2.0 Channel (Analog)
5.1 Channel (Digital)
Dynamic Range (DNR)
123dB (Playback)
121dB (Recording)
Signal-To-Noise (SNR)
123dB (Playback)
121dB (Recording)
Playback Format (Analog)
Up to 192kHz, 32bit (7.1/5.1/4.0)
Up to 384kHz, 32bit (2.0)
Playback Format (Optical)
Up to 192kHz, 24bit
Headphone Amp
Yes (16-600ohm)
Recording Format
Up to 384kHz, 32bit (Line-In)
Up to 192kHz, 24bit (Mic-In)
I/O
Stereo Out (RCA (L/R))
Surround Out (3x 3.5mm (Side L/R, Rear L/R, Center/Sub))
Headphone Out (6.3mm)
Line-In (3.5mm)
Mic-In (3.5mm)
Optical Out (TOSLINK Passthrough)
Premium Components
DAC - 4x AKM AK4493
ADC (Line-In) - AKM AK5572
ADC (Mic-In) - Cirrus Logic CS5346
OP-AMP (Headphone) - Linear Technology LT1469
OP-AMP (Line Out) - ADI AD8056
OP-AMP (Daughterboard) - 3x ADI OP275
Capacitors - Audio Note Seiryu, Audio Note Standard, AVX F95 Audio, WIMA, Nichicon, Panasonic
Switchable OP-AMP
Headphone, Line-Out, Side, Rear, Center/Sub
Interface
PCIe x1 Gen2, mini-DP
Backplate Included
Power Connector
1x SATA Power
RGB Lighting
RGB Multi-Zone with Audio Reactive Lighting
Supported OS
Windows 10 64-bit
Item Dimension (L"x W"x H")
7 x 3 x 11
Weight
2.00 LB
Warranty Information
3 Years
