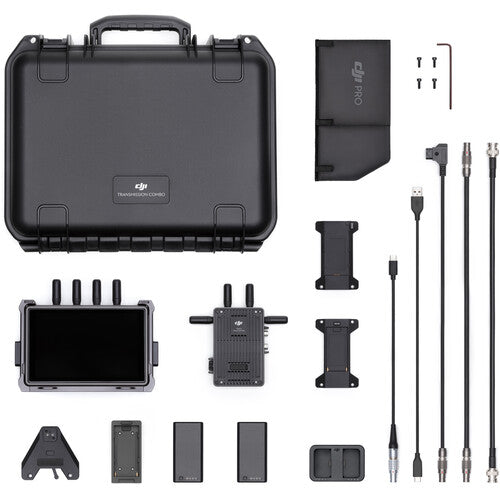

DJI Transmission with High-Bright Monitor Combo Kit

DJI Transmission with High-Bright Monitor Combo Kit

Long-Distance HD Live Feed

DJI Transmission incorporates O3 Pro video transmission technology, which offers an incredible 20,000' on-ground transmission distance. It also supports transmission at 1080p60 with a max bitrate of 50 Mb/s as well as live audio monitoring at 16-bit 48 kHz, providing crews on large sets an excellent remote visual and audio monitoring experience.


End-to-End Ultra-Low Latency

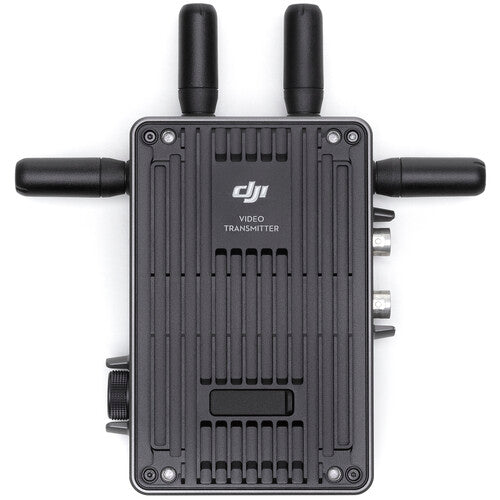

The video transmitter and receiver use the same chip solution as Ronin 4D, with every link explicitly optimized to provide end-to-end ultra-low transmission latency when pairing with cinema cameras like the ARRI ALEXA Mini LF.


Seamless Auto Frequency Hopping

• O3 Pro adds a DFS band on top of the traditional 2.4 and 5.8 GHz, offering up to 23 channel options that provide professional crews with more compliant and interference-free transmission channels.

• DJI Transmission supports triple-band automatic frequency hopping, which automatically scans the electromagnetic environment for the best wireless channel.

• With a built-in frequency sweeper, users can even manually select a channel to avoid interference between devices.

• By mounting high-gain antennas, transmission capability is further boosted.


One Transmitter with Multiple Receivers for Coordinated Shooting

• Two transmission modes are available.

• In Control mode, DJI Transmission delivers optimal transmission performance. Monitoring can be done from two receivers at the same time, while the gimbal of Ronin 2 and RS 3 Pro and camera can be controlled remotely.

• Broadcast mode can be enabled on top of Control mode to enable an unlimited number of receivers (transmission performance differs from Control mode).

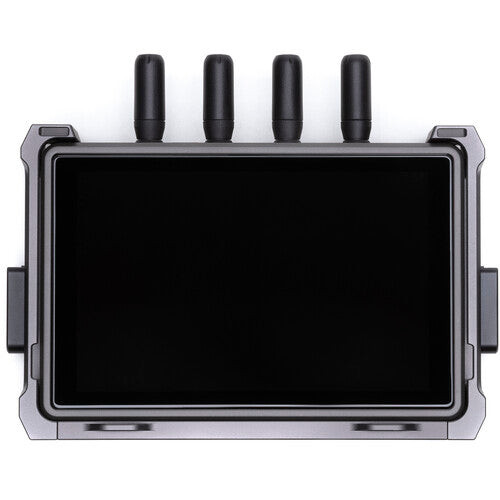

Display

Panel Type
Receiver: LCD

Display Size
7.0" / 17.8 cm

Display Size
Receiver: 7.0" / 17.8 cm

Resolution
Receiver: 1920 x 1200

Aspect Ratio
Receiver: 16:10

Touchscreen
Yes

Image Controls
False Color, Focus Peaking, Screen Markers, Waveform, Zebra

Video I/O
Transmitter: 1 x HDMI 1.4 Input
Transmitter: 1 x BNC (3G-SDI) Input
Transmitter: 1 x BNC (3G-SDI) Loop Output
Receiver: 1 x HDMI 2.0 Input
Receiver: 1 x HDMI 1.4 Output
Receiver: 1 x BNC (3G-SDI) Output

Embedded Audio
HDMI/SDI

Audio I/O
Receiver: 1 x 1/8" / 3.5 mm Headphone Output

Power
Transmitter/Receiver: 1 x Barrel Input

Other I/O
Receiver: 1 x USB-C 2.0 Input

Media/Memory Card Slot
Single Slot: microSD/microSDHC

Encryption
256-Bit AES

Wireless

Wireless Range
3.7 Miles / 6 km (Line-of-Sight)

Number of Channels
23

Channel Bandwidth
40 MHz

Frequency Range

Non-DFS Frequencies
2.4 to 2.48 GHz
5.15 to 5.25 GHz
5.72 to 5.85 GHz

DFS Frequencies
5.25 to 5.35 GHz
5.47 to 5.6 GHz
5.65 to 5.72 GHz

Latency
68 ms

RF Power
less than 33 dBm
