DJI Mavic 3 Thermal with 2-Year DJI Care Enterprise Basic

DJI Mavic 3 Thermal with 2-Year DJI Care Enterprise Basic

Designed to support enterprise-level missions and projects, the DJI Mavic 3 Thermal with 2-Year DJI Care Enterprise Basic is an ideal solution for industrial, corporate, and first responder applications. The drone is extremely compact and lightweight, it can be quickly unfolded and deployed at a moments notice, and it is capable of up to 45 minutes of flight time. The Mavic 3 Thermal features wide-angle, telephoto, and thermal lenses in its 3-axis gimbal camera. The 20MP wide lens is ideal for taking expansive shots and rapid surveying, the 12MP tele gets you close with a 56x hybrid zoom, and the thermal camera makes it easier to carry out inspections and search and rescue missions. These abilities are enhanced by long-range O3 transmission, omnidirectional obstacle avoidance, and more.

DJI Care Included
This drone comes with two years of DJI Care Enterprise Basic coverage, which includes three low-price replacements. It also extends the official warranty period by at least one year.

Thermal Imaging
The thermal camera on the Mavic 3 Thermal is essential for rapid success in certain missions. When searching for suspects or victims, police and EMS can quickly scan for body heat signatures, and inspectors can immediately see if the temperatures of a structure exceed safe levels. The camera has a 640 x 512 resolution and a diagonal field of view of 61^o. You can take point and area temperatures, and use high-temperature alerts, color palettes, and isotherms to be quickly notified when a target is found. With the included RC Pro Enterprise controller, you can even view visual and thermal footage at up to 28x zoom, side-by-side on the built-in display.

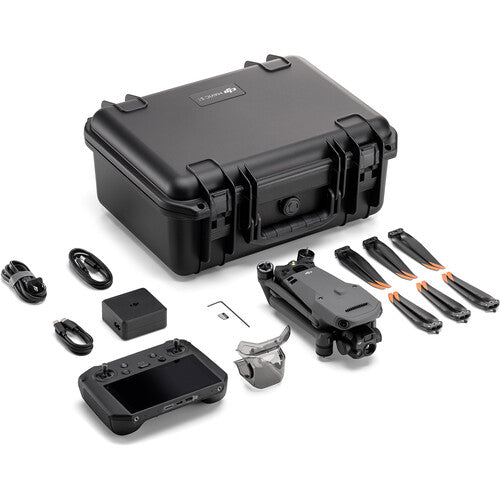

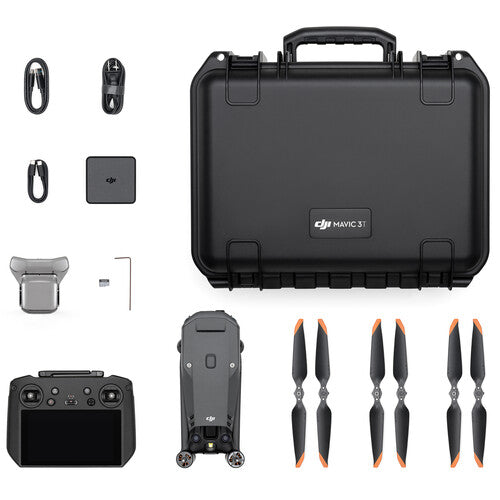

In the Box
DJI Mavic 3 Thermal with 2-Year DJI Care Enterprise Basic
RC Pro Enterprise Controller
Carrying Case
Power Cable
USB-C Cable to USB-A Cable
USB-C Cable
3 x Pair of Propellers
Charger
Screwdriver
Limited 1-Year Warranty (Excluding Case and Propellers)
Limited 1-Year Warranty (Intelligent Flight Battery with Less than 200 Charge Cycles)
Limited 3-Month Warranty (Carrying Case)

Performance

Maximum Takeoff Weight
2.3 lb / 1050 g
Maximum Horizontal Speed
33.6 mph / 15 m/s (Normal Mode)
47.0 mph / 21 m/s (Sport Mode - Forward)
44.7 mph / 20 m/s (Sport Mode - Side)
42.5 mph / 19 m/s (Sport Mode - Backward)
Maximum Ascent Speed
17.9 mph / 8 m/s
Maximum Descent Speed
13.4 mph / 6 m/s
Maximum Wind Resistance
26.8 mph / 12 m/s
Flight Ceiling
3.7 Miles / 6000 m
Maximum Flight Time
45 Minutes
Maximum Hover Time
38 Minutes
Maximum Tilt Angle
35^o
Hovering Accuracy
+/-0.3 / 0.1 m Vertical with Vision Positioning
+/-1.0 / 0.3 m Horizontal with Vision Positioning
+/-1.6 / 0.5 m Vertical with GPS
+/-1.6 / 0.5 m Horizontal with GPS
+/-0.3 / 0.1 m Vertical with RTK
+/-0.3 / 0.1 m Horizontal with RTK
Maximum Angular Velocity
200^o/s (Pitch)

Camera

Sensor Type
1/2"-Type CMOS Sensor
Sensor Resolution
Effective: 48 Megapixel
Focal Length
24mm (35mm Equivalent)
Field of View
84^o
Minimum Aperture
f/2.8
Minimum Focus Distance
3.3 / 1 m
ISO Sensitivity
100 to 25,600
Shutter Speed
Electronic Shutter
8 to 1/8000 Seconds
Video Format
3840 x 2160p at 30 fps (85 Mb/s MP4 via H.264/AVC, MPEG-4)
1920 x 1080p at 30 fps (30 Mb/s MP4 via H.264/AVC)
Broadcast Resolution
None
Still Image Support
JPEG
48 MP (8000 x 6000)
Media/Memory Card Slot
Single Slot: microSD/microSDHC/microSDXC 512 GB Maximum / U3/V30 or Faster Recommended

Second Camera

Telephoto Lens
Sensor: 1/2" CMOS, Effective Pixels: 12 MP
Lens: (FOV) 15^o, (Format Equivalent) 162 mm, (Aperture) f/4.4, and (Focus) 9.8 / 3 m to Infinity
ISO Range: 100-25600
Shutter Speed: Electronic Shutter: 8-1/8000 Seconds
Max Image Size: 4000 x 3000
Photo Format: JPEG
Video Format: MP4 (MPEG-4 AVC/H.264)
Still Photography Modes: (Single) 12 MP, (Timed) 12 MP, (JPEG) 2/3/5/7/10/15/20/30/60 Seconds, and (Smart Low-light Shooting) 12 MP
Video Resolution: H.264, (4K) 3840 x 2160 at 30 fps, and (FHD) 1920 x 1080 at 30 fps
Bitrate: (4K) 85 Mb/s and (FHD) 30 Mb/s
Digital Zoom: 8x (56x Hybrid Zoom)

Third Camera

Thermal Imager
Imager: Uncooled VOx Microbolometer
Pixel Pitch: 12 micrometer
Frame Rate: 30 Hz
Lens: (DFOV) 61^o, (Format Equiv.) 40 mm, (Aperture) f/1.0 and (Focus) 16.4 / 5 m to Infinity
Sensitivity: less than or equal 50 mk at f/1.1
Temp Method/Range: Spot Meter and Area Measurement, (High Gain) -4^o to 302^o F / -20^o to 150^o C and (Low Gain) 32^o to 932^o F / 0^o to 500^o C
Palette: White/Black Hot, Tint, Iron Red, Hot Iron, Arctic, Medical, Fulgurite, Rainbow 1/2
Photo Format: JPEG (8-it) and R-JPEG (16-bit)
Video Specs: 640512 at 30 fps, 6 Mb/s and MP4 (MPEG-4 AVC/H.264)
Still Photo Modes: (Single) 640512, (Timed) 640x512 and (JPEG) 2/3/5/7/10/15/20/30/60 Seconds
Digital Zoom: 28x
Infrared Wavelength: 8-14 micrometer
Infrared Temp Accuracy: +/-4^o F / +/-2^o C or +/-2% (Using The Larger Value)

Gimbal

Number of Axes
3 (Pitch, Roll, Yaw)
Control Range
Pitch: -135 to 45^o
Roll: -45 to 45^o
Yaw: -27 to 27^o
Angular Speed
Pitch: 100^o/s
Control Accuracy
+/-0.007^o

Flight Control System

GNSS Support
GPS, GLONASS, BeiDou, Galileo

3D Object Detection

Operating Range
Not Specified by Manufacturer
Vision System
Vision System
Downward, Forward, Backward, Left, Right
Obstacle Sensory Range
1.6 to 656.2 / 0.5 to 200.0 m
Forward Field of View
90^o (Horizontal)
103^o (Vertical)
Downward Field of View
130^o (Front to Back)
160^o (Side to Side)
Backward Field of View
90^o (Horizontal)
103^o (Vertical)
Operating Environment
Surface with Clear Patterns at more than 15 lux

Remote Controller / Transmitter

Operating Frequency
2.4 GHz (2.400 to 2.484)
5.8 GHz (5.725 to 5.850)
Maximum Operating Distance
9.3 Miles / 15 km
Transmitter Power
33 dBm (2.4 G)
33 dBm (5.8 G)
Connectivity
1 x USB-C
Output Power
12 W
Battery Chemistry
Lithium-Ion
Battery Capacity
5000 mAh
Built-In Display Size
5.5"
Display Resolution
1920 x 1080
Display Brightness
1000 cd/m²
Storage Temperature
<3 Months: -22 to 140^oF / -30 to 60^oC
>3 Months: -22 to 95^oF / -30 to 35^oC
Operating Temperature
14 to 104^oF / -10 to 40^oC
Charging Temperature
41 to 104^oF / 5 to 40^oC

Flight Battery

Battery Chemistry
Lithium-Ion Polymer (LiPo)
Battery Capacity
5000 mAh / 77 Wh
Battery Configuration
4 S / 15.4 V
Charging Temperature
41 to 104^oF / 5 to 40^oC
Weight
11.8 oz / 335.5 g

Charger

AC Input Power
100 to 240 VAC, 50 / 60 Hz at 2.5 A
Power Rating
100 W

Motor

Model
2008

Propeller

Model
9453F Propellers for Enterprise

General

Rotor Configuration
4
Operating Temperature
14 to 104^oF / -10 to 40^oC
Diagonal Size
15" / 380.1 mm
Item Dimension (L"xW"xH")
21 x 18 x 11

Weight
29 lbs

Warranty Information
2 Year
