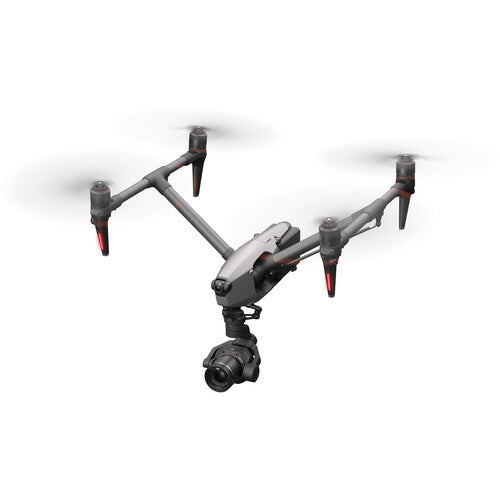

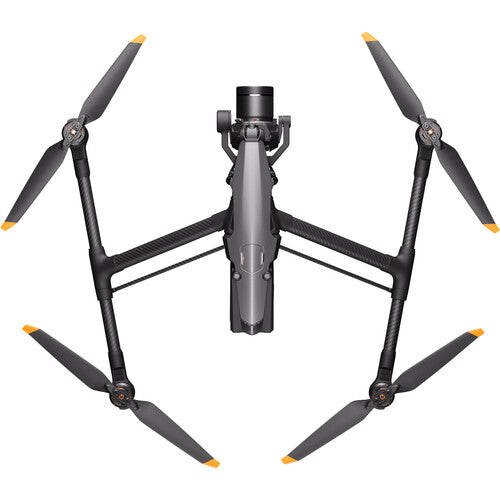

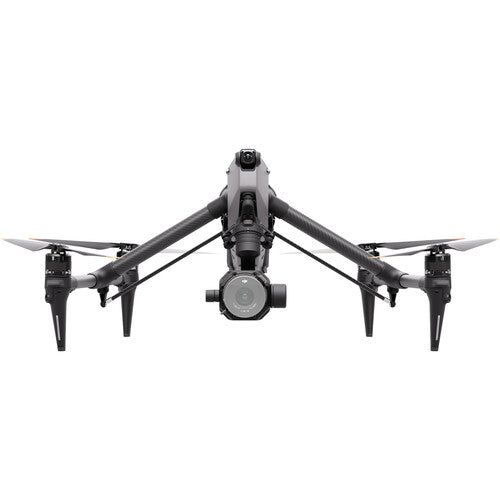

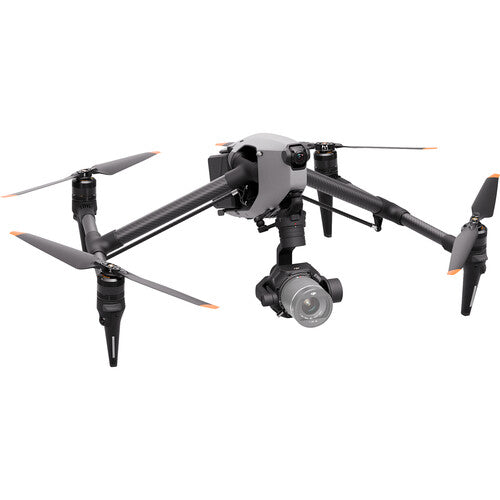

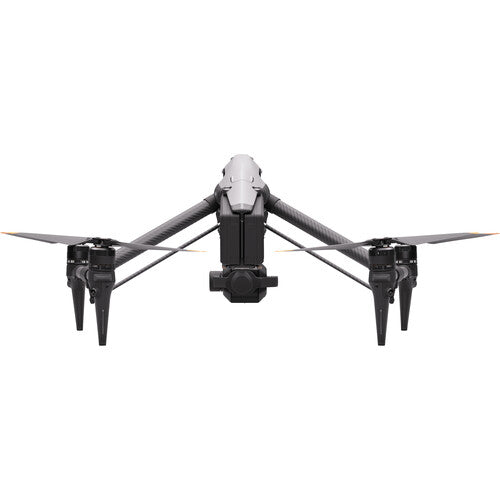

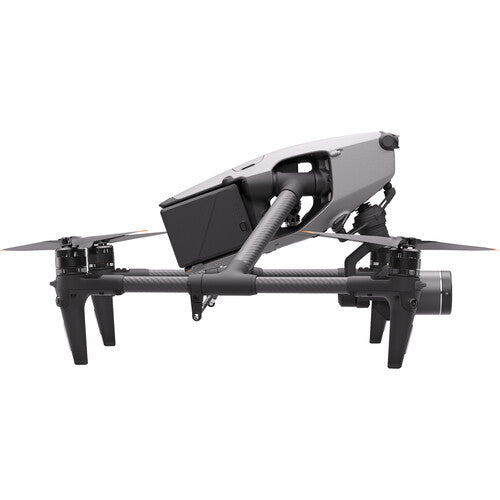

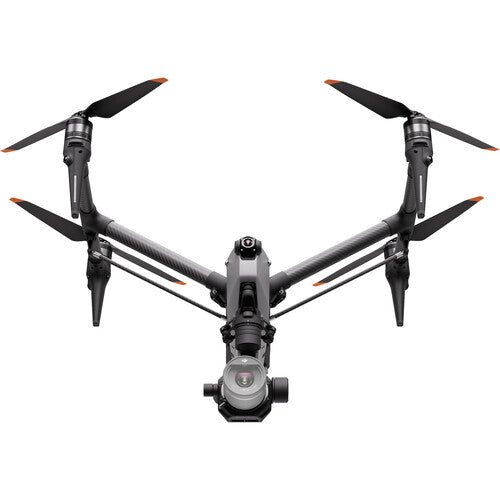

DJI Inspire 3 Drone

DJI Inspire 3 Drone

• Full-frame 8K/75fps ProRes RAW

• Full-frame 8K/25fps CinemaDNG

• Dual Native ISO

• 80° Tilt Boost or 360° Pan Dual Configurations

• High Dynamic Range of 14+ Stops

• 1/1.8-inch Ultra-Wide Night-Vision FPV Camera

• Centimeter-Level RTK Positioning and Waypoint Pro

• O3 Pro Video Transmission with Dual-Control

• DL-Mount Lens Selection


Full-frame 8K ProRes RAW/CinemaDNG

Features an 8K sensor with internal recording of up to 8K/25fps CinemaDNG video [1] and 8K/75fps Apple ProRes RAW video [1] in full frame.


1/1.8-inch Low-Light FPV Camera

A new 1/1.8-inch-sensor FPV camera with a 3μm pixel size, 161° ultra-wide DFOV, and the ability to transmit live feeds at up to 1080p/60fps.


360° Pan and Tilt Boost

Inspire 3 features 360° Pan and Tilt Boost configurations. Tilt Boost allows for obstruction-free 80° upward-angle shooting. [2]


O3 Pro Video Transmission

A max transmission distance of 15 km [3] and 1080p/60fps, 4K/30fps [4] live feeds with low latency. Also features dual control mode.


Note:

1. License key sold separately.

2. Measured using DL 50 mm lens with landing gear lowered and the aircraft hovering in a windless environment.

3. Measured in an unobstructed outdoor environment free of interference, with gimbal camera and lens attached to the aircraft and without other accessories. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to reminders in the app.

4. 4K/30fps live feeds are only available when recording video at 30 fps or below.

Aircraft

Model
T740

Aircraft Weight
Approx. 3,995 g (includes gimbal camera, two batteries, lens, PROSSD, and propellers)

Max Takeoff Weight
Approx. 4,310 g

Hovering Accuracy Range
Vertical:
+/-0.1 m (with vision positioning)
+/-0.5 m (with GNSS positioning)
+/-0.1 m (with RTK positioning)
Horizontal:
+/-0.3 m (with vision positioning)
+/-0.5 m (with GNSS positioning)
+/-0.1 m (with RTK positioning)

RTK Positioning Accuracy (RTK fix)
1 cm + 1 PPM (horizontal)
1.5 cm + 1 PPM (vertical)

Max Angular Velocity
Pitch: 200^o/s
Roll: 200^o/s
Yaw: 150^o/s

Max Tilt Angle
N Mode: 35^o
S Mode: 40^o
A Mode: 35^o
T Mode: 20^o
Emergency Brake: 55^o

Max Ascent Speed
8 m/s
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Descent Speed
Vertical: 8 m/s
Tilt: 10 m/s
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Horizontal Speed
94 kph
Measured when flying in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Service Ceiling Above Sea Level
Standard Propellers: 3800 m
High-Altitude Propellers: 7000 m
Measured in an environment with light wind with the gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Wind Resistance
Takeoff/land: 12 m/s
In-flight: 14 m/s
Measured when flying at sea level, with gimbal camera and lens attached to the aircraft and without other accessories. This data is for reference only.

Max Hovering Time
Approx. 25 minutes
Measured when hovering in a windless environment at sea level with gimbal camera and lens attached to the aircraft and without other accessories, with landing gear raised, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app.

Max Flight Time
Approx. 28 minutes (landing gear lowered)
Approx. 26 minutes (landing gear raised)
Measured when flying forward at a constant speed of 36 kph in a windless environment at sea level, with gimbal camera and lens attached to the aircraft and without other accessories, and recording 4K/24fps H.264 (S35) video until the battery reached 0%. This data is for reference only. Please refer to the actual values in the app.

Motor Model
DJI 3511s

Global Navigation Satellite System
GPS + Galileo + BeiDou

Propeller Model
Standard Propellers: DJI 1671
High-Altitude Propellers: DJI 1676

Operating Temperature
-20^o to 40^o C (-4^o to 104^o F)

Diagonal Distance
Landing Gear Raised: 695 mm
Landing Gear Lowered: 685 mm

Travel Mode Dimensions
Height: 176 mm
Width: 709.8 mm
Length: 500.5 mm

Gimbal Camera

Sensor
35mm full-frame CMOS

Max Resolution
Photo: 8192x5456
Video: 8192x4320

Video Resolution
View detailed list : https://terra-1-g.djicdn.com/851d20f7b9f64838a34cd02351370894/630%20view/en.jpg

Supported Lenses
DL 18 mm F2.8 ASPH Lens
DL 24 mm F2.8 LS ASPH Lens
DL 35 mm F2.8 LS ASPH Lens
DL 50 mm F2.8 LS ASPH Lens

Photo Format
JPG, DNG

Video Format
MOV, CinemaDNG

Operation Mode
Capture, Record, Playback

Exposure Mode
P, A, S, M

Shutter Type
Electronic shutter

Shutter Speed
8-1/8000 s

White Balance
AWB
MWB (2000K-10000K)

ISO Range
ISO: 100-25600
Video
EI: 200-6400

Anti-flicker
Capture Mode: Auto, 50 Hz, 60 Hz, OFF

Angular Vibration Range
Hovering: +/-0.002^o
Flying: +/-0.004^o

Installation Method
Quick release

Mechanical Range
Tilt:
-128^o to +110^o (landing gear lowered)
-148^o to +90^o (landing gear raised)
Roll: -90^o to +230^o
Pan: +/-330^o

Controllable Range
Tilt (landing gear lowered):
Before gimbal tilt limit extension: -90^o to +30^o
After gimbal tilt limit extension: -115^o to +100^o
Tilt (landing gear raised):
Before gimbal tilt limit extension: -90^o to +30^o
After gimbal tilt limit extension: -140^o to +75^o
Roll: +/-20^o
Pan: +/-300^o

Max Control Speed
With DJI RC Plus:
Tilt: 120^o/s
Roll: 180^o/s
Pan: 270^o/s
With DJI Master Wheels:
Tilt: 432^o/s
Roll: 432^o/s
Pan: 432^o/s

Video Transmission

Video Transmission System
O3 Pro

Live View Quality
FPV Camera: Up to 1080p/60fps
Gimbal Camera: Up to 1080p/60fps, 4K/30fps

Max Live Video Bitrate
50 Mbps

Max Transmission Distance
Single Control Mode:
FPV Camera: approx. 15 km (FCC), 8 km (CE/SRRC/MIC)
Gimbal Camera (1080p/60fps live feeds): approx. 13 km (FCC), 7 km (CE/SRRC/MIC)
Gimbal Camera (4K/30fps live feeds): approx. 5 km (FCC), 3 km (CE/SRRC/MIC)
Dual-Control Mode:
FPV Camera: approx. 12 km (FCC), 6.4 km (CE/SRRC/MIC)
Gimbal Camera (1080p/60fps live feeds): approx. 11.2 km (FCC), 5.6 km (CE/SRRC/MIC)
Gimbal Camera (4K/30fps live feeds): approx. 4 km (FCC), 2.4 km (CE/SRRC/MIC)
Measured in an unobstructed outdoor environment free of interference, with gimbal camera and lens attached to the aircraft and without other accessories. The above data shows the farthest communication range for one-way, non-return flights under each standard. During your flight, please pay attention to reminders in the app.

Lowest Latency
FPV Camera: 90 ms
Gimbal Camera: 90 ms
The lowest latency of the gimbal camera was measured when recording 4K/60fps ProRes RAW video. The lowest latency of the FPV camera was measured with strong video transmission signals.

Operating Frequency
2.4000-2.4835 GHz
5.150-5.250 GHz (CE: 5.170-5.250 GHz)
5.725-5.850 GHz
In some countries and regions, the 5.1 and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations.

Transmitter Power (EIRP)
2.4 GHz: <33 dBm (FCC), <20 dBm (CE/SRRC/MIC)
5.1 GHz: <23 dBm (CE)
5.8 GHz: <33 dBm (FCC), <30 dBm (SRRC), <14 dBm (CE)

Battery

Model
TB51 Intelligent Battery

Capacity
4280 mAh

Nominal Voltage
23.1 V

Type
Li-ion

Chemical System
LiCoO2

Energy
98.8 Wh

Operating Temperature
-20^o to 40^o C (-4^o to 104^o F)

Charging Temperature
-20^o to 40^o C (-4^o to 104^o F)
If the temperature of the battery is lower than 10^o C (50^o F), the battery will trigger an auto-heating function. Charging in a low-temperature environment below 0^o C (32^o F) may shorten battery life.

Max Charging Power
205.5 W

Charge via Aircraft
Not supported

Battery Charging Hub

Input
100-240 V AC, max 8 A

Output
26.4 V, 7.8 A

Total Rated Output
476 W, including 65W PD fast charging of USB-C port

Charging Time
Fast Mode: Approx. 35 minutes to 90%
Standard Mode: Approx. 55 minutes to 100%
Silent Mode: Approx. 80 minutes to 100%
Tested at a room temperature of 25^o C (77^o F) and in a well-ventilated environment. In Fast mode, each battery pair is charged to 90% in sequence, and then eight batteries are charged together to 100%.

Charging Temperature
-20^o to 40^o C (-4^o to 104^o F)

Memory Card

Memory Card Type
DJI PROSSD 1TB

Sensing

Forward
Measurement Range: 1.5-48 m
Effective Sensing Speed: is less than or equal to 15 m/s
FOV:
Horizontal 90^o, Vertical 103^o (landing gear raised)
Horizontal 72^o, Vertical 103^o (landing gear lowered)

Backward
Measurement Range: 1.5-48 m
Effective Sensing Speed: is less than or equal to 15 m/s
FOV: Horizontal 90^o, Vertical 103^o

Lateral
Measurement Range: 1.5-42 m
Effective Sensing Speed: is less than or equal to 15 m/s
FOV: Horizontal 90^o, Vertical 85^o

Upward
Measurement Range: 0.2-13 m
Effective Sensing Speed: is less than or equal to 6 m/s
FOV: Front and Back 100^o, Left and Right 90^o

Downward
Measurement Range: 0.3-18 m
Effective Sensing Speed: is less than or equal to 6 m/s
FOV: Front and Back 130^o, Left and Right 160^o

Operating Environment
Forward, Backward, Left, Right, and Upward: surfaces with discernible patterns and adequate lighting (lux >15)
Downward: surfaces with discernible patterns and diffuse reflectivity >20% (e.g., walls, trees, people), adequate lighting (lux >15)
Obstacle sensing is disabled while the landing gear is in the process of being raised or lowered.

ToF Infrared Sensor Measurement Range
0-10 m

Remote Controller

Model
RM700B

Operating Time
Built-in Batteries: approx. 3.3 hours
Built-in Batteries Plus External Battery: approx. 6 hours

Operating Frequency
2.4000-2.4835 GHz
5.725 GHz-5.850 GHz
In some countries and regions, 5.1GHz and 5.8GHz frequencies are prohibited, or the 5.1GHz frequency is only allowed for indoor use. Please refer to local laws and regulations.

Video Output Port
HDMI

Power Supply
Built-in batteries or external battery

Coordinated Operation
Supports dual controls and coordination between multiple operators

Power Consumption
12.5 W

Operating Temperature
-20^o to 50 ^oC (-4^o to 122^o F)

Storage Temperature
-30^o to 45^o C (-22^o to 113^o F) (within one month)
-30^o to 35^o C (-22^o to 95^o F) (one to three months)
-30^o to 30^o C (-22^o to 86^o F) (three months to one year)
