ASRock Rack SP2C621D16-2T Dual Socket Xeon EEB Motherboard

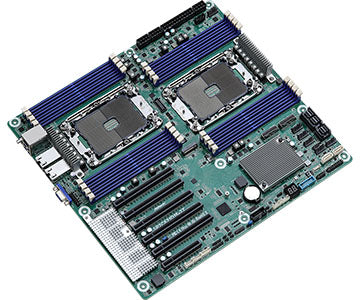

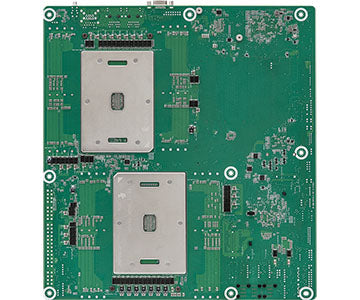

ASRock Motherboard SP2C621D16-2T

• EEB (12" x 13")
• Supports 3rd Gen Intel® Xeon® Scalable processors
• 8+8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, and Intel® Optane™ Persistent Memory
• 5 PCIe4.0 x16, 1 PCIe4.0 x8
• 2 SlimSAS (PCIe4.0 x8)
• Supports 1 M.2 (PCIe4.0 x4)
• 14 SATA 6Gb/s
• 2 RJ45 (10GbE) by Intel® X550-AT2
• Remote management (IPMI)

Physical Status
Form Factor
EEB
Dimensions
12inch x 13inch
Processor System
CPU
Supports 3rd Gen Intel Xeon Scalable processors
Socket
Dual Socket P+ (LGA 4189)
Chipset
Intel C621A
System Memory
Supported DIMM Quantity
8+8 DIMM slots (1DPC)
Supported Type
Supports DDR4 288-pin RDIMM/RDIMM-3DS/LRDIMM/LRDIMM-3DS, Intel Optane^TM Persistent Memory 200 Series
Max. Capacity per DIMM
RDIMM: up to 64GB
RDIMM-3DS: up to 256GB
LRDIMM: up to 128GB
LRDIMM-3DS: up to 256GB
DIMM Frequency
max. 3200MHz
Voltage
1.2V
PCIe Expansion Slots (SLOT7 close to CPU)
PCIe x 16
SLOT6: PCIe4.0 x16 (CPU1)
SLOT5: PCIe4.0 x16 (CPU1)
SLOT4: PCIe4.0 x16 (CPU1)
SLOT3: PCIe4.0 x16 (CPU0)
SLOT2: PCIe4.0 x16 (CPU0)
PCIe x 8
SLOT1: PCIe4.0 x8 (CPU0)
Other PCIe Expansion Connectors
M.2 slot
1 M-key (PCIe4.0 x4), Support 22110/2280 form factor (CPU0)
SlimSAS
2 SlimSAS (PCIe4.0x8) (CPU0)
SATA/SAS Storage
PCH Built-in Storage
Intel C621A (14 SATA 6Gb/s, support RAID 0/1/5/10):
1 Mini-SAS HD 8i, 1 Mini-SAS HD 4i, 2 SATA 7-pin
Ethernet
Additional GbE Controller
Intel X550-AT2: 2 RJ45 (10GbE)
Server Management
BMC Controller
ASPEED AST2500
IPMI Dedicated GLAN
1 x Realtek RTL8211E for dedicated management GLAN
Graphics
Controller
ASPEED AST2500
VRAM
DDR4 16MB

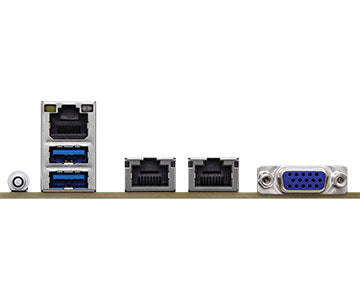

Rear I/O
UID Button/LED
1
VGA Port
1 DB15
USB 3.2 Gen1 Port
2 Type-A (USB3.2 Gen1)
RJ45
2 RJ45 (10GbE)
Dedicate LAN
1 dedicated IPMI LAN port
Internal Connector/Headers
Auxiliary Panel Header
1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus
System Panel
1 (9-pin): power switch, reset switch, system power LED, HDD activity LED
COM Header
1
Video output
1
Fan Header
4 (8-pin), 2 (6-pin)
TPM Header
1 (13-pin, SPI)
VROC header
1
HSBP
1
SMBus header
1
PMB header
1
Clear CMOS
1 (contact pads)
USB 3.2 (Gen1) Header
1 (19-pin, 2 USB3.2 Gen1)
Power Connector
1 (24-pin, ATX main power), 3 ( 8-pin, ATX 12V)
System BIOS
BIOS Type
AMI 256 Mb SPI Flash ROM
BIOS Features
ASRock Rack Instant Flash, ACPI 5.0, SMBIOS 2.3, Plug and Play (PnP)
Hardware Monitor
Temperature
CPU, PCH, MB, Card side, X550 Temperature Sensing
Fan
CPU/Rear/Front Fan Tachometer
CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature)
CPU/Rear/Front Fan Multi-Speed Control
Voltage
CPU1_PVCCIN, CPU2_PVCCIN, PVDDQ_ABCD,PVDDQ_EFGH,PVDDQ_IJKL,PVDDQ_MNOP, 1.05V_PCH,1.8V_PCH, +BAT,PVNN_PCH, 3.3V,5V,12V,3.3VSB, 5VSB
Environment
Temperature
Operation temperature: 10^oC to 35^oC / Non operation temperature: -40^oC to 70^oC
Humidity
Non-operation humidity: 20% to 90% ( Non condensing)
Item Dimension (L inchxW inchxH inch)
16 x 17 x 5

Weight
10.00 lb

Warranty Information
36M
