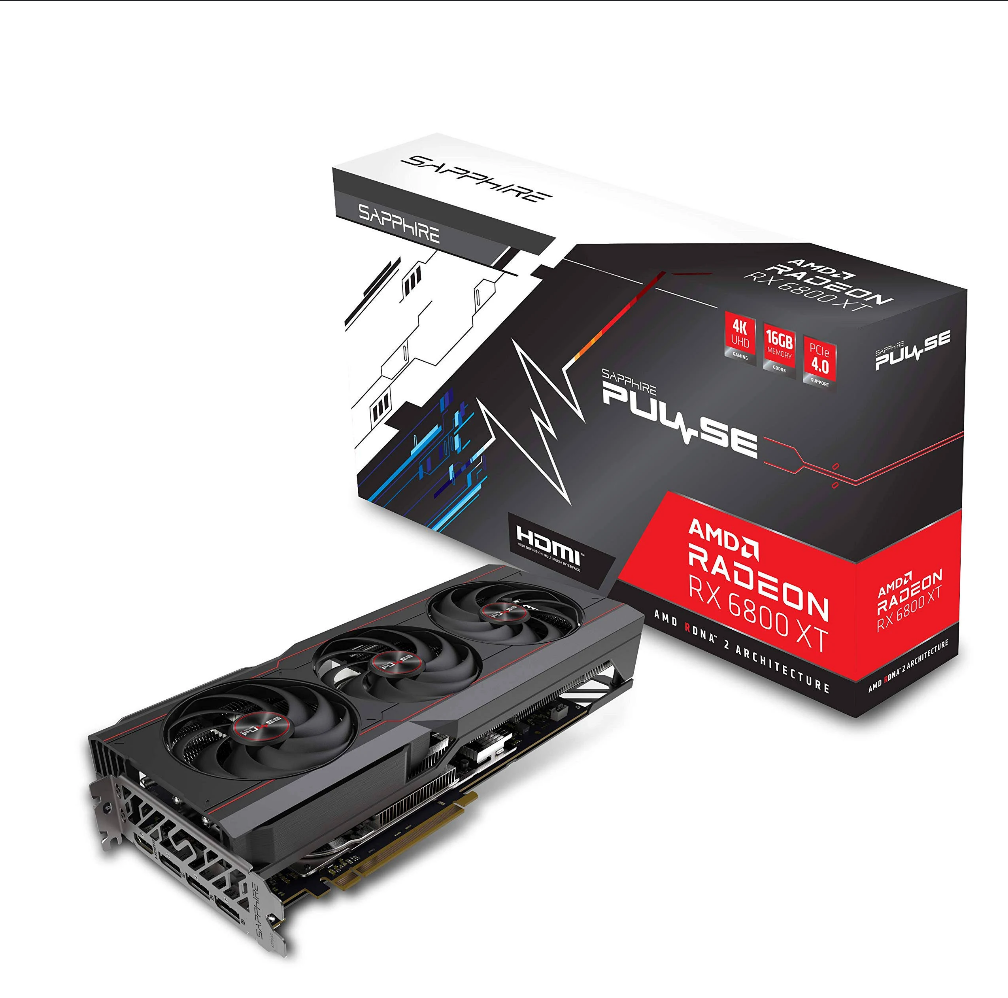

Sapphire AMD RADEON RX 6800 XT GAMING OC 16GB GDDR6

PULSE AMD Radeon™ RX 6800 XT

• GPU: Boost Clock: Up to 2310MHz

• Memory: 16GB/256 bit DDR6. 16 Gbps Effective

• Stream Processors: 4608

• RDNA™ 2 Architecture

• Ray Accelerator: 72


SAPPHIRE PULSE AMD Radeon™ RX 6800 XT

The SAPPHIRE PULSE AMD Radeon™ RX 6800 XT yields robust 4K gaming performance at the optimal budget. Push your limits with high refresh rate competitive gaming and streamlined designs for incredible performance and efficiency powered by AMD’s visionary RDNA2 architecture. SAPPHIRE’s renowned components like the dual ball bearing fans, fuse protection and dual BIOS ensure a quality and reliability. The remarkable SAPPHIRE Tri-X Cooling Technology powered by two fans on the outside and the middle fan with reverse spinning direction secures a low temperature and low noise solution. These efficient cooling solutions alongside the all-aluminum aesthetic backplate coupled with our SAPPHIRE exclusive TriXX Boost builds a mix of incredible performance and stability with the PULSE AMD Radeon™ RX 6800 XT. Take your gaming to the next level with the PULSE AMD Radeon™ RX 6800 XT as the beating heart of your PC! GPU
AMD Radeon^TM RX 6800 XT Graphics Card
7nm GPU
AMD RDNA^TM 2 Architecture
Engine Clock
Boost Clock: Up to 2310 MHz
Game Clock: Up to 2065 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
Stream Processors
4608
Infinity Cache
128MB
Ray Accelerators
72
Memory Size/Bus
16GB GDDR6
Memory Clock
16 Gbps Effective
Displays
Maximum 4 Displays
Resolution
HDMI^TM: 7680x4320
DisplayPort1.4: 7680x4320
Interface
PCI-Express 4.0
Output
1x HDMI
3x DisplayPort
BIOS Support
Dual UEFI
Game Index
4K
Sapphire Features
Dual BIOS
Digital Power Design
Fuse Protection
Tri-X Cooling Technology
Intelligent Fan Control
Precision Fan Control
Backplate
Two-Ball Bearing Fans
TriXX Supported
TriXX Boost
AMD Features
AMD RDNA^TM 2 Gaming Architecture
DirectX 12 Ultimate
Hardware Raytracing
7nm GPU
GDDR6 Memory
PCI Express 4.0 Support
AMD FreeSync^TM Technology
DisplayPort^TM 1.4 with DSC
HDMI^TM 2.1 VRR
Video Streaming up to 8K
Radeon^TM VR Ready Premium
AMD FidelityFX
Radeon^TM Image Sharpening
Radeon^TM Anti-Lag
Radeon^TM Software
Game Driver Optimizations
High Performance 4K Gaming
Cooling
3 Fans
Form Factor
2.7 slot, ATX
Power Consumption
350W
OS
Linux, Windows 7, Windows 10, and Windows 8.1. 64-bit operating system required
Note: Does not support all features including but not limited to Hardware Raytracing
System Requirement
Minimum 750 Watt Power Supply
2 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.
