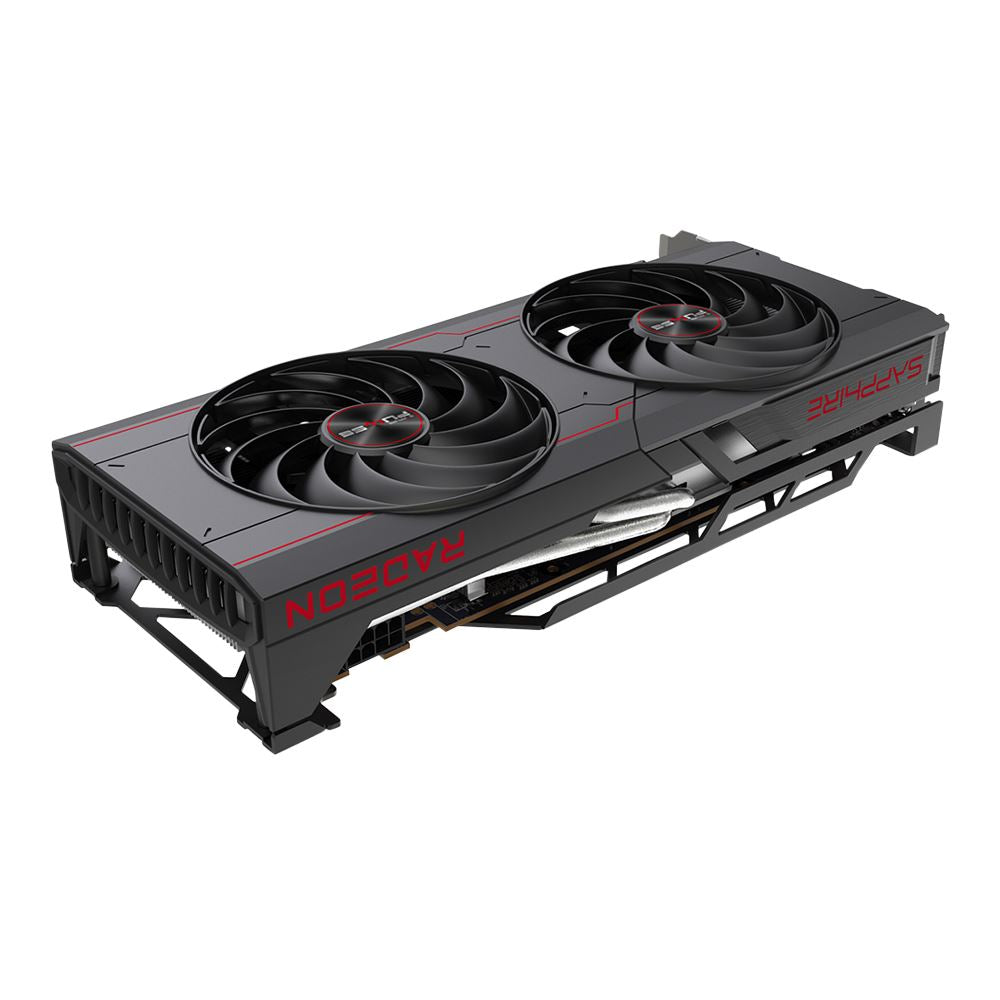

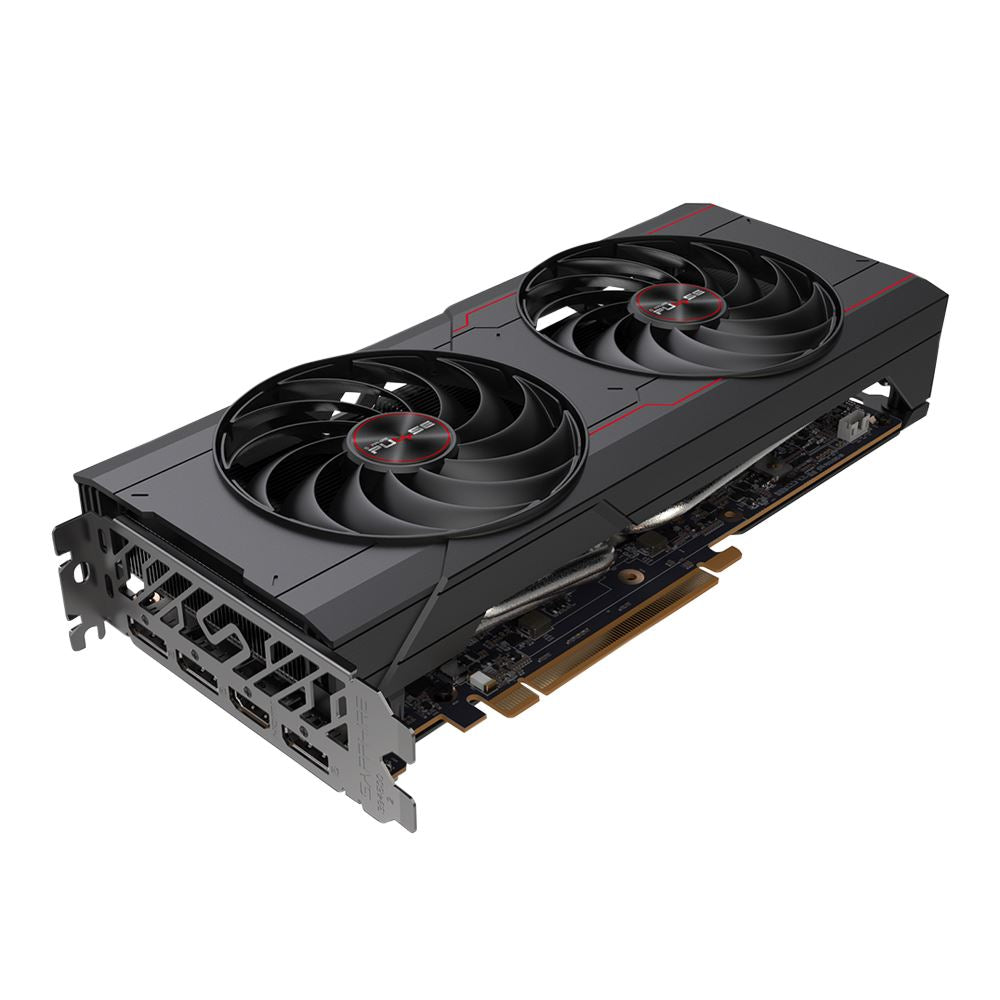

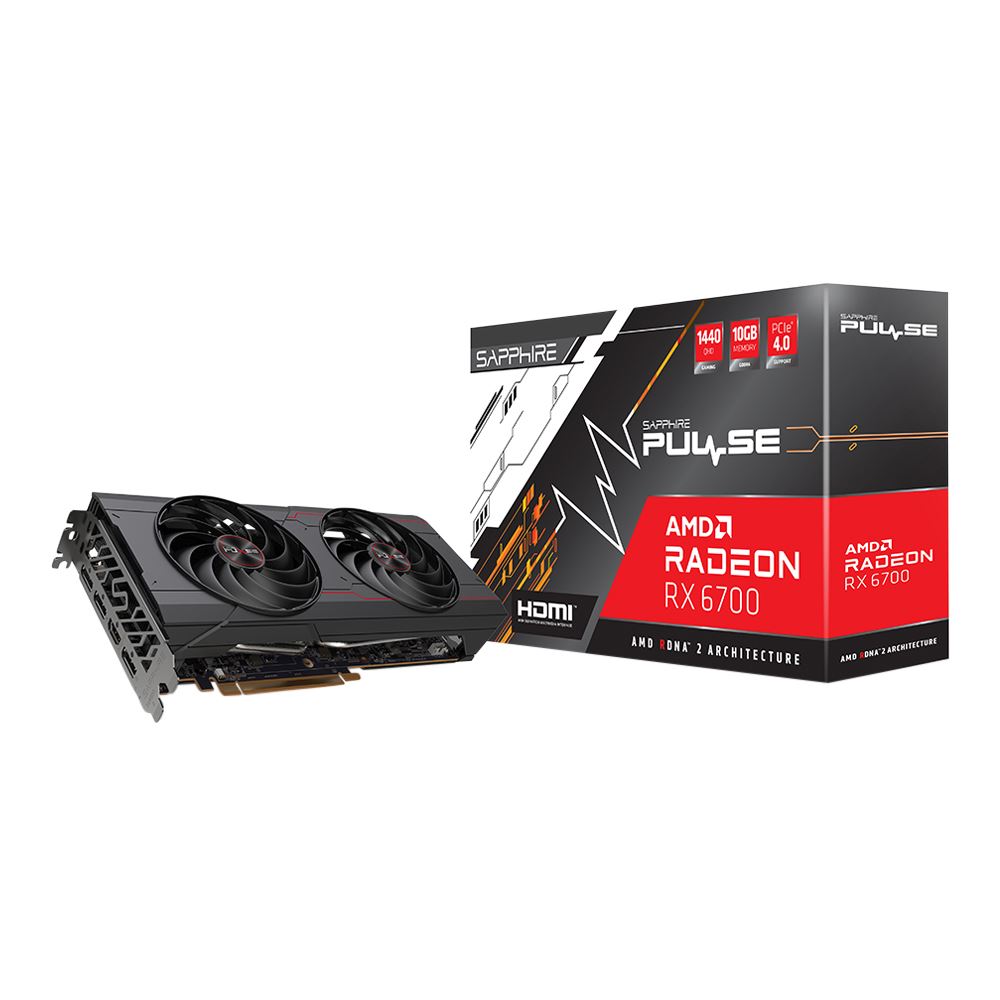

Sapphire Pulse AMD Radeon RX 6700 Gaming OC 10GB GDDR6 Graphics Card

Sapphire Pulse AMD Radeon RX 6700 Gaming OC 10GB GDDR6 Graphics Card

SAPPHIRE PULSE AMD Radeon RX 6700
The SAPPHIRE PULSE AMD Radeon RX 6700 Graphics Card runs on the powerful Dual-X Cooling Technology coupled with Intelligent Fan Control to keep temperatures low and fan noise low. The refined PCB design delivers stable, reliable, and steady performance, which efficiently lowers PCB temperature and component signal noise.

THE ULTIMATE GAME CHANGER
Powerhouse Performance for 4K Gaming
Every game.
Every frame.

GPU
AMD Radeon RX 6700 Graphics Card
7nm GPU
AMD RDNA 2 Architecture

Engine Clock
Boost Clock: Up to 2495 MHz
Game Clock: Up to 2330 MHz
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors
2304

Infinity Cache
80MB

Ray Accelerators
36

Memory Size/Bus
10GB GDDR6

Memory Clock
16 Gbps Effective

Displays
Maximum 4 Displays

Resolution
HDMI: 7680x4320
DisplayPort1.4: 7680x4320

Interface
PCI-Express 4.0 x16

Output
1x HDMI
3x DisplayPort

BIOS Support
UEFI

Game Index
4K

Sapphire Features
Premium Digital Power Design
Fuse Protection
Dual-X Cooling Technology
Intelligent Fan Control
Precision Fan Control

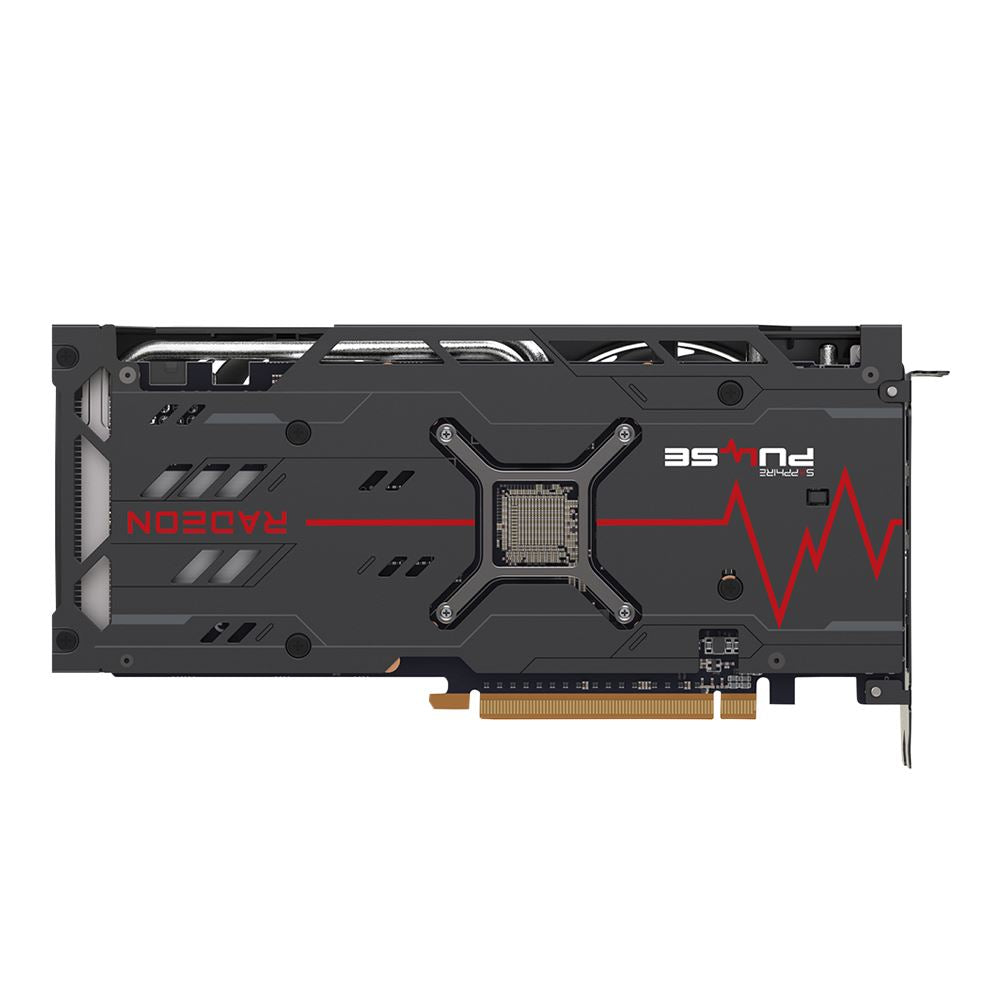

Metal Backplate
Two-Ball Bearing Fans
Integrated Cooling Module
TriXX Supported
TriXX Boost

AMD Features
AMD RDNA 2 Gaming Architecture
DirectX 12 Ultimate
Hardware Raytracing
Smart Access Memory
Infinity Cache
7nm GPU
PCI Express 4.0 Support
AMD FreeSync Technology
DisplayPort 1.4 with DSC
HDMI 2.1 VRR
Video Streaming up to 8K
Radeon VR Ready Premium
AMD FidelityFX
Radeon Image Sharpening
Radeon Anti-Lag
Radeon Software
Game Driver Optimizations

Cooling
Dual Fans

Form Factor
2.2 slot, ATX
Dimension: 260(L)X 119.85(W)X 49(H)mm

Power Consumption
220W (Board Power)

OS
Linux, Windows 7 and Windows 10/11, 64-bit operating system required
Does not support all features including but not limited to Hardware Raytracing

System Requirement
Minimum 650 Watt Power Supply
1 x 8-pin Power Connector.
PCI Express based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

MPN

11321-02-20G

EAN

4895106292826

UPC

840777088135

Warranty

Parts

3 Years Limited

Labor

3 Years Limited
